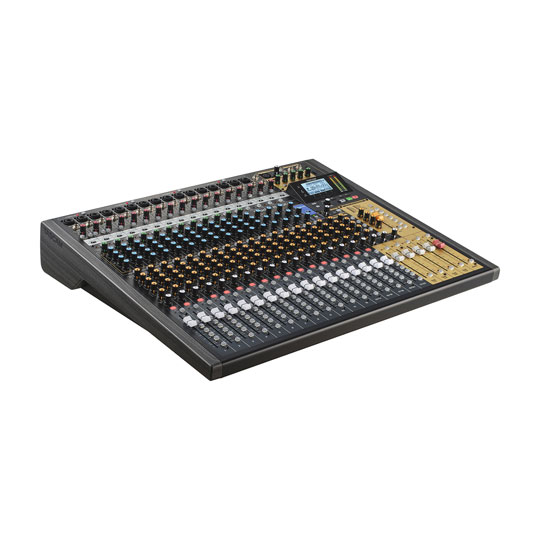

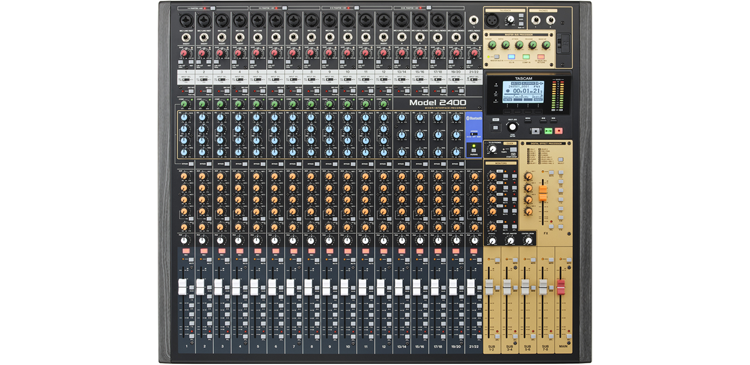

Tascam Model 2400 24-Channel Analogue Recording Console
Tascam - Model 2400, 24-Channel/22-input Analogue Console with 24-channel Multitrack Recorder
24-Track Analogue Recording Console with Audio Interface
Tascam - MODEL 2400
The 24-Track Flagship Recording Console22 channels, 24 tracks, one solution – from performance to recording, Model 2400 redefines what you can do with a studio recording and live mixing console. With more Aux sends, four stereo subgroups, MIDI/MTC and many more advanced features, the Model 2400 is the new flagship of the Tascam Model series.
Streamline Your Mix Process with Advanced Onboard ProcessingThe versatility of the Model 2400 doesn’t affect its mixing capabilities in the slightest. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you’ll have the pro-level mix control you need in any scenario.
Taking your project from tracking to a final master on the Model 2400 couldn’t be simpler.
at a glance
• 24-Track Live & Recording Mixer
• 24-Track Recorder with SDXC Recording
• 24-In / 22-Out USB Audio Interface
• Punch In and Punch Out Supported
• 22 Inputs with 12 XLR HDDA Mic Preamps
• 5 Aux Sends and 4 Stereo Sub Groups
• MIDI I/O with Sync and 1/4" Click Output
• 12 Inserts and Stereo Master Inserts
• DAW Transport and REC FUNC Controls
• Meter Bridge Screen and Settings via App
22 Channels and 24 Tracks, One Solution
unmatched versatilityWith comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.
Insert Professional Processors and EffectsInsert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.
Features We Loved!
Ample Aux and Sub OutputsWith 5 Aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes.
Professional Recording CapabilitiesModel 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 tracks (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if you’re a DAW-less producer.
The Finer Details
Seamless DAW Integration and Transport ControlThe Model 2400 streamlines your workflow even when you’re using it in a typical studio environment with a computer-based DAW.
Sound With
ExcitementTascam Ultra HDDA (High-Definition Discrete Architecture) mic preamps give Model 2400 the vibrant.
Monitor Your Signal
VirtuallyWith the Meter Bridge app, users can take advantage of a digital meter bridge across all channels.
Model 2400 24-Track Analogue Recording Console
Live Mixer, and Audio Interface
The Tech Spec
| Features | Specification | Type | Analogue Mixer |
|---|---|
| Channels | 24 |
| Computer Connectivity | USB (24 x 22) |
| Faders | 23 |
| Inputs - Mic Preamps | 16 |
| Inputs - Line | 16 x XLR-1/4" combo, 18 x 1/4" (line) |
| Outputs - Main | 2 x XLR (main), 2 x 1/4" (send), 2 x 1/4" (control room) |
| Outputs - Direct | 8 x 1/4" TRS (sub) |
| Outputs - Other | 5 x 1/4" (aux) |
| Headphones | 2 x 1/4" TRS |
| USB | 1 x Type B |
| MIDI I/O | In |
| USB | 1 x Type B |
| MIDI I/O | In/Out |
| OS Requirements - Mac | macOS 13 or later, iOS 16 or later |
| OS Requirements - PC | Windows 10 or later |
| Power Source | Standard IEC AC Cable |
| Height | 5.22" |
| Width | 26.79" |
| Depth | 22.36" |
