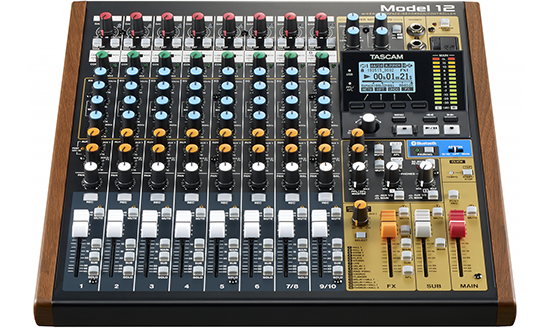

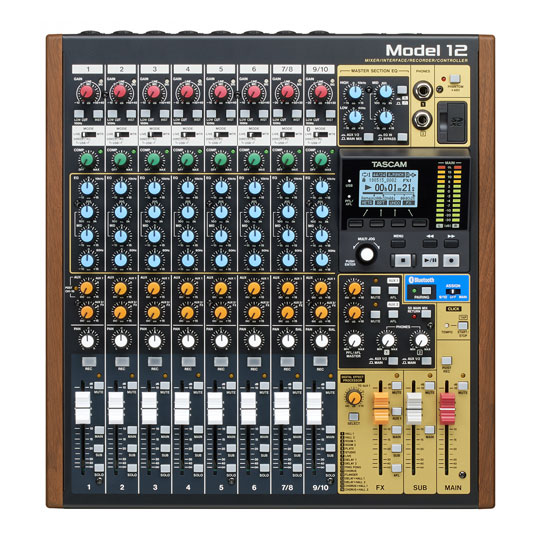

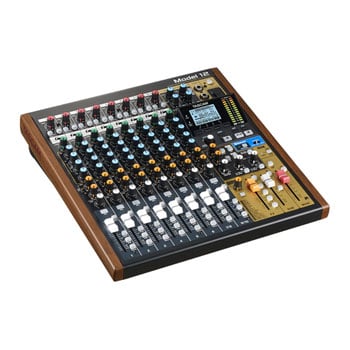

Model 12 All-in-One Integrated Production Suite from Tascam
Mixer, Interface, Recorder, Controller This is the compact and affordable Model 12 from Tascam, it supports your creative process from start to finish in a compact all-in-one integrated mixing and recording suite designed for music and multimedia creators, songwriters and performers. It consists of a 10-input mixer, a 12-track version of the highly acclaimed Tascam multi-track audio recorder, USB audio interface, MIDI connectivity, DAW control functions, and unique podcasting capability including mix-minus and smartphone input. Combining the feel of an analogue user interface with the efficient workflow and pristine quality associated with digital recording and production.

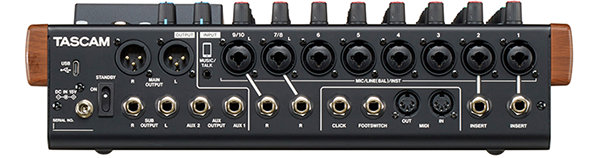

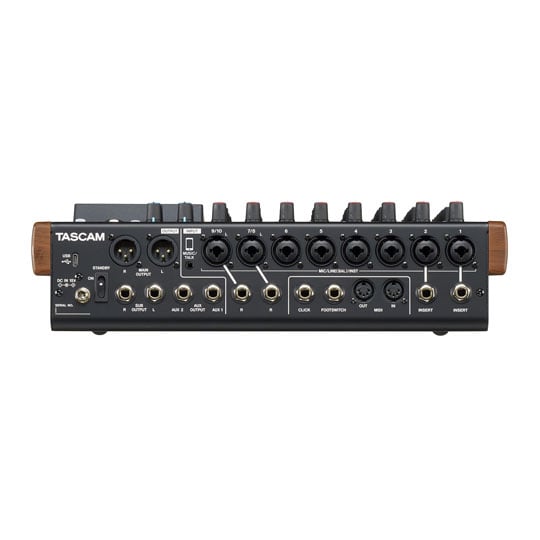

All the Connections you Need
Compact Size With Plenty of InputsThe compact Model 12 packs eight XLR microphone inputs (with switchable +48V phantom power), ten TRS line inputs, a 3.5-mm TRRS input (for a smartphone) and a Bluetooth 5.0 input to handle any small-format recording or live production environment.
The Model 12 also offers two independant headphone busses with output jacks on the top panel to allow monitoring of two discrete mixes from AUX 1/2 and/or the main stereo bus simultaneously for performers and engineers alike.
12-Track Recording and 10-Track Playback
A full-featured recorder The Model 12’s intuitive internal 12-track recorder creates WAV files of up to 24-bit/48 kHz audio quality directly to an SD card. Up to ten tracks can be played back simultaneously. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported from another Tascam Model Series mixer. And, of course, it is possible to export tracks in WAV file format which can then be imported directly into a DAW for further editing or production.
12 In / 10 Out USB Audio Interface for DAW Connectivity
DAW Control IntegrationA USB connector facilitates connecting a computer to the Model 12 for playback and recording utilizing a wide range of popular DAWs. Sounds can be recorded in a DAW to create precise and original tracks, and then played back during live performances using Model 12 only. The USB audio interface can be used simultaneously with the built-in multi-track recorder. Model 12 also supports class compliant mode and can be connected to Apple iOS devices using an optional adapter.
Click Output with Tap Tempo Feature
Control and monitor in both live or recording environments A dedicated click output with TAP TEMPO allows the tempo to be controlled and monitored in both live or recording environments. This allows live performers to play with tracks using the built-in multi-track engine or music creators to keep track of the tempo when recording. The click sound can also be assigned to each MAIN, SUB or AUX output, or, with individual volume setting, to headphones outputs 1 and 2.

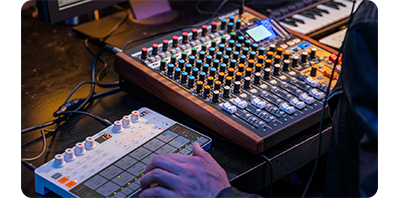

Combine your Setup with MIDI Equipment
synchronize your devicesStandard MIDI input and output make it possible to use keyboards, drum machines, controllers, and other sources that employ MIDI technology with the Model 12. This also allows playback-start commands to be triggered or external multi-track recorders and other external MIDI devices to be synchronized.
Podcast your Latest Music and Live Performances
For your loyal fanbaseThe Model 12 incorporates several features for podcasting and internet streaming like mix-minus, smartphone input, multiple mic-ready channels, Bluetooth pairing, dual headphone monitoring, and internal multi-track recording. Use the Model 12 as a versatile live production recorder, USB audio interface and live streaming tool.
All-in-One Audio Production from Recording to Mastering

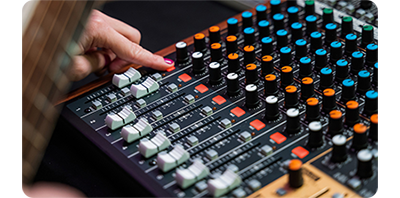

Perfect for the studioThe Model 12’s seamless integrated workflow facilitates less focus on the technical and more on the creative part. The built-in multi-track recorder allows one-button recording and playback. And the comfortable, familiar feel of the 60-mm faders, one-knob compressor, three-band EQ, and high-quality Tascam effects enable fast and intuitive tweaking of mixes and tones.
Pristine Audio Quality
High Quality PreampsTascam Ultra-HDDA mic preamps with an Equivalent Input Noise (EIN) of –128 dB ensure low noise and natural, high-grade sound quality. Apart from microphones and line-level sources, all inputs can also be used for direct connection of guitars, basses, and other high-impedance (Hi-Z) sound sources.

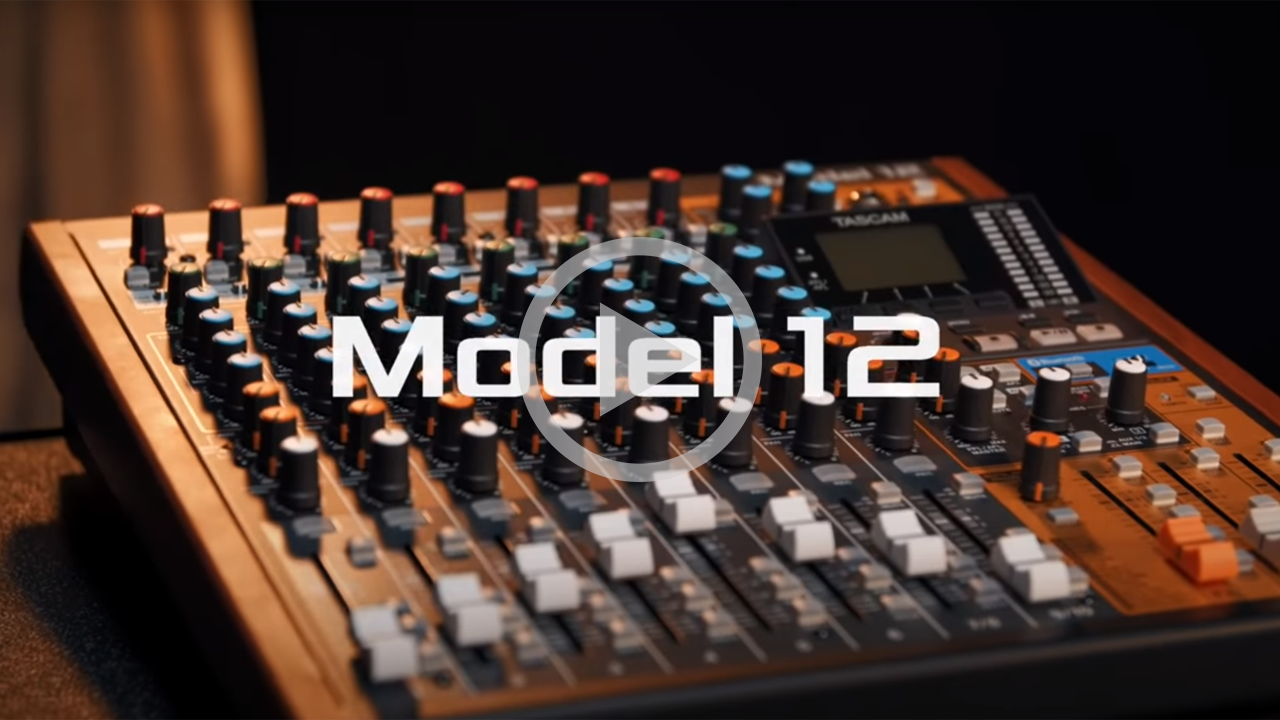

Model 12 - Desktop Tool for Music and Multimedia Creators
A complete production suiteCombining the feel of an analogue user interface with the efficient workflow and pristine quality associated with digital recording and production, the compact and affordable Model 12 supports your creative process from start to finish.
The Tech Spec
| Recorder | Recording Media | SD (512 MB – 2 GB) SDHC (4–32 GB) SDXC (64–128 GB) Class 10 or higher required |
|---|---|
| File System | FAT16 (SD) FAT32 (SDHC) exFAT (SDXC) |
| Recording File Format | WAV (BWF, maximum file size: 2 GB) |
| Playback Formats | WAV (BWF) |
| Sampling Frequency | 44.1 kHz, 48 kHz |
| Bit Depth | 16 bit, 24 bit |
| Recordable Channels | 12 channels max. (10 inputs + stereo mix) |
| Audio Inputs and Outputs | |
| Microphone Inputs (CH 1–6, 7/8, 9/10) |
XLR-3-31, Balanced |
| Nominal Input Level | –8 dBu |
| Maximum Input level | +10 dBu |
| Minimum Input Level | –58 dBu |
| Gain Adjustable Range | 0–50 dB |
| Input Impedance | 1.8 kΩ |
| Line Inputs (CH 1–10) | 6.3-mm TRS phone jack, Balanced |
| Nominal Input Level | +4 dBu |
| Maximum Input Level | +22 dBu |
| Input Impedance | 22 kΩ |
| Instrument Inputs (CH 1–6, 7, 9) |
6.3-mm TS phone jack, Unbalanced |
| Nominal Input Level | 2–4.2 dBV |
| Maximum Input Level | +13.8 dBV |
| Input Impedance | 1 MΩ |
| Inserts (CH 1–2) | 6.3-mm TRS Phone Jack |
| Nominal Input Level | 0 dBu |
| Maximum Input Level | +18 dBu |
| Input Impedance | 5 kΩ |
| Main Output | XLR-3-32, Balanced |
| Nominal Output Level | +4 dBu |
| Maximum Output Level | +22 dBu |
| Output Impedance | 200 Ω |
| Phones Output 1/2 | 6.3-mm Stereo Phone Jack |
| Maximum Output Power | 45 mW + 45 mW (at 32 Ω) |
| Channel EQ | |
| Low Cut | 100 Hz, –12 dB/Oct |
| High (shelving) | 10 kHz, ±15 dB |
| Mid (peaking) | Variable 100 Hz to 8 kHz ±15 dB (Mono) Fixed 600 Hz ±15 dB (Stereo) Q = 0.5 |
| Low (shelving) | 80 Hz, ±15 dB |
| Audio Performance | |
| Residual Output Noise | –103 dBu |
| Equivalent Input Noise (EIN) | –128 dBu |
| Total Harmonic Distortion (THD+N) | <0.003 % |
| Frequency Response | 20 Hz to 20 kHz, +0.1/–0.15 dB |
| Channel Crosstalk | –95 dB |
| Maximum Gain | 74 dB (MIC to MAIN OUT) 50 dB (MIC to INSERT OUT) 74 dB (MIC to SUB OUT) 75 dB (MIC to AUX 1/2 OUT) 24 dB (USB/SD to MAIN OUT) |
| Phantom Power | DC 48 V |
