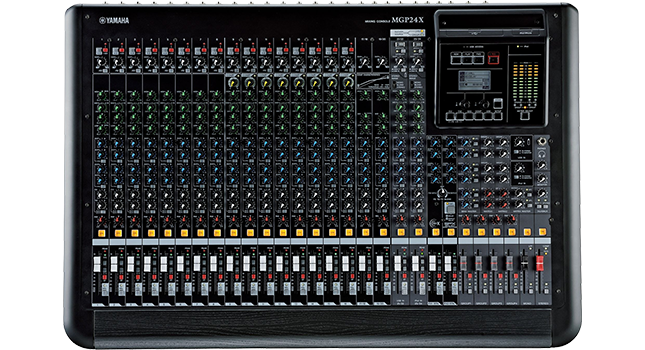

Yamaha - MGP24X Mixing Console

Yamaha - MGP24X 24-Channel Premium Mixing Console, 16 Mic Inputs, 24 Line Input, 48V Phantom Power, 6 AUX Sends

Thumbnail 1 : Yamaha - MGP24X Mixing Console Thumbnail 2 : Yamaha - MGP24X Mixing Console Thumbnail 3 : Yamaha - MGP24X Mixing Console
Scan code: LN125511 Manufacturer code: Mgp-24x
Call for price
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

24-Channel Premium Mixing Console
Yamaha - MGP24X

Yamaha MGP24X

Digital Heart. Analogue Soul.40 years ago Yamaha released their first professional analogue mixing console in 1972, the PM200. It has also been 25 years since the landmark release of their first ever digital mixer, the DMP7. It isnt a coincidence that, during this momentous occasion, Yamaha are introducing a ground-breaking new product that represents a new standard for compact professional mixing consoles: the MGP Series.

Inspired by decades of experience crafting innovative, premium analogue gear, Yamaha originally developed new discrete Class-A microphone preamps for professional use in their high-end recording equipment. Utilizing an inverted Darlington circuit design, the newly-refined D-PRE mic preamps provide a huge, rich, smooth tone that gives the MGP Series a significant advantage over any other mixer in its class. With Yamaha's proprietary X-pressive EQ they managed to capture ultimate analogue authenticity by unlocking the mysterious secret behind the expressive sound shaping capabilities of renowned classic EQ modules.

At the core of the MGP's compact configuration, an innovative new approach to the utilization of digital technology in an analogue mixer has been used by adding high-resolution effects, iPod/iPhone integration and the superior functionality of the new Stereo Hybrid Channel to the warmth and musicality of premium analogue sound. The MGP Series represents the ultimate balance of the converging technologies that are the heart and soul of Yamaha's extraordinary achievements in professional audio.

16Mic Inputs

20Hz - 20kHzFrequency Response

24Line Inputs

at a glance • 16 Mic Inputs with 48V Phantom Power and HPF per Channel
• 24 Line Inputs (16 mono and 4 stereo)
• 6 AUX Sends + 2 FX Sends
• 4 GROUP Buses + ST Bus
• 2 Matrix out
• 1 Mono out

Character & Quality

D-PRE

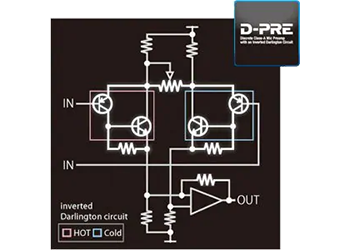

D-PRESound creation starts at the preamp which ultimately determines the character and quality of your entire mix. The importance of this critical first step influenced Yamaha to design the most rich and warm sounding preamps possible, resulting in the newly refined D-PRE mic preamps. Originally intended for use with Yamaha's high-end recording gear, these studio-grade, discrete Class-A mic preamps use an inverted Darlington circuit design that features multiple circuitry elements in a multi-layered configuration in order to deliver more power with lower impedance.

This means all the character, depth and feel of your original signal will be delivered with huge, natural sounding bass and smooth, soaring highs. Rediscover a favourite mic or trusted instrument by capturing the full range of your musical expression with sound that you don't hear, so much as feel. Featuring 48V phantom power for each channel and a sound that is incomparable in a compact mixer today, these studio-grade discrete Class-A mic preamps set the MGP apart, creating a class of its own.

Powerful Sound-Shaping

X-pressive EQ

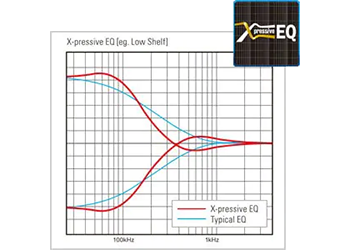

X-pressive EQEveryone knows vintage EQ sounds great, but not everyone knows why. Throughout the development of the innovative VCM (Virtual Circuit Modeling) effects used in high-end professional digital mixers, Yamaha focused more on reproducing the warmth and musicality of classic vintage EQs. It was through the precise modeling of the original circuitry of some of the most sought-after EQ modules from the past that Yamaha discovered a characteristic “X-shape” of the frequency curves that was unique to these units, this ultimately proved essential to creating real vintage authenticity.

Rather than just a of tweaking your mix, the precise response and very steep shelving of the high and low frequencies make the X-pressive EQ a powerful sound-shaping tool that practically redefines the role that EQ plays in sound reinforcement. Never before has an audio engineer's contribution to the overall sound been so significant, with X-pressive EQ providing total control of every aspect of your sonic platform.

Enhanced Features

1-Knob Compressors

1-Knob CompressorsOriginally a Yamaha innovation, 1-knob compression is now a common feature on an increasing number of compact mixing consoles for good reason. These intelligent compressors add optimally set compression to a wide range of input sources with the touch of a single control, without the hassle of setting up and configuring complex outboard gear. The MGP features newly upgraded 1-knob compressors that have LED indicators, allowing you to visually monitor when the compression “kicks in” on each channel.

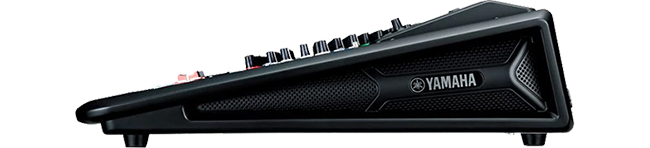

Integrated Rack Ears

Integrated Rack EarsWith integrated rack ears, the MGP easily meets the demands of both installed and portable applications offering safe, stable protection for your console. Incredibly durable, their sleek, attractive design instantly gives you the option of a rack-mounted or desk-top configuration, with hassle-free setup saving you time and effort.

Internal Universal Power Supply

Internal Universal Power SupplyWith confidence, you can plug in any region with 100V-240V power thanks to the highly-efficient internal universal power supply. With its multi-voltage design, the MGP ensures worry-free operation in potentially damaging environments with fluctuating power levels. An Internal power supply also makes rack mounting of the console at installed applications easy, without the use for a bulky adapter or additional connections.

A Revolution In Digital

Yamaha MGP24X

Intuitive OperationThe MGP is the result of a new approach towards the utilization of digital technologies in a mixer, providing easy, analogue-style control of sophisticated DSP functions. One of the most compelling features of analogue gear is the direct, hands-on, intuitive operation that joins the user with the console. The MGP sought to keep this feel consistent throughout the design to offer a vast functionality but with a simple, familiar interface.

Yamaha MGP24X

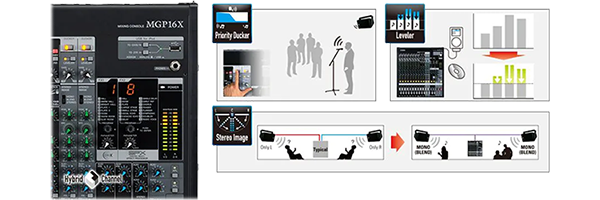

Hybrid Channel40 years of experience working with professional mixers has led Yamaha to offer a fresh way of approaching sound reinforcement in the digital age: the Stereo Hybrid Channel. Under the analogue-style knobs and encoders of MGP Series mixing consoles lies a sophisticated digital control system, a fusion that combines traditional analogue feel with the functionality that only digital technology can offer.

The MGP Series uses a powerful, proprietary DSP to provide three essential features that are staples of both installed and live sound applications. Keeping with the theme of analogue simplicity found throughout the MGP Series design, each of these functions is directly accessible and available at the touch of a button. Featuring a mid-sweep, three-band EQ for nuanced sound control and high-performance onboard A/D and D/A converters, the Stereo Hybrid Channel provides unique functionality with superior sound.

Dual Digital Effects

Dual Digital Effects

Colour Your SoundMGP Series mixing consoles come with two individual studio-grade effects processors for ultimate enhancement of your sound, with easy intuitive control. Yamaha's high-end REV-X reverb offers three very musical and natural high-resolution reverb effects including Hall, Room and Plate—a first for any Yamaha analogue mixer.

For more sound-shaping possibilities, Yamaha's renowned SPX digital multi-effect processor provides a useful selection of 16 advanced digital effects with editable parameters. Both processors can be used simultaneously, giving you a wide range of tools to colour your sound.

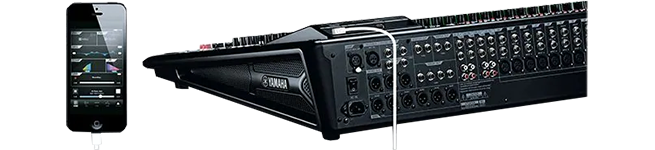

Digital Connectivity For iPod/iPhone

iPod/iPhone Connectivity

Integrate Your Apple DevicesIn response to the high demand for compatibility with iDevices, iPod/iPhone integration with the MGP offers much more than simple playback. A single connection allows your Apple device to be transformed into a flexible controller, giving you more detailed control of your MGP console.

MGP Editor is a free software application that gives you additional control of your console's DSP settings using your iPod/iPhone. With a simple and intuitive graphic display, MGP Editor gives you extra detailed control of your REV-X and SPX effects parameters, along with Hybrid Channel's Priority Ducker, Leveler and iPod/iPhone’s playback settings.

The MGP Series mixers feature a built-in USB port to connect and charge your iPod or iPhone for seamless playback with a single connection. A direct digital connection provides a much higher level of quality with more detail and clarity than typical analogue inputs can provide.

Yamaha MGP Series Mixing Consoles: MGP32X and MGP24X

The Tech Spec

Features Specification
Mixing channels 24 Line Inputs (16 mono and 4 stereo)
GROUP 4 GROUP Buses + ST Bus
AUX 6 AUX Sends + 2 FX Sends
MATRIX 1 Matrix out
On-board processors FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
Mic inputs MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power 48V phantom power per channel
Line inputs LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
Digital I/O USB Device, iPod / iPhone
Total harmonic distortion 0.02% ([email protected] +14dBu)
Frequency response +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Equivalent input noise -128 dBu Equivalent Input Noise
Residual output noise -92 dBu Residual Output Noise
Crosstalk -74dB @ 1kHz
Power requirements 100-240V 50Hz/60Hz
Power consumption 86W max
Dimensions Width: 819mm (32.2")
Height: 169mm (6.7")
Depth: 565mm (22.2")
Weight 15.5kg (34.2lb)
Specifications
Total Channels 24
Max Mic Inputs 16
Computer Interface
Mixer Type Digital
Computer Interface Channels 0
Total Aux Channels 6
Subgroups 0
Max Line Inputs 24
Analogue Insert Points No
Direct Channel Outputs 0
Internal FX Yes
Flying Faders No
