Dobot CR3AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology
Dobot CR3AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology
Scan code: LN170406 Manufacturer code: 1200000218
  • Thumbnail 1 : Dobot CR3AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology

Dobot CR3AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology

Dobot CR3AS Collaborative 6-Axis Robotic Arm, SafeSkin, Max Payload 5kg, 620mm Working Radius, Pre-Collision Sensing
MORE INFO
MORE INFO

Scan code: LN170406 Manufacturer code: 1200000218

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Suggested Alternatives

CR3AS Collaborative Robot Arm from DOBOT

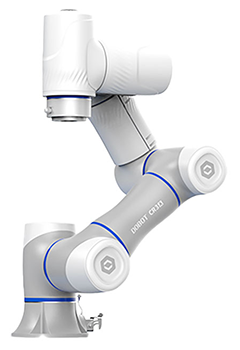

CR3AS Collaborative Robot Arm from DOBOT

Lightweight Cobot with SafeSkin The DOBOT CR3AS is a compact collaborative robot built for fast deployment in tight spaces, combining a 3 kg payload, 620 mm working radius, and 16.5 kg weight with SafeSkin pre-collision sensing for safer human-machine collaboration. Its design emphasizes precision, flexibility, and efficiency, with 0.02 mm repeatability, IP54 protection, and support for TCP/IP, Modbus, and Wi-Fi connectivity.

SafeSkin Innovative Pre-Collision Sensing Technology

CR3AS

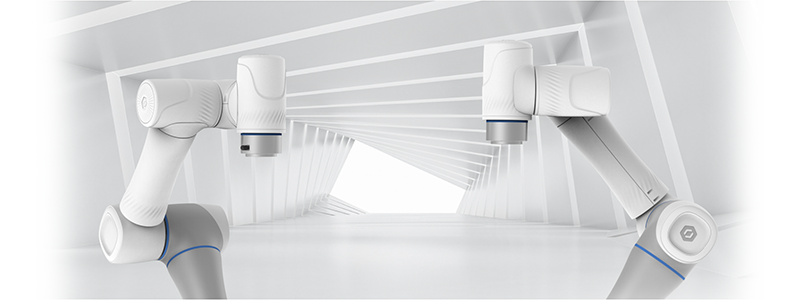

DOBOT Cobot key visual.

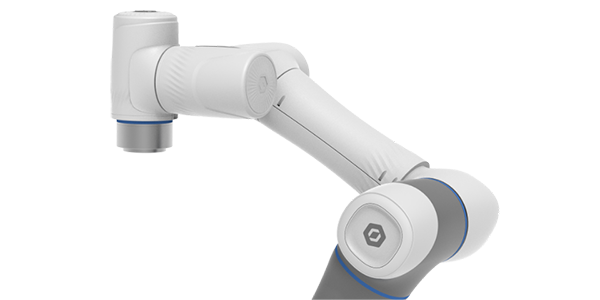

SafeSkin technology.

Safe Move Never Stop Dobot SafeSkin, the industry's first contactless pre-collision safety technology, is redefining safety standards in human-robot collaboration. This groundbreaking innovation sets a new benchmark, elevating cobot safety to unprecedented heights while empowering manufacturers to achieve faster production without compromising operator protection.

Application Scenarios

Loading and Unloading Scenario.

Loading and Unloading

Assembly Scenario.

Assembly

Bin Picking Scenario.

Bin Picking

Gluing Scenario.

Gluing

Quality Inspection Scenario.

Quality Inspection

Screwdriving Scenario.

Screwdriving

Transporting Scenario.

Transporting

Specifications
DOF 6
Safeskin Yes
Weight 16.5 Kg
Max. Payload 3 Kg
Working Radius 620 mm
Maximum Working Speed 2 m/s
Range of Motion (J1) ±360 °
Range of Motion (J2) ±360 °
Range of Motion (J3) ±155 °
Range of Motion (J4) ±360 °
Range of Motion (J5) ±360 °
Range of Motion (J6) ±360 °
Max. Working Speed (J1) 180 °/s
Max. Working Speed (J2) 180 °/s
Max. Working Speed (J3) 223 °/s
Max. Working Speed (J4) 223 °/s
Max. Working Speed (J5) 223 °/s
Max. Working Speed (J6) 223 °/s
Force Sensor (Range)
Force Sensor (Overload)
Force Sensor (Accuracy)
Force Sensor (Precision)
End Effector IO (DI) 2 Channels
End Effector IO (DO) 2 Channels
End Effector IO (AO) 2 Channels
Repeatability ±0.02 mm
IP Rating IP54
Temperature Range 0~50 °C
Power Consumption 120 W
Installation Method Any Angle
Cable Length (Robot-to-Control) 5 m
Material(s)
  • ABS Plastic
  • Aluminium Alloy
Additional Information
Scan Code LN170406
Model Number 1200000218
GTIN 0000
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
12 months
