Dobot CR5A Collaborative 6-Axis Robotic Arm
Dobot CR5A Collaborative 6-Axis Robotic Arm, Max Payload 5Kg, 900mm Working Radius
Email me when the availability or price changes
Finance this product
- From £342.16 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £303.09 / month (APR 15.9%)

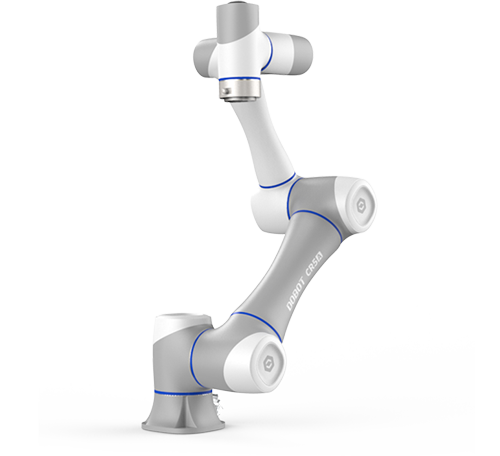

CR5A Collaborative 6-Axis Robotic Arm from DOBOT
for versatile industrial automation and research applications The Dobot CR5A is a high-performance 6-axis collaborative robot (cobot) designed to deliver precision, safety, and efficiency across industrial, research, and educational environments. With a 5 kg payload capacity and 1096 mm reach, the CR5A offers flexible automation for tasks such as assembly, packaging, testing, and machine tending. Its advanced motion control system ensures smooth, accurate operation, while built-in safety features enable seamless human-robot collaboration in shared workspaces. Easy to program through intuitive software and compatible with multiple end-effectors, the CR5A allows quick deployment without the need for complex coding. Whether integrated into a smart factory or used for STEM learning, the Dobot CR5A combines powerful performance with user-friendly design, making it an ideal solution for businesses and institutions embracing automation.
Collaborative Robot

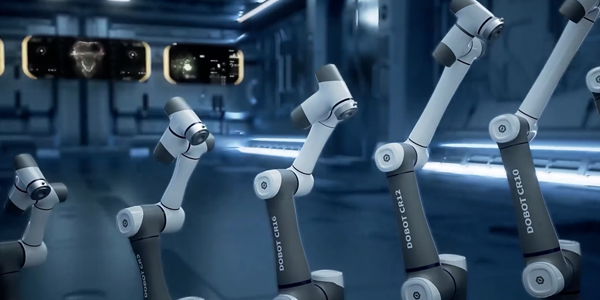

High Performance Flexible Cobot Building upon the safety, efficiency, flexibility, and ease of use of the CR series, the CR5A breaks through the payload limit to 5 kg, opening up a wider range of applications for collaborative robots. With a 900 mm working radius, the CR5A can meet the demands of heavy-duty picking, packing, palletizing and welding in the automotive, home appliances, logistics and metal processing industries.

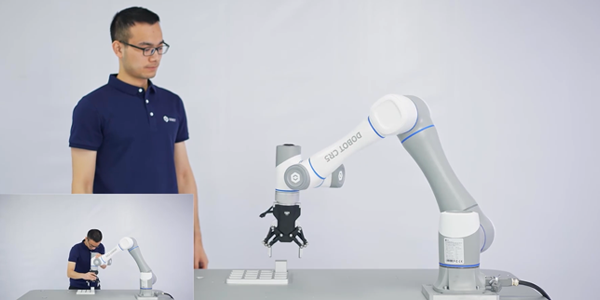

User-friendly Design for Faster Deployment The CR5A adopts an industry-first dual-channel end effector design, which can directly connect to multiple end tools. It also features a visual status indicator at the base for intuitive recognition of operating status.

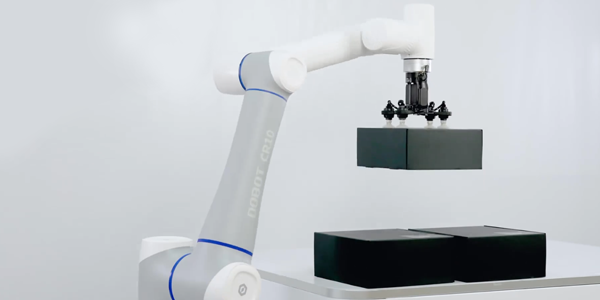

900mm Working Radius The CR5A has a working radius of 900 mm and a maximum payload of 5 kg. With advanced motion control algorithm, the CR5A operates more stably, with residual vibrations reduced by 50% during high-speed emergency stops.

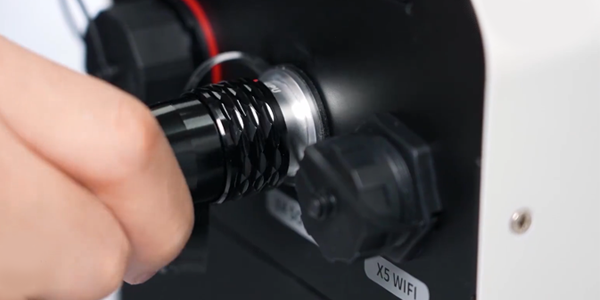

24 Interface Ports for Greater Flexibility The CR5A supports Profinet and Ethernet/IP communication protocols and connects seamlessly with PLC. It has 24 digital IO ports with industry leading support for PNP and NPN switching to expand applications with ease.

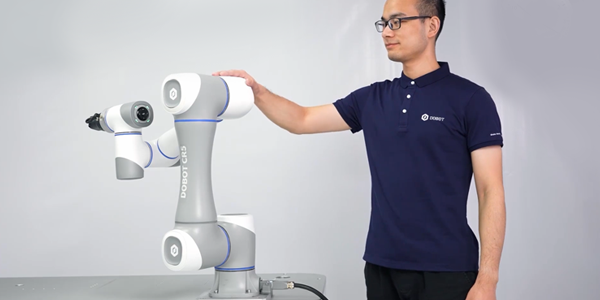

High Protection Level for Safer Collaboration The robot body and control box both achieve a high protection level of IP54. When overloaded, the robot will automatically sound an alarm. The CR5A also features an innovative electromagnetic brake protection, which reduces the end tool drop distance at power failure.
Application Scenarios
Loading and Unloading
Assembly
Bin Picking
Gluing
Quality Inspection
Screwdriving
Transporting
Welding
Polishing
