Dobot CR3A-DC Collaborative 6-Axis Robotic Arm
Dobot CR3A-DC Collaborative 6-Axis Robotic Arm, Max Payload 3Kg, 2m/s, 620mm Working Radius
Email me when the availability or price changes
Finance this product
- From £325.06 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £287.94 / month (APR 15.9%)

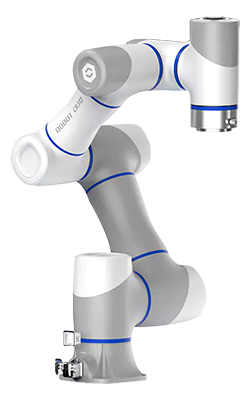

DOBOT CR3A Collaborative Robot from DOBOT
Safe, Flexible and Self-Learning The DOBOT CR3A collaborative robot arm features a maximum payload of 3kg and a working radius of 620mm. It is designed for heavy-duty tasks such as picking, packing, palletising, and welding across industries including automotive, home appliances, logistics, and metalworking. The CR3A is part of Dobot's next-generation CRA series, offering improved internal architecture for faster speeds, reduced vibration, and enhanced safety with electromagnetic braking and pressure sensors. It supports easy deployment and versatile applications with various end tools, controlled via an upgraded user-friendly interface and software. The system is quick to set up, typically operational within an hour.
Please note: Images are used for illustration purposes.
Performance
Safety
Scalability
Flexibility
About the CR3A

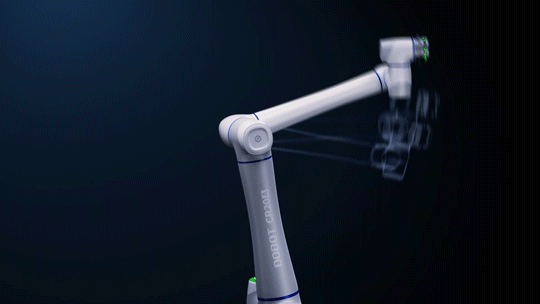

Collaborative Robot Expanding on the safety, efficiency, flexibility, and user-friendliness of the CR series, the CR3A increases the payload capacity to 3kg, enabling a broader scope of collaborative robot applications. Featuring a 620mm reach, the CR3A is well-suited for heavy-duty tasks like picking, packing, palletising, and welding across the automotive, home appliance, logistics, and metalworking sectors.

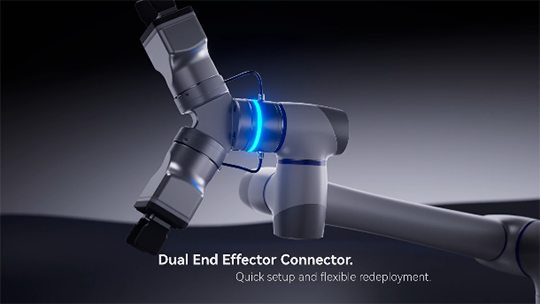

User-Friendly Design for Faster Deployment The CR3A features an industry-first dual-channel end effector design, allowing direct connection to multiple end tools. Additionally, it includes a visual status indicator on the base for easy and intuitive monitoring of its operating condition.
Versatile & Reliable Enhancing the safety, efficiency, flexibility, and ease of use found in the CR series, the CR3A raises the payload capacity to 3 kg, expanding its range of collaborative robot applications. With a 620 mm working radius, the CR3A is capable of handling demanding tasks such as heavy-duty picking, packing, palletising, and welding across automotive, home appliance, logistics, and metalworking industries.
24 Interface Ports for Greater Flexibility The CR3A is compatible with Profinet and Ethernet/IP communication protocols, allowing seamless integration with PLC systems. It offers 24 digital IO ports and industry-leading support for both PNP and NPN switching, making it easy to expand its range of applications.

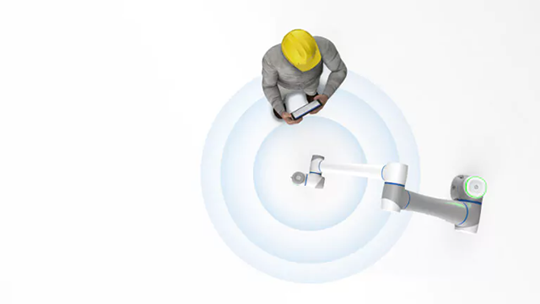

High Protection Level for Safer Collaboration Both the robot body and control box are rated IP54 for high-level protection. In case of overload, the robot triggers an automatic alarm. Additionally, the CR3A includes an innovative electromagnetic brake system that minimises end tool drop distance during power outages.
Application Scenarios
Assembly
Bin Picking
Gluing
Insertion
Loading and Unloading
Palletising
Transporting
Welding

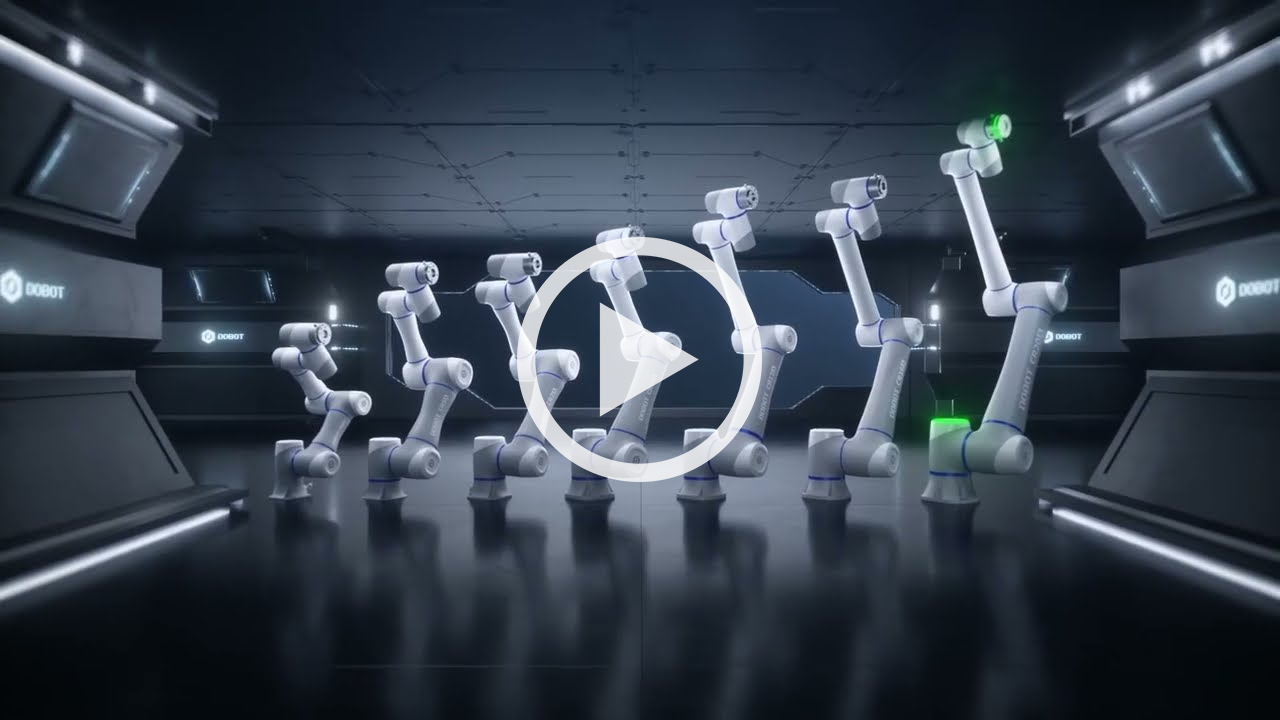

DOBOT CRA Series
