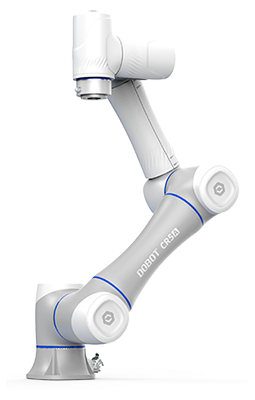

Dobot CR5AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology
Dobot CR5AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology
Scan code: LN164506 Manufacturer code: 1200000010
£13,520.48Item due on 15 August 2026
Due 15th Aug

Dobot CR5AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology

Dobot CR5AS Collaborative 6-Axis Robotic Arm, SafeSkin, Max Payload 5Kg, 900mm Working Radius, Pre-Collision Sensing

Scan code: LN164506 Manufacturer code: 1200000010
£13,520.48
Item due on 15 August 2026
Due 15th Aug

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £381.22 / month (APR 16.9%) for 48 months or 0% for 4 months
  • With a 10% deposit from just £337.70 / month (APR 15.9%)

Suggested Alternatives

CR5AS High Performance Cobot with SafeSkin from DOBOT

CR5AS Collaborative Robot from DOBOT

A Collaborative Robot The DOBOT CR5AS robotic arm offers high precision with ±0.02 mm repeatability and advanced safety features, including SafeSkin proximity and contact sensing for human-machine collaboration. With a 900 mm working radius, 5 kg payload, and rapid joint speeds, it simplifies automation with drag-to-teach functionality and multiple communication interfaces (TCP/IP, Modbus, Wi-Fi). Designed for efficiency and safety, it supports automation transformation for a smarter tomorrow.

CR5AS

Collaborative Robot

Banner of CR5AS
Safety

SafeSkin Innovative Pre-collision Sensing Technology Redefining safety in human-robot collaboration. The enhanced non-contact collision sensing enables pre-collision halting for superior protection. Crafted from soft, durable silicone with a wearable, all-in-one wrap design that delivers full 360° coverage for safer, smarter interaction.

Application Scenarios

Loading and Unloading

Loading and Unloading

Assembly

Assembly

Bin Picking

Bin Picking

Gluing

Gluing

Quality Inspection

Quality Inspection

Screwdriving

Screwdriving

Transporting

Transporting

Specifications
DOF 6
Safeskin Yes
Weight 25 Kg
Max. Payload 5 Kg
Working Radius 900 mm
Maximum Working Speed 4 m/s
Range of Motion (J1) ±360 °
Range of Motion (J2) ±360 °
Range of Motion (J3) ±160 °
Range of Motion (J4) ±360 °
Range of Motion (J5) ±360 °
Range of Motion (J6) ±360 °
Max. Working Speed (J1) 180 °/s
Max. Working Speed (J2) 180 °/s
Max. Working Speed (J3) 180 °/s
Max. Working Speed (J4) 223 °/s
Max. Working Speed (J5) 223 °/s
Max. Working Speed (J6) 223 °/s
Force Sensor (Range)
Force Sensor (Overload)
Force Sensor (Accuracy)
Force Sensor (Precision)
End Effector IO (DI) 2 Channels
End Effector IO (DO) 2 Channels
End Effector IO (AO) 2 Channels
Repeatability ±0.02 mm
IP Rating IP54
Temperature Range 0~50 °C
Power Consumption 150 W
Installation Method Any Angle
Cable Length (Robot-to-Control) 5 m
Material(s)
  • ABS Plastic
  • Aluminium Alloy
Additional Information
Scan Code LN164506
Model Number 1200000010
GTIN 0000
