DigiTech Mosaic Polyphonic 12-String Effect Pedal
DigiTech - Mosaic Polyphonic, 12-String Effect Pedal, Turn Any 6-String Into A 12-String
Polyphonic 12-String Effect Pedal
DigiTech - Mosaic
Turn any 6-string guitar into a 12-stringThe DigiTech Mosaic Polyphonic 12-String effect pedal allows you to create a lush 12-string sounds with either 6-string electric or amplified acoustic guitars. Immediately identifiable 12-string tones are now yours with octave low strings and doubled high strings. Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you. The Mosaic’s balanced low-end response with crisp octave shimmer creates a tone that’s lush and articulate, just as with a 12-string guitar.

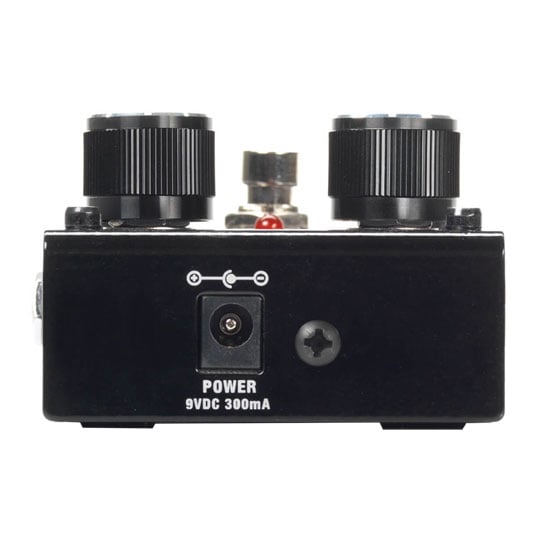

Tailor the Mosaic’s sound with the independent Level and Tone controls. The Level controls the 12-string effect intensity while Tone shapes the overall brightness of the effect. The Mosaic will give you a richer, more resonant and full tone than a standard six-string guitar. It is true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.
At A Glance
• Create a lush, shimmering chordal effect reminiscent of a 12-string guitar
• Single notes and full chordal strums shine with polyphonic richness
• Level Control to dial in the intensity of the effect
• Add or cut high frequencies with the tone control
• True bypass switching
The Tech Spec
| Features | Specification | Sample Rate | 44.1 kHz |
|---|---|
| Frequency Response | 20 Hz-11 kHz (Effect Enabled) |
| Signal To Noise Ratio | > -105 dB (A weighted); ref = max level, 22 kHz bandwidth |
| THD | 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain |
| A/D/A Conversion | 24 bit | Input | 1/4" Unbalanced (Tip-Sleeve) |
| Output | 1/4" Unbalanced (Tip-Sleeve) |
| Controls | Level, Tone |
| True Bypass | Yes. True bypass circuitry preserves your tone when the pedal is not in use. |
| Dimensions | Width: 2.875" (73mm) Height: 1.75" (44mm) Depth: 4.75" (120mm) |
| Weight | 0.36 lb. (163g) |
