FISHMAN TONE DEQ AFX PEDAL Preamp EQ

Product Overview We've mentioned before in our Blog, the importance of taking control of your own tone if you're an Acoustic Guitarist, because in truth, most soundmen just don't have the time to get you exactly the sound you're looking for.

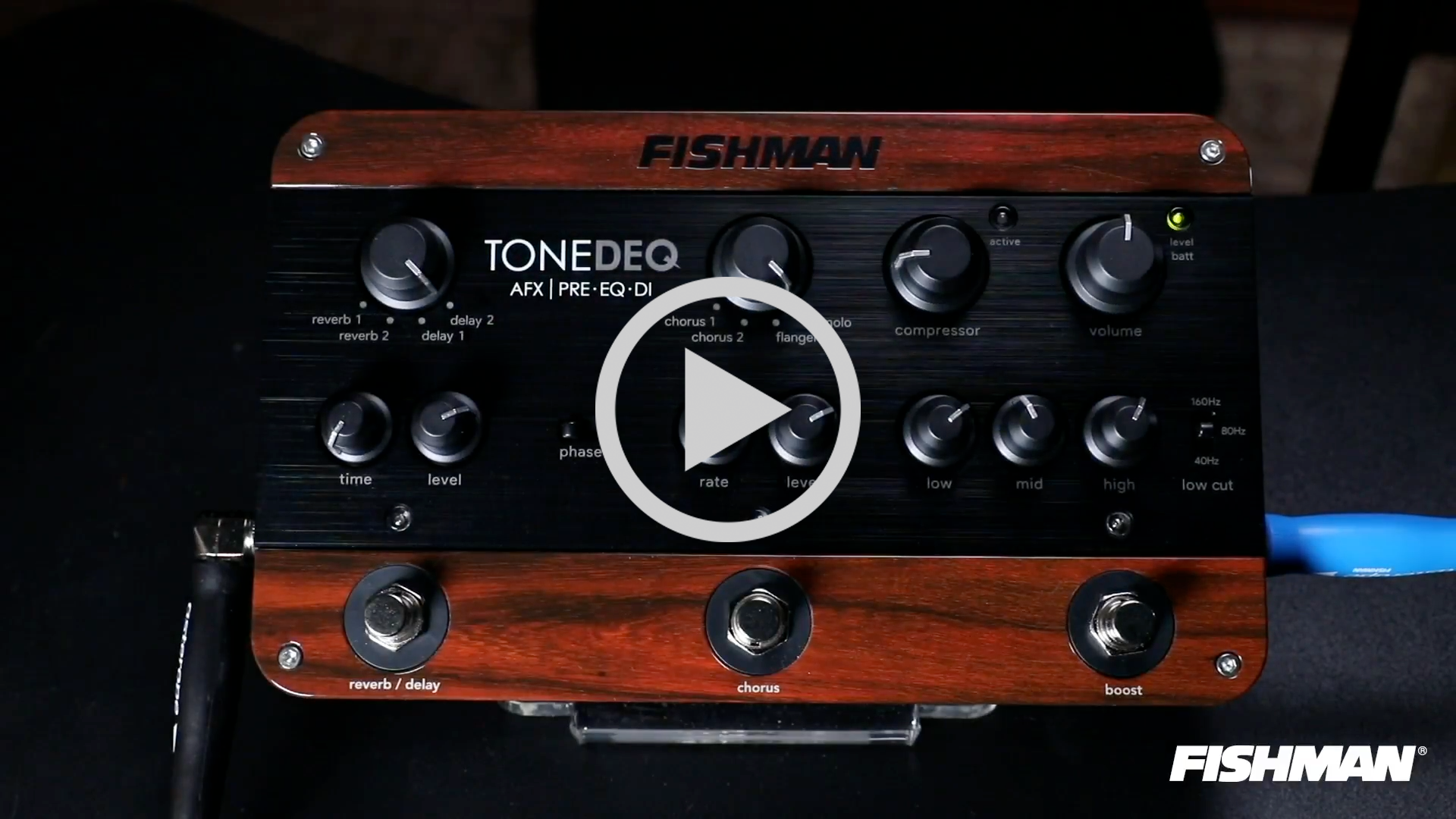

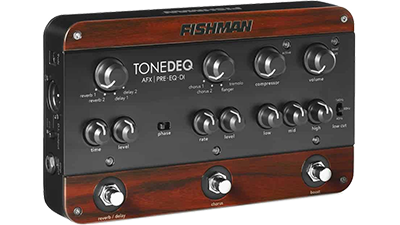

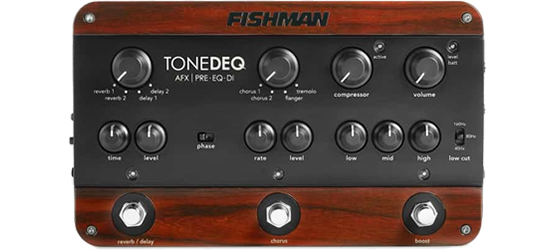

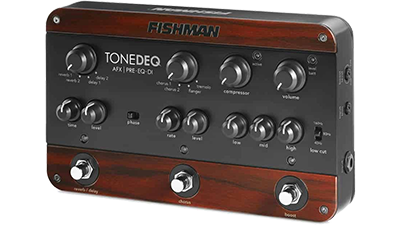

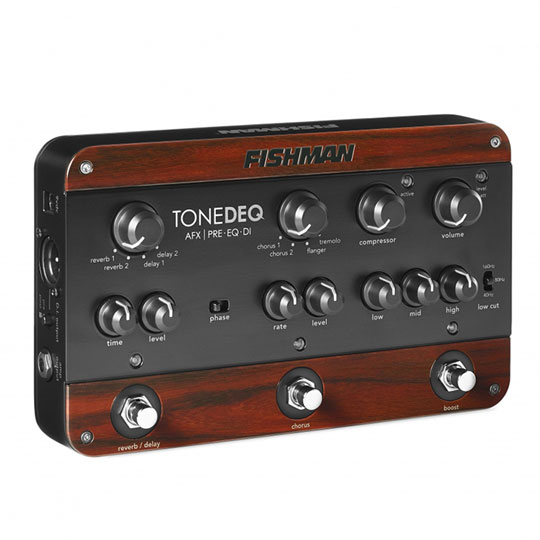

The Fishman ToneDEQ has a beautifully transparent sounding Class A preamp at its centre. It has a 3 band EQ with a Low Cut filter, a phase switch for eliminating feedback, a Pre or Post -EQ balanced DI with a ground lift, a switchable gain Boost and FX designed with the Acoustic Guitarist in mind (no Overdrives here!)
It has a balanced XLR output, with which you can send your signal directly to the Mixing desk and it features the classic Fishman compressor for smoothing out the peaks in your sound.
The effects include 2 X Chorus, 2 X Reverb, 2 x Delays, a Tremolo and a Flanger. All the effects come from the Fishman AFX range which use 24 bit A/D/A conversion and 32 bit processing for the ultimate in Sound Quality.
With the ToneDEQ, you'll be able to spend time working on your own sound, learning what works best for you, and finally being able to re-create it on stage or in the studio


The complete performance solution for the acoustic musician
With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced DI — it’s got everything you need in one box.

Pure Analog Circuitry
Its analog signal path goes from end to end – from preamp to output – to give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they don’t affect the purity of the your acoustic instrument.

Fully Balanced Stage DI
Flexible outputs include a 1/4 inch amplifier output and XLR DI output for the lowest noise possible. Plus the DI features automatic ground-lifting and selectable pre/post EQ settings.

Discrete Class A Preamp
With Fishman, you get quality discrete Class A signal conditioning created by the leader in instrument preamp design. The high impedance input is a must for any passive instrument pickup.

Advanced 4-Band EQ
Legendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low cut filter controls sub-bass effects produced by some passive pickup Features • Input: 10M Ohm, Discrete Class-A JFET design
• Audio: All-analog signal path with parallel digital effects
• Tone Control: 4-band EQ with Bass, Middle, Treble, and selectable Low Cut
• Dual Effects: Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo
• Dynamics: Soft-knee Compressor, Boost Footswitch (up to 9dB)
• Feedback Control: Selectable Phase Invert

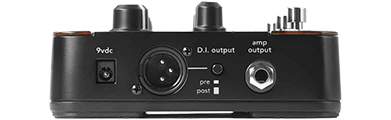

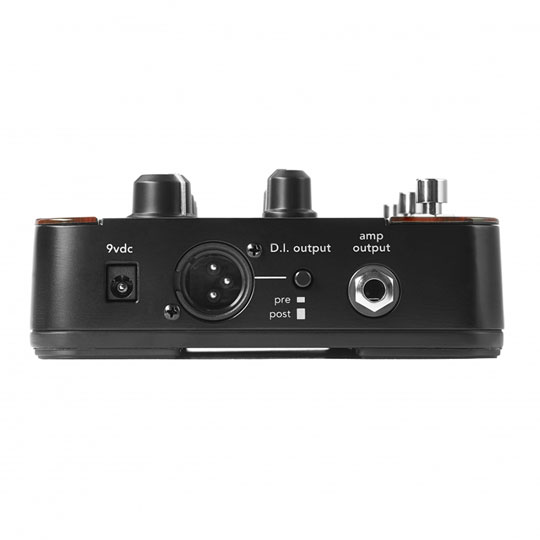

• Audio I/O: 1/4” mono instrument input, 1/4” amplifier output, balanced XLR DI output with pre/post routing

SPECS:
• Powered by 9-Volt battery (not included), or Fishman 910-R AC adapter (optional)
• Dimensions: 9.5”L x 5.36”W x 2.2”H (241mm) x (136mm) x (56mm)
