SWIT - '23.8" BM-245-NDI Professional NDI Monitor'

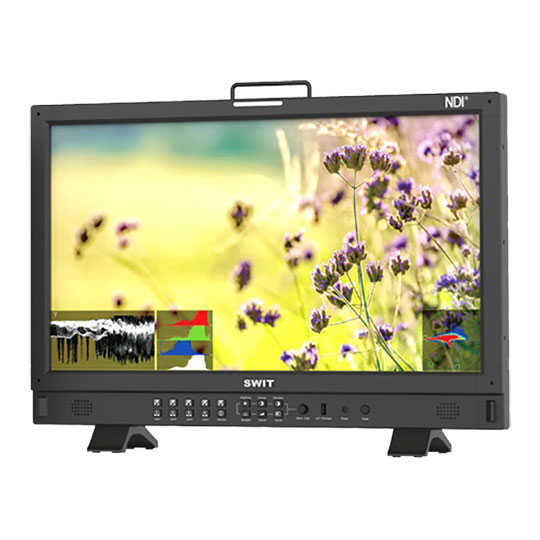

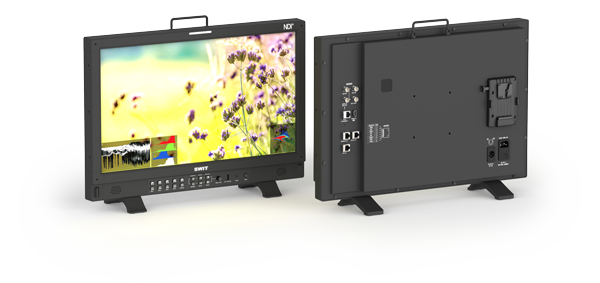

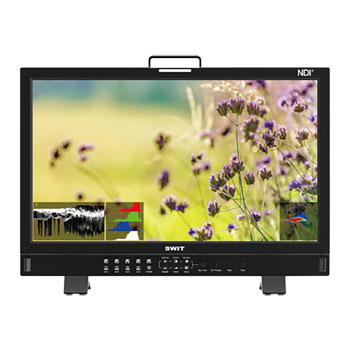

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

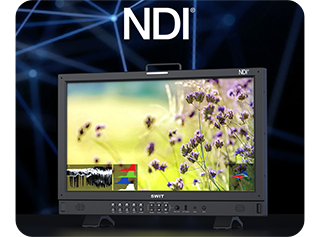

Professional NDI® MonitorThe SWIT BM-245-NDI monitor allows you to direct and control the visuals of your production with its 23.8” 1920x1080 QLED panel with video assist functionality. Combining 100% DCI-P3 coverage with high bandwidth 4K NDI® so you can monitor your feed remotely. NDI video is decoded to a 3G-SDI output and NDI Sources can be auto detected once the monitor is connected to the NDI network. Resolutions up to 4K DCI are supported by the HDMI and NDI inputs.

23.8-inch QLED WCG Panel

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

FHD 100% DCI-P3The SWIT BM-245-NDI monitor adopts a 23.8-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide colour gamut, 400nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.

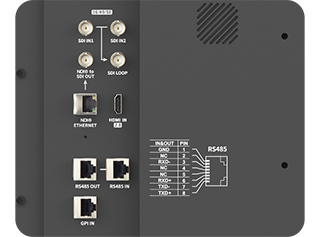

NDI®, SDI and HDMI 2.0

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

Professional ConnectivityBM-245-NDI monitor provides multiple inputs including:
• High bandwidth NDI® up to 4K
• 3GSDI input x2; Loop out x1
• NDI® decode to 3GSDI out x1
• HDMI 2.0 input x1

Section Title

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

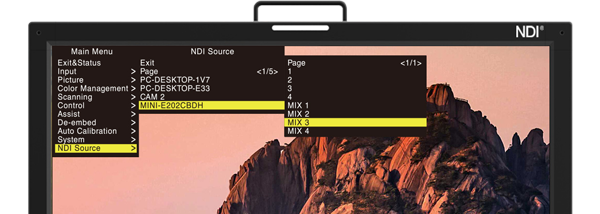

NDI® Sources SelectionAll NDI® sources will be auto detected when the monitor is connected to NDI® network, and quickly select NDI® sources from a list in monitor menu. The monitor supports Discover Server to pull NDI® sources from different IP segments, and support NDI® low bandwidth mode as well.

Picture-by-Picture & Picture-in-Picture Modes

Multiple Source Display ModesYou can select any 2 sources from NDI®, SDI or HDMI to display simultaneously in Picture-by-Picture mode or Picture-in-Picture mode.

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

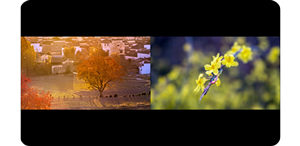

PBPSelect left/right source from NDI®, SDI or HDMI

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

PIPSelect main/window source from NDI®, SDI or HDMI

Built-in HDR Modes

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

HDR/SDR EOTFs and Colour Gamut SelectionBM-245-NDI provides HLG (Hybrid Log Gamma), Dolby Vision PQ, Sony S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Colour Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.

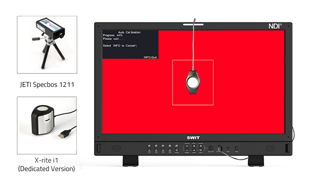

3DLUT Auto Self-Calibration

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

By X-rite i1 or JETI Specbos 1211The SWIT BM-245-NDI monitor adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide colour gamut, 400 nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.

VICO 1.97 Eye Protection

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

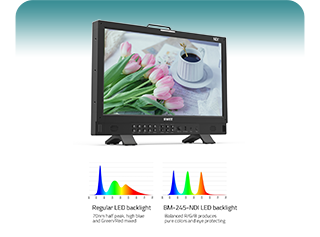

fatigue reducing displayBM-245-NDI QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.

The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.

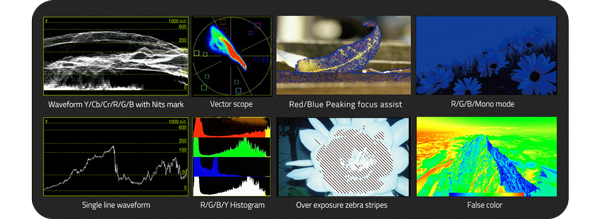

Multiple Video Analysis Patterns

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

Built-in Audio Meters

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

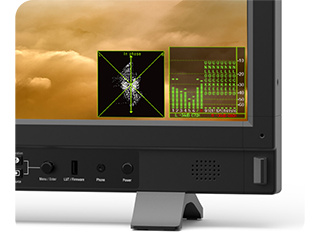

Audio PatternsBM-245-NDI monitor will de-embed 2-ch NDI audios; 8-ch HDMI audios; 16-ch SDI audios, display audio meters and Lissajous paterns, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.

Webserver IP Remote Control

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

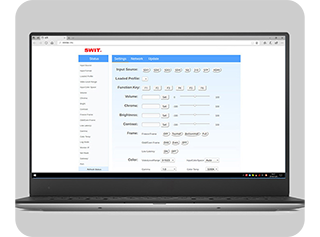

IP controlBM-245-NDI supports webserver remote control by Ethernet LAN connection. Use a computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

(Available in the future firmware update)

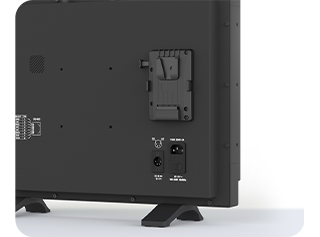

Three Power Options

SWIT 23.8 inch BM-245-NDI Professional NDI Monitor

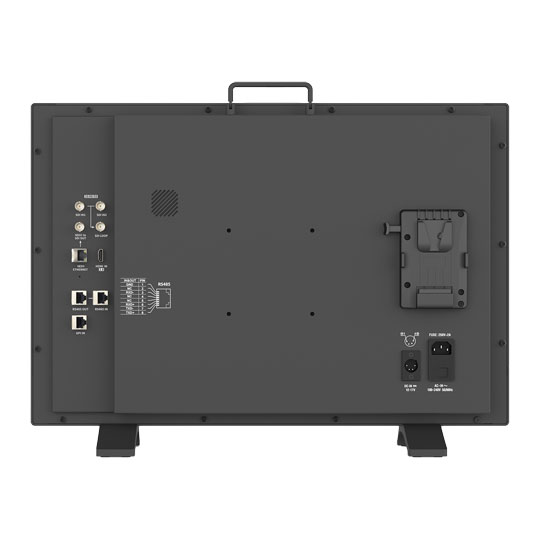

DC, AC and V-Mount Battery PowerBM-245-NDI consumes 45W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)

Specifications
Screen Size 23.8"
Edition BM-245-NDI
Panel Type LCD
Panel Coating
Panel Finish
Touchscreen No
Backlight LED
Pitch Size
Curvature N/A
Adaptive Frame-rate Technology N/A
NVIDIA Reflex No
HDCP No
Connectors
  • 1 x 3.5mm Audio Out
  • 2 x BNC In
  • 2 x BNC Out
  • 1 x HDMI 2.0
  • 1 x RJ45
Position Adjustment
Resolution 1920x1080 (Full HD)
Aspect Ratio 16:9
Max. Refresh Rate
Response Time
Brightness 400 cd/m²
Viewing Angle 178/178 (°H/°V)
Contrast Ratio/Dynamic Contrast Ratio 3000:1
Color Gamut 100% DCI-P3
Color Bit Depth 10bit (8bit+2FRC)
HDR Support Yes
Supported HDR Standards
  • Dolby Vision
  • HLG
Speakers No
Speaker Configuration
Web Camera No
Power Usage (Switched on) 45 W
VESA
3D Support No
Anti-Theft Features
Included Accessories
Monitor Colour Black
Dimensions (with stand) 530.6 x 364.3 x 74.2 (WxHxD)
Dimensions (without stand)
Weight (with Stand) 5.9 kg
