Datavideo TLM-170FR 17" ScopeView Production Monitor

Datavideo TLM-170FR, 1920x1080, UHD 4K/60p Input/Output, 300 cd/m2, 700:1, 12G-SDI/HDMI 2.0
MORE INFO
MORE INFO

Scan code: LN129410 Manufacturer code: DATA-TLM170FR
£2,140.99
Item currently awaiting an ETA
Pre Order
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £60.37 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £74.98
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £2,140.99
    Total inc. interest: £2,698.91
    Monthly Payment: £60.37
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £2,140.99
    Total inc. interest: £2,897.49
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £56.89 / month (APR 19.9%)

Suggested Alternatives

Datavideo - 'TLM-170FR 17" ScopeView Production Monitor'

Datavideo TLM-170FR 17 ScopeView Production Monitor

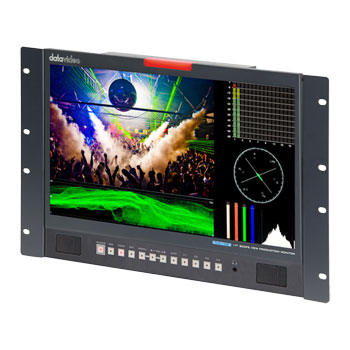

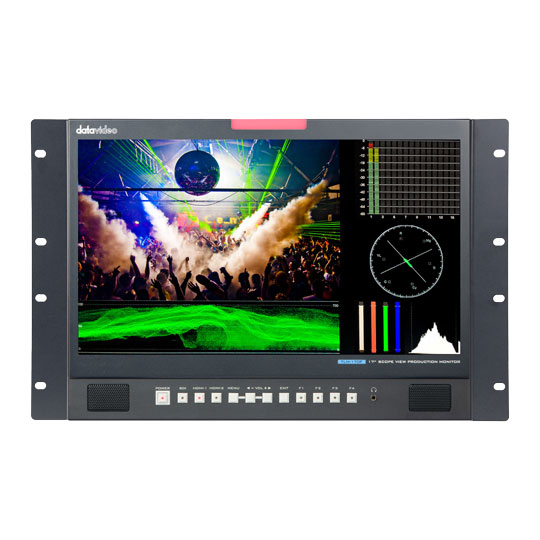

17.3" 4K UHD Rack Mount MonitorThe TLM-170FR is a rack mount 17-inch 4k UHD LCD monitor that includes a full HD 1920 x 1080px IPS panel. Featuring a brightness of 300 cd/m2, a 700:1 contrast ratio and a 178degree wide viewing angle for high end performance. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output. The TLM-170F monitor series come with a wide variety of professional and helpful monitoring features to assist your workflow, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more. Also supporting HDR for HLG and SMPTE 2084. The TLM170F series are the perfect fit for your broadcast and live production needs.

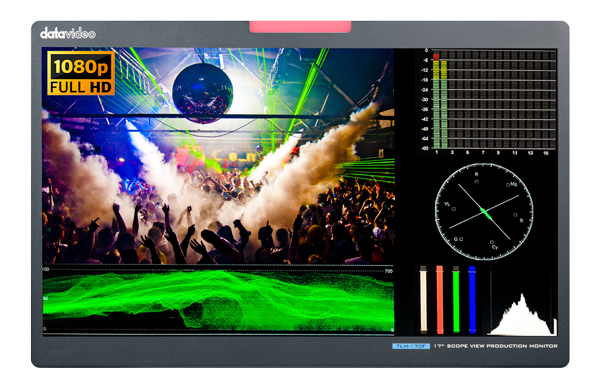

High Brightness And Contrast

Datavideo TLM-170FR 17 ScopeView Production Monitor

Rich and Natural ColourThe TLM-170FR series apply superior Full HD 1920 x 1080px IPS panel. The high brightness and high contrast panel provides rich colour, revealing subtle detail in bright highlights and dark shadow.

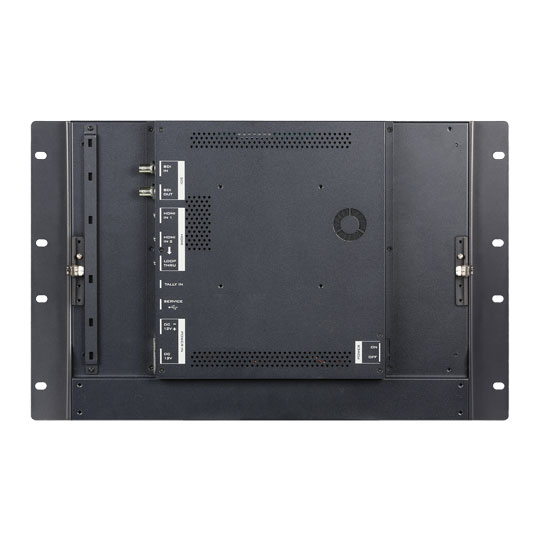

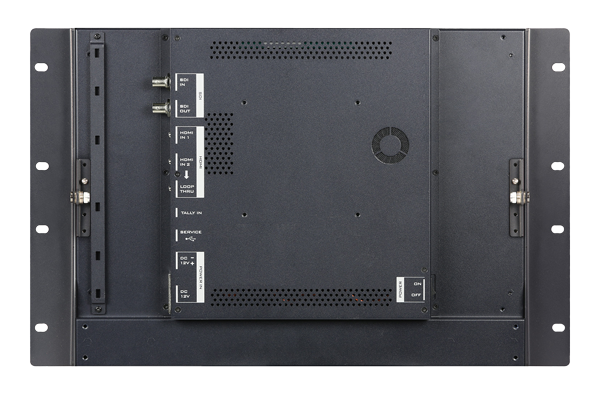

Supports Multiple Input and Output Configurations

Datavideo TLM-170FR 17 ScopeView Production Monitor

Inputs and Outputs: • 1 x 12G-SDI
• 2 x HDMI (HDMI 2.0) inputs
• 1 x 12G-SDI loop-through
• 1 x HDMI (HDMI 2.0) loop-through

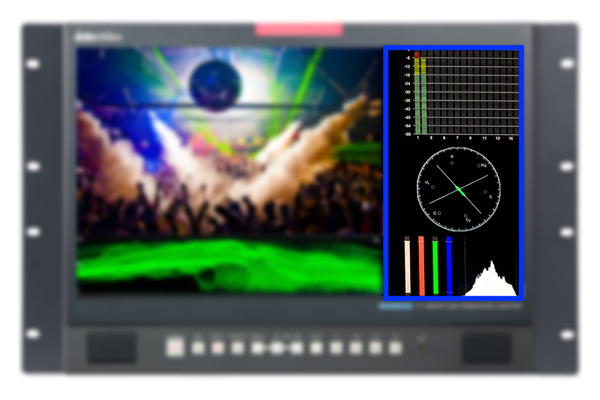

Various Built-In Functions

Datavideo TLM-170FR 17 ScopeView Production Monitor

FeaturesSupport column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.

Datavideo TLM-170FR 17 ScopeView Production Monitor

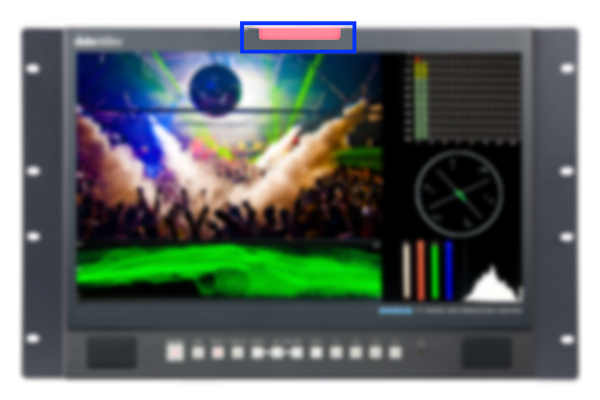

Tally LightTally light included. Best use for live production.

Specifications
Screen Size 17.3"
Edition TLM-170FR ScopeView Production Monitor
Panel Type IPS
Panel Coating
Panel Finish
Touchscreen
Backlight LED
Pitch Size
Curvature N/A
Adaptive Frame-rate Technology N/A
NVIDIA Reflex No
HDCP No
Connectors
  • 2 x 12G-SDI
  • 3 x HDMI 2.0
Position Adjustment
Resolution 1920x1080 (Full HD)
Aspect Ratio 16:9
Max. Refresh Rate
Response Time
Brightness 300 cd/m²
Viewing Angle 89/89 (°H/°V)
Contrast Ratio/Dynamic Contrast Ratio 700:1
Color Gamut
Color Bit Depth
HDR Support Yes
Supported HDR Standards HLG
Speakers Yes
Speaker Configuration 3W x2, Stereo
Web Camera No
Power Usage (Switched on) 34.6 W
VESA
3D Support No
Anti-Theft Features
Included Accessories 1 x Stand
Monitor Colour Black
Dimensions (with stand)
Dimensions (without stand) 403 x 305 x 37 (WxHxD)
Weight (with Stand) 4.7 kg
