Scan code: LN147440 Manufacturer code: HDL-SMTV4K12G3

Blackmagic SmartView 4K G3

Blackmagic Design SmartView 4K G3, 3840x2160, 1000:1 Contrast, 6RU Rack Mounting

Thumbnail 1 : Blackmagic SmartView 4K G3 Thumbnail 2 : Blackmagic SmartView 4K G3 Thumbnail 3 : Blackmagic SmartView 4K G3 Thumbnail 4 : Blackmagic SmartView 4K G3
Scan code: LN147440 Manufacturer code: HDL-SMTV4K12G3
£1,244.99Item due on 30 August 2024
Due 30th Aug
FREE DELIVERY ON YOUR ENTIRE BASKET
From £35.11 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £112.80
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,244.99
Total inc. interest: £1,353.50
Monthly Payment: £60.79
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,244.99
Total inc. interest: £1,458.98
Monthly Payment: £43.60
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,244.99
Total inc. interest: £1,569.43
Monthly Payment: £35.11
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,244.99
Total inc. interest: £1,684.82
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £33.08 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Blackmagic - 'SmartView 4K G3'

Blackmagic SmartView 4K G3

The Perfect Video Monitoring SolutionIntroducing the Blackmagic SmartView 4K G3, designed with the future of broadcasting in mind, this cutting-edge monitor boasts built-in optical and copper SMPTE-2110 IP video connections, allowing direct integration with IP-based broadcast systems. Equipped with two 12G-SDI inputs, it effortlessly links with an extensive array of professional video equipment. What sets it apart is its ability to output both 12G-SDI and 2110 video inputs through a 12G-SDI loop output connection. Housed in a lightweight machined aluminium chassis, the SmartView 4K G3 maintains its portability while delivering stunning visuals on its full-resolution Ultra HD LCD. Featuring on-screen overlays including focus peaking, framing guides, and safe area markers, it ensures precise monitoring and composition. With built-in 3D LUTs, it offers versatility in adding creative looks, converting log film gamma, or handling custom HDR profiles to elevate your monitoring experience.

The Perfect Video Monitoring Solution

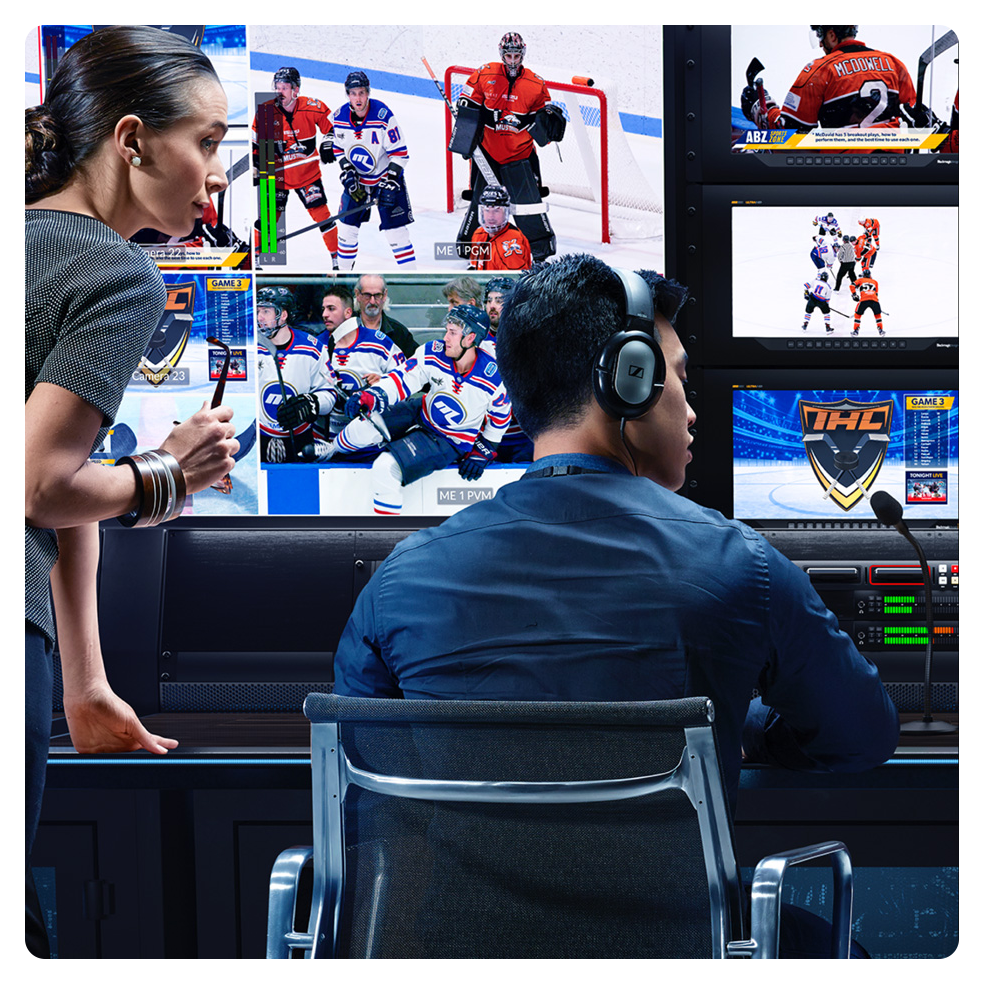

blackmagic smartview 4k in use in a broadcast studio

BroadcastSmartView 4K is ideal for broadcast as it supports both 12G-SDI and 2110 IP up to 2160p60. Switch between SDI and IP at the push of a button! SmartView 4K follows the video input so will switch between all SD, HD or Ultra HD standards automatically.

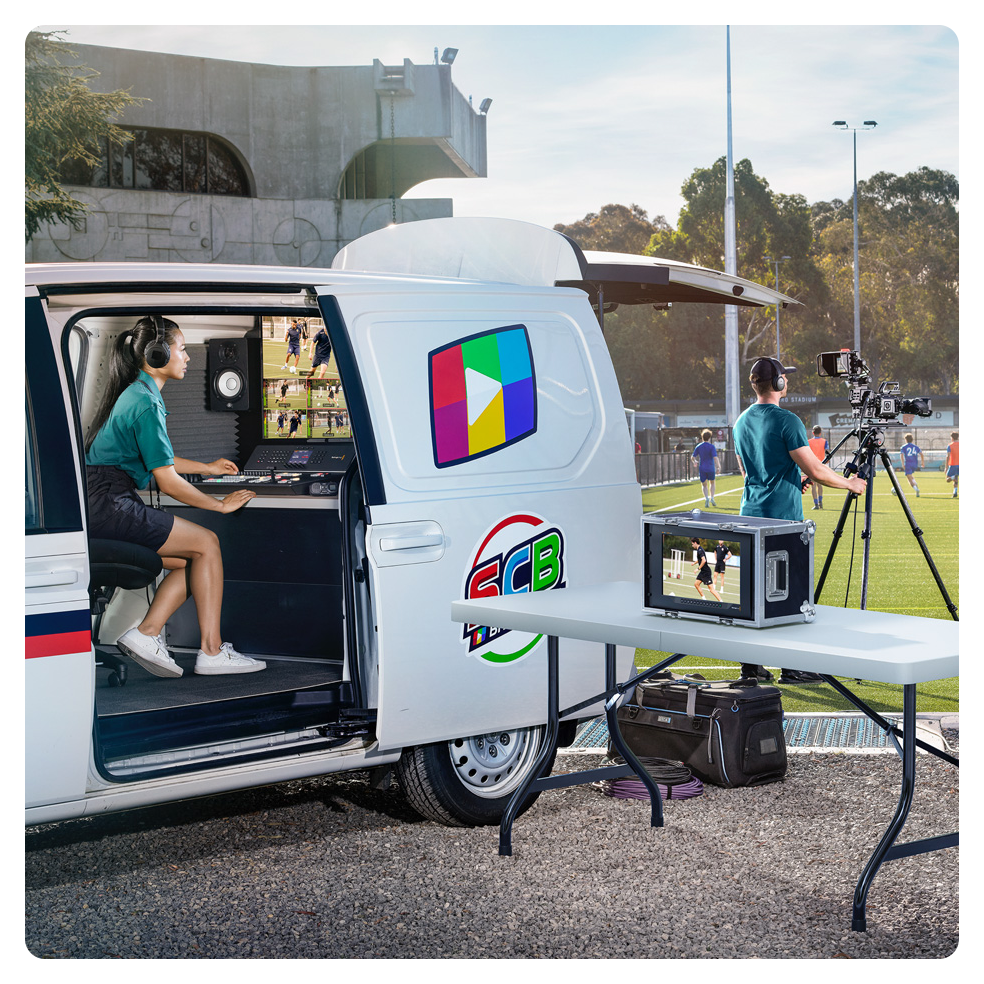

blackmagic smartview 4k in use in a broadcast van

Live ProductionFor live production, it's vital to get a solution with features to accurately monitor cameras. Powerful camera features include focus peaking, zoom, aspect ratio markers and tally. Plus the 4K display lets you see incredibly fine camera image detail.

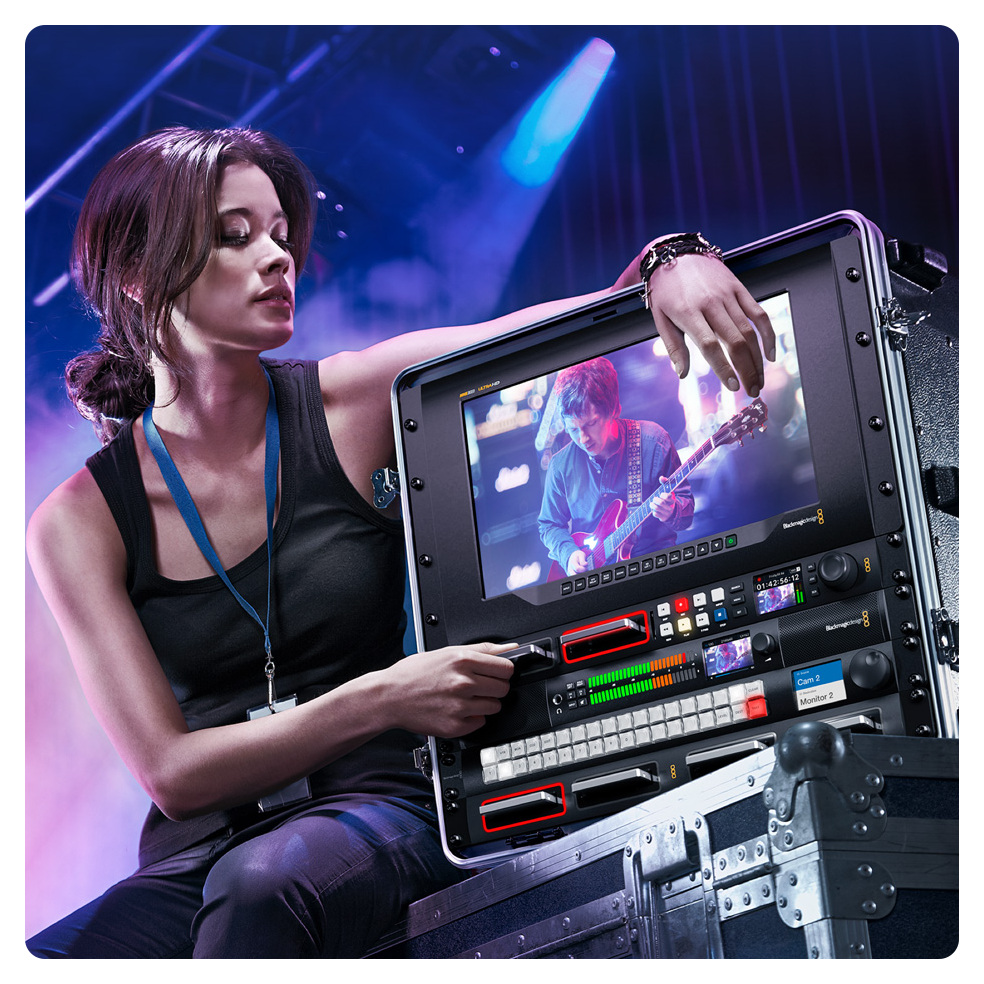

blackmagic smartview 4k in use on set

Fly Away KitsFly away kits need to be portable and tough. SmartView 4K is lightweight aluminium so it's light, plus it's only a few inches deep, so allows great rack ventilation via natural convection. Plus, it has lots of camera and technical monitoring features.

Anodized Machined Metal Design In Deep Black

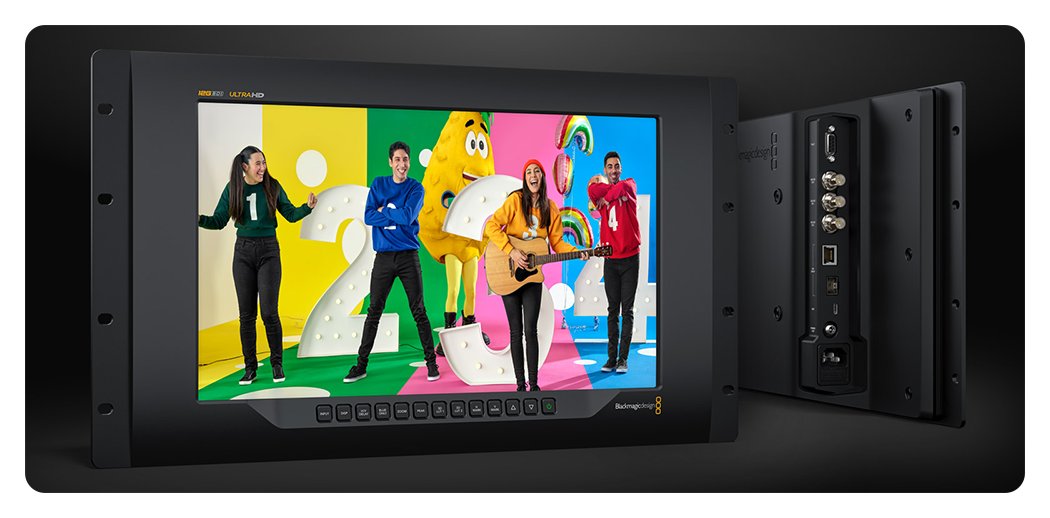

angled front and side views of the blackmagic smartview 4k

aluminium metal designSmartView 4K features an incredibly strong machined aluminium metal design with crisp clean lines. The design is anodized in deep black, so it looks fantastic mounted in equipment racks with other Blackmagic Design equipment. Plus, SmartView 4K is only a few inches deep. Because monitors are often installed at the top of equipment racks, this thin design allows a large area behind the monitor to better ventilate the whole rack and keep all the equipment cool. Along the bottom of the SmartView 4K is a range of button controls that are tilted slightly so they're easier to press. On the rear of the monitor are all the video connections, plus there's even a VESA mounting point.

Bright High Resolution Display

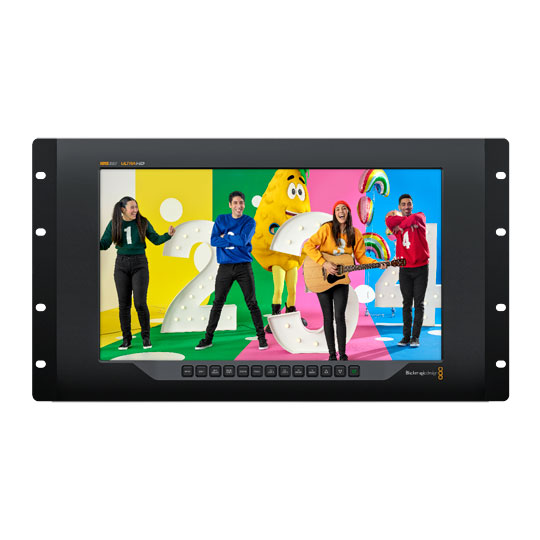

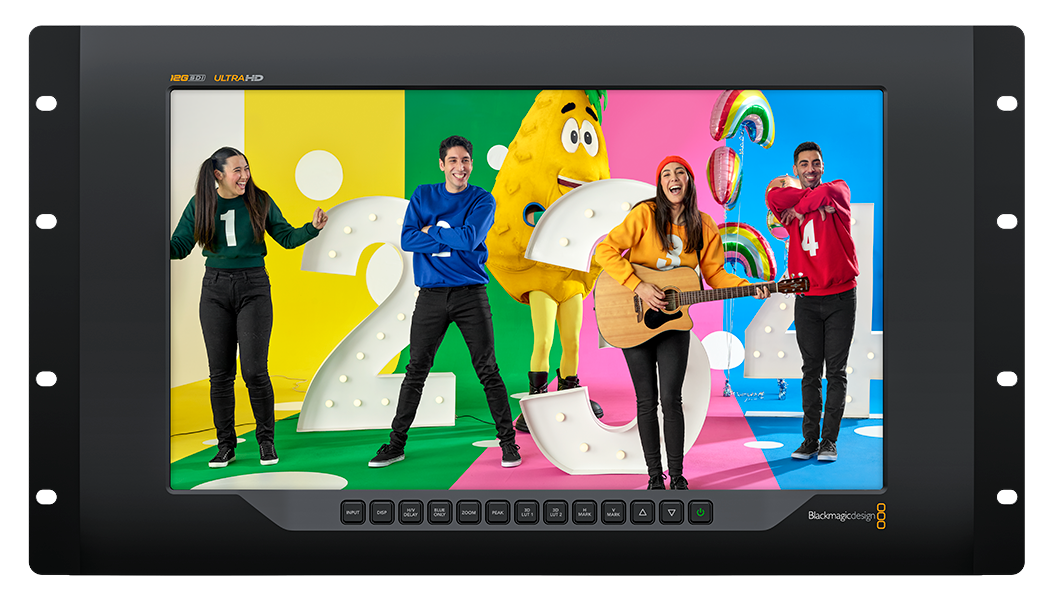

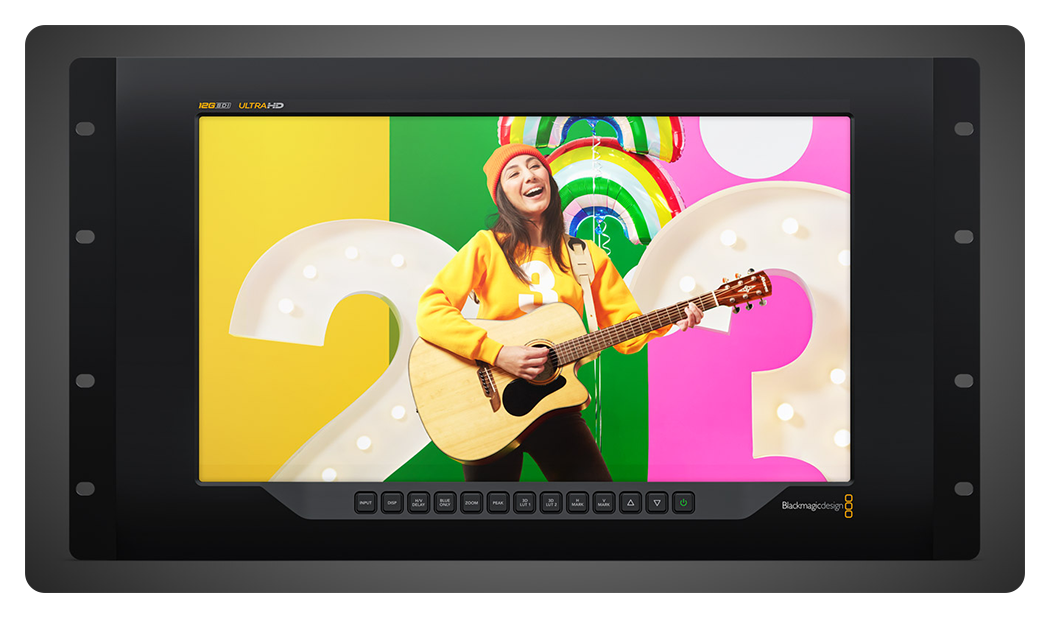

front view of the blackmagic smartview 4k

extremely high resolutionThe LCD used on SmartView 4K features an extremely high resolution so it will display every pixel in an Ultra HD image. That means you get an incredibly clean image with deep colour fidelity. To avoid messy fingerprints on the LCD screen, SmartView 4K has a row of buttons along the bottom of the screen so you can adjust all the monitor controls without touching the screen. SmartView 4K is designed for broadcast so it will instantly lock to a new video source, which is very common when the monitor is connected to a router and the input can change constantly to different timed sources. Unlike TVs, the video is not over scanned so you get all image pixels right to the edge of the LCD.

Front Panel Buttons For Monitor Control

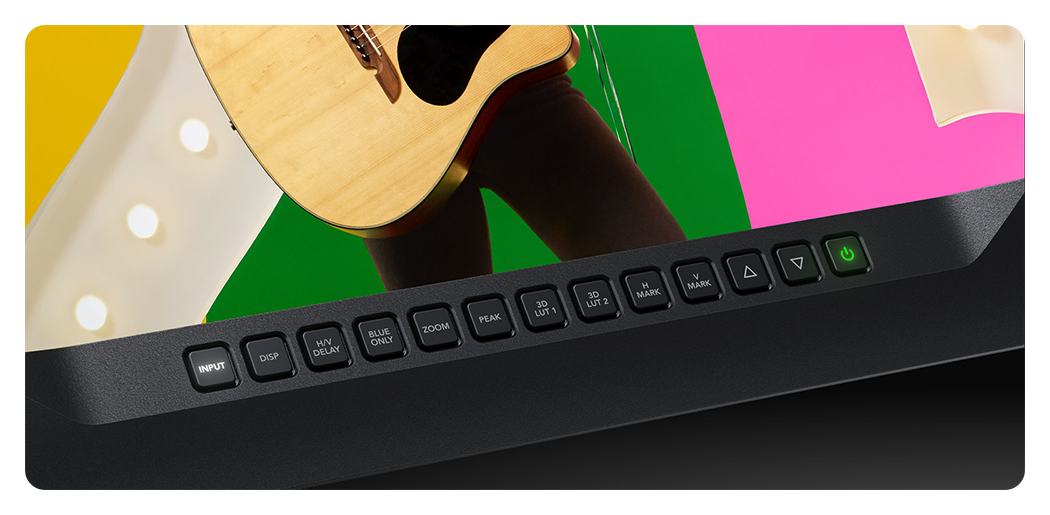

close up of the blackmagic smartview 4k buttons

monitoring controlsThe SmartView 4K front panel includes a wide range of monitoring controls. The input button selects between the two 12G-SDI video inputs and the 2110 IP video input. The display button allows you to adjust display brightness. The H/V display is a traditional broadcast monitor function that lets you look into the image blanking. Blue only is great for checking hue from SD archive content. The zoom button lets you zoom the image in for adjusting camera focus. Peaking highlights sharp image detail and is also perfect for adjusting camera focus. The 3D LUT buttons let you enable and switch between 3D LUTs. The H and V marker buttons let you display and adjust up to 4 on screen markers.

Includes Frame Guides And Focus Peaking

examples of blackmagic smartview 4k assist options

everything you need to assist in framing and focusWhen you're working with cameras, SmartView 4K has everything you need to assist in framing and focus with its on-screen graphic overlays. Overlays include safe area and safe title markers. Plus, there are 4 separate frame guides, 2 vertical and 2 horizontal, which can be displayed simultaneously and are perfect for social media and feature film framing. The markers are all individually adjustable so you can create any aspect ratio you like! You also get on screen focus peaking, which can be turned on and off with a dedicated front panel button. Focus peaking is perfect when using SmartView 4K for remote camera monitoring, as you can ensure your remote camera has perfect focus at all times.

Get Colour Accurate Monitoring With 3D LUTs

colour accurate example of footage on the blackmagic smartview 4k of a woman singing into a microphone

Colour Accurate MonitoringBroadcasters and feature film productions often work with SDI sources that are encoded with log film gamma or an HDR profile. This means the images can look washed out or have incorrect colours. SmartView 4K solves this problem because it includes support for 3D LUTs! This means you can use a 3D LUT to re-map the SDI or 2110 input colourspace to the SmartView 4K screen. Plus, you could also use 3D LUTs for exciting creative looks! 3D LUTs are easy to use and are uploaded using the SmartView utility. You can also export DaVinci Resolve colour grades as custom 3D LUTs. Because DaVinci Resolve can be downloaded free, it costs absolutely nothing to start creating a library of exciting 3D LUTs.

The Latest Ultra HD Video Standards

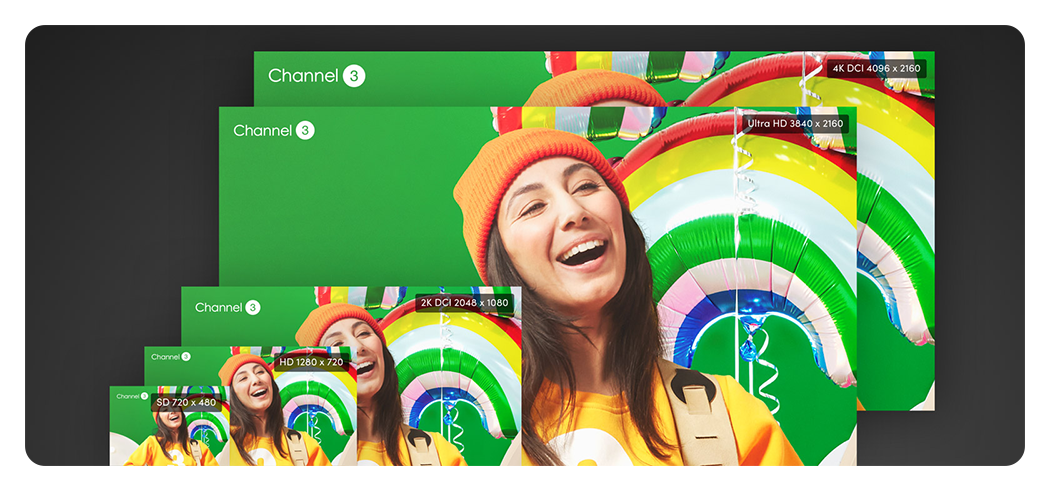

examples of blackmagic smartview 4k standards

Supports SD, HD and 2K DCI FilmThe high performance 12G-SDI and 10G Ethernet based 2110 IP inputs are multi rate so they support lower resolution SD for archive, plus HD for broadcast and 2K for feature film use. These include 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI and 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI and 2KPsF30 DCI. When connected to 3G-SDI sources, both level A and B video standards are supported.

Supports Ultra HD and 4K DCI FilmSmartView 4K also supports Ultra HD video standards on both its 12G-SDI and the 10G Ethernet based 2110 IP video inputs. Ultra HD video standards include 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94 and 2160p60. Supported 4K film standards include 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI, 4KPsF25 DCI, 4KPsF29.97 DCI and 4KPsF30 DCI. This means SmartView 4K is the ideal monitor because it allows you to migrate to Ultra HD and 4K work now! Plus SmartView 4K can be software updated, so new television standards can be added when they are invented.

Connect Directly To SMPTE 2110 IP Networks

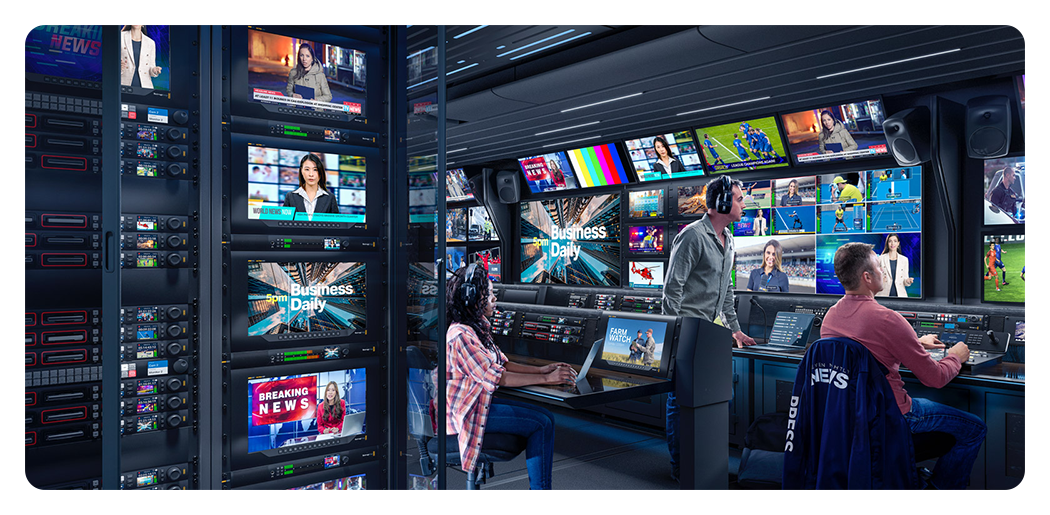

blackmagic smartview 4k in use in a braodcast studio

conforms to the SMPTE‑2110 standardNow you can build modern IP video systems because SmartView 4K fully conforms to the SMPTE‑2110 standard for IP video with both optical fibre and copper 10G Ethernet connections. SMPTE‑2110 specifies the transport, synchronization and description of video, audio and ancillary data over IP networks for broadcast. This includes support for SMPTE‑2110-20 uncompressed video, the Blackmagic IP codec for high frame rate Ultra HD as well as SMPTE‑2110-21 traffic shaping/timing, SMPTE‑2110-30 audio and SMPTE‑2110-40 support for ancillary data. Plus, the selected video input can be sent out via the 10G Ethernet SMPTE‑2110 IP connection with full support for multicast out to multiple destinations.

Includes NMOS Protocol For Virtual Routing

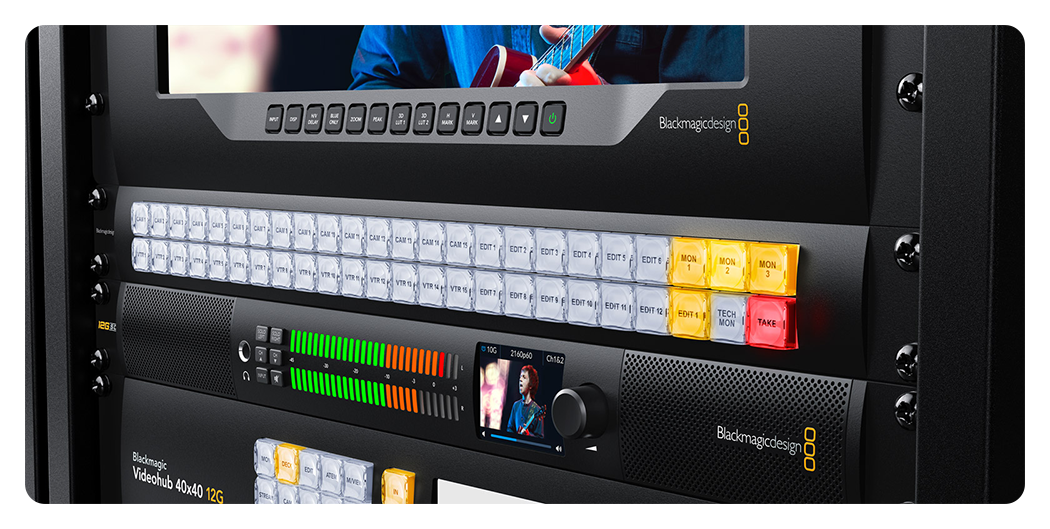

rack mounted blackmagic smartview 4k

supports the NMOS interface specificationsSmartView 4K supports the NMOS interface specifications so all your 2110 IP video devices can operate together as a large virtual router. Plus, Videohub Smart Control can route sources to destinations on 2110 IP networks because it can act as an NMOS controller. The NMOS interface specification describes how SMPTE 2110 devices are discovered and controlled on IP networks. SmartView 4K supports IS-04 for discovery and registration of IP video devices and IS-05 for connection management between IP video devices. This means you can make connections between sources and destinations just like a traditional SDI router.

Built-in Tally Border For On Air Status

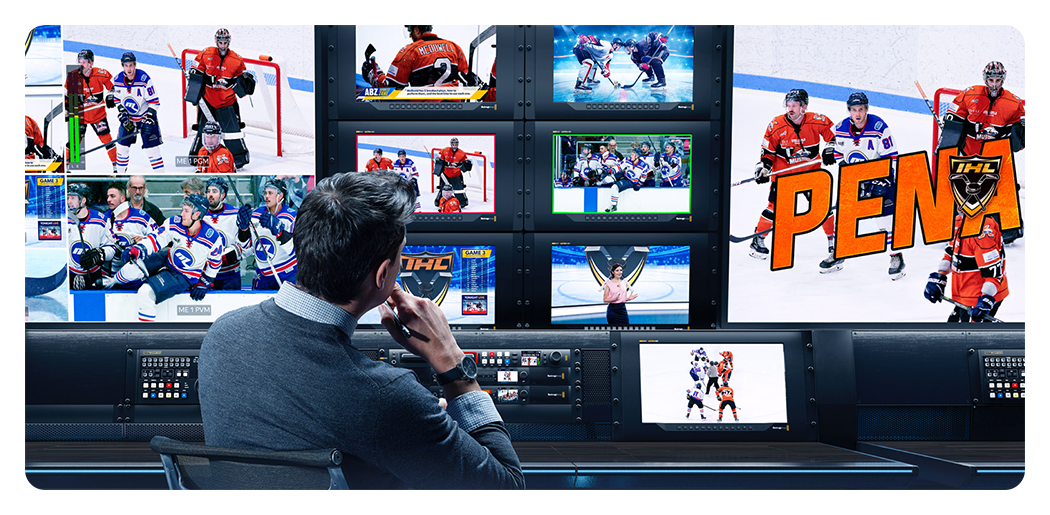

blackmagic smartview 4k in a broadcast studio with tally light

Blackmagic SDI Tally ProtocolWhen you’re working with live production, SmartView 4K supports the Blackmagic SDI Tally Protocol and illuminates a coloured border around the image, in red for on air or green for preview. This SDI tally standard is used on all ATEM live production switchers so you can simply connect the monitor to the switcher SDI outputs to get the image and the tally with a single BNC cable. This means that a director can cut between cameras and the tally information will be sent back to the SmartView 4K via the SDI video feed. This totally eliminates complex cabling and the Blackmagic SDI Tally Protocol helps you set up for jobs much faster.

Remote Control Software For Mac And Windows

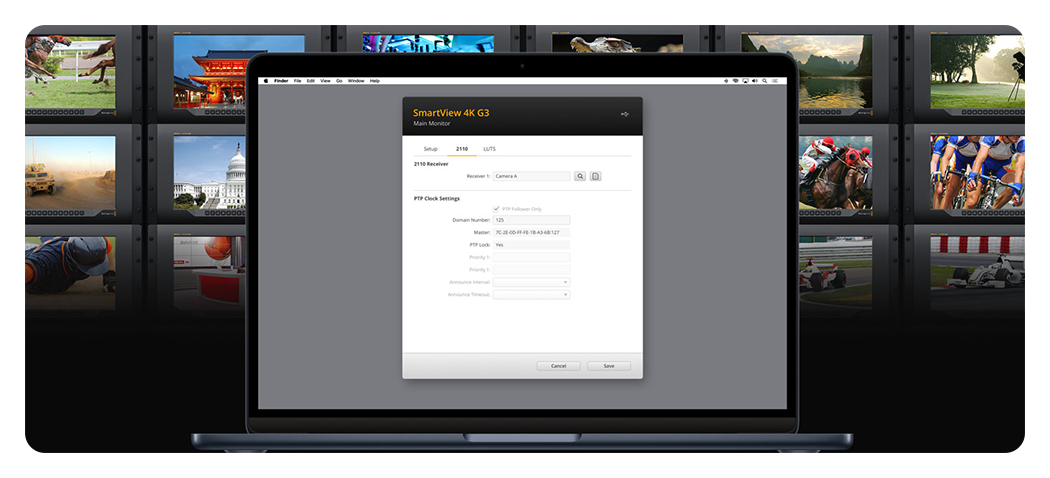

blackmagic smartview 4k remote software interface

SmartView Utility softwareWhen you need to change settings or update the software on your SmartView 4K, then you can simply download and run the SmartView Utility software which is available free of charge on the Blackmagic Design support site. This software is available for both Mac and Windows computers and it connects via the USB connection or Ethernet when you have the SmartView 4K Ethernet connected. You can use the utility to change the monitor custom name for identifying monitors in larger systems. You can also select between 3G-SDI level A and level B formatting. To protect against unauthorized network access, Ethernet is disabled by default, but can be enabled when connecting via USB.

Develop Custom Remote Control Solutions

someone using the blackmagic smartview 4k remote control protocol software on a laptop

powerful remote control protocolVideohub includes a powerful remote-control protocol so you can create custom remote-control solutions for integrating SmartView 4K into your broadcast systems. It's extremely easy to learn because it's a simple text-based protocol you can even play with using a Telnet client. This means you can create custom control solutions on all computer platforms and from embedded hardware such as Raspberry Pi and Arduino. You get full control of LCD brightness, contrast, saturation, tally, input selection and you can even activate a 3D LUT. The best way to learn the protocol is to log in using a simple Telnet app and then use the documentation in the SmartView 4K manual to try out each command.

Flexible And Redundant Power

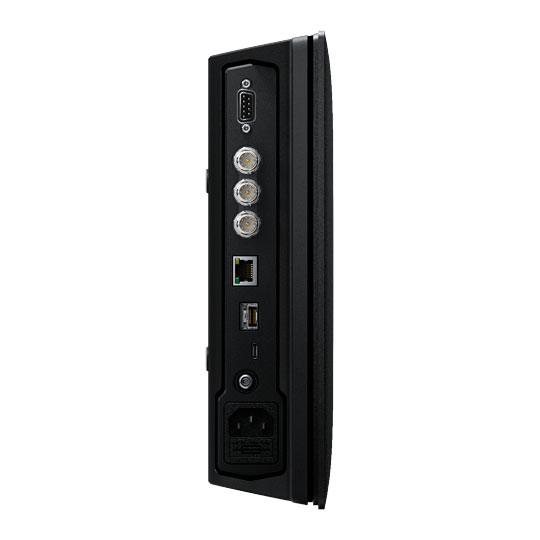

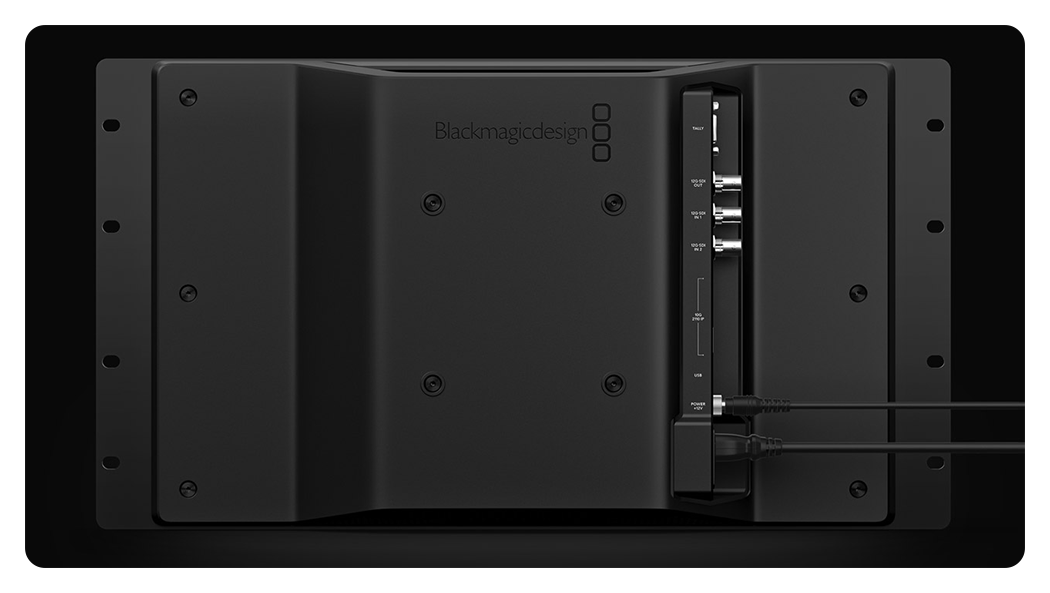

rear view of the blackmagic smartview 4k

all in one designThe all in one design of SmartView 4K includes a built-in power supply so you don’t have to carry around an external power brick. Simply plug it into any AC mains outlet and start live production. The international power supply automatically works from 100 to 240V AC, so you can use it anywhere in the world. Plus, for safety, SmartView 4K includes both AC and 12V DC power connections. The mini converter style 12V DC power connection is perfect for backup power or for running on batteries. Running on batteries means you can use it in extremely remote locations. Plus, if the internal power supply should ever malfunction, then you can connect a DC power supply to keep running.

Specifications
Screen Size 15.6"
Edition SmartView 4K G3
Panel Type TFT
Panel Coating
Panel Finish
Touchscreen No
Backlight
Pitch Size
Curvature
Adaptive Frame-rate Technology N/A
NVIDIA Reflex No
HDCP No
Connectors
  • 2 x BNC In
  • 1 x BNC Out
  • 1 x RJ45
Position Adjustment
Resolution 3840x2160 (Ultra HD)
Aspect Ratio 16:9
Max. Refresh Rate 60Hz
Response Time 25 ms
Brightness
Viewing Angle
Contrast Ratio/Dynamic Contrast Ratio 1000:1
Color Gamut
Color Bit Depth 16.7M Colours
HDR Support No
Supported HDR Standards
Speakers No
Speaker Configuration
Web Camera No
Power Usage (Switched on) 24 W
VESA
3D Support No
Anti-Theft Features
Included Accessories
Monitor Colour
Dimensions (with stand)
Dimensions (without stand) 18.98 x 10.47 x 2.75" (WxHxD)
Weight (with Stand) 3.6 kg
Note
Additional Information
Scan Code LN147440
Model Number HDL-SMTV4K12G3
GTIN 00
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details

Additional Notes:
12 months warranty- If the customer or business is UK based this warranty is extended to 24 months.
