SWIT BM-215-NDI Professional Monitor
SWIT BM-215-NDI 21.5" Professional NDI Monitor, 1920x1080, 100% DCI-P3, 10-bit, 400nits, NDI, 3G-SDI/HDMI 2.0, HLG
Email me when the availability or price changes
SWIT - '21.5" BM-215-NDI Professional NDI Monitor'

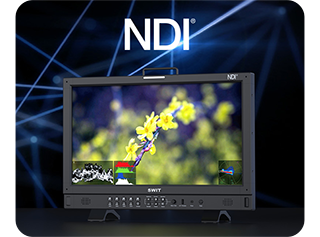

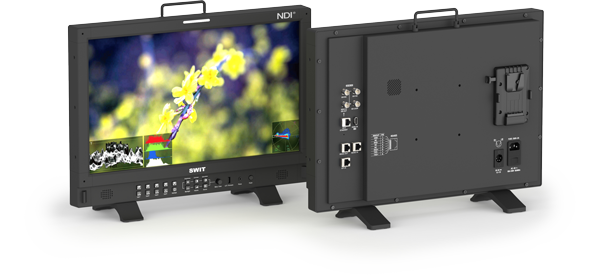

Professional NDI® MonitorThe SWIT BM-215-NDI monitor allows you to direct and control the visuals of your production with its 21.5” 1920x1080 QLED panel with video assist functionality. Combining 100% DCI-P3 coverage with high bandwidth 4K NDI® so you can monitor your feed remotely. NDI video is decoded to a 3G-SDI output and NDI Sources can be auto detected once the monitor is connected to the NDI network. Resolutions up to 4K DCI are supported by the HDMI and NDI inputs.
21.5-inch QLED WCG Panel
FHD 100% DCI-P3The SWIT BM-215-NDI monitor adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide colour gamut, 400 nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.
NDI®, SDI and HDMI 2.0

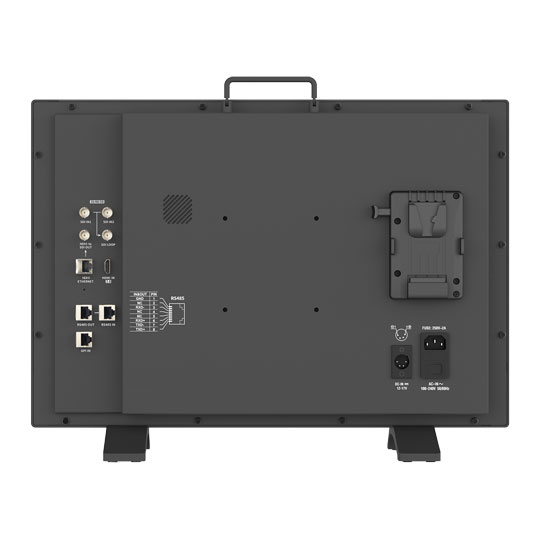

Professional ConnectivityBM-215-NDI monitor provides multiple inputs including:
• High bandwidth NDI® up to 4K
• 3GSDI input x2; Loop out x1
• NDI® decode to 3GSDI out x1
• HDMI 2.0 input x1
Section Title
NDI® Sources SelectionAll NDI® sources will be auto detected when the monitor is connected to NDI® network, and quickly select NDI® sources from a list in monitor menu. The monitor supports Discover Server to pull NDI® sources from different IP segments, and support NDI® low bandwidth mode as well.
Picture-by-Picture & Picture-in-Picture Modes
Multiple Source Display ModesYou can select any 2 sources from NDI®, SDI or HDMI to display simultaneously in Picture-by-Picture mode or Picture-in-Picture mode.
PBPSelect left/right source from NDI®, SDI or HDMI
PIPSelect main/window source from NDI®, SDI or HDMI
Built-in HDR Modes
HDR/SDR EOTFs and Colour Gamut SelectionBM-215-NDI provides HLG (Hybrid Log Gamma), Dolby Vision PQ, Sony S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Colour Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211The SWIT BM-215-NDI monitor adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide colour gamut, 400 nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.
VICO 1.97 Eye Protection

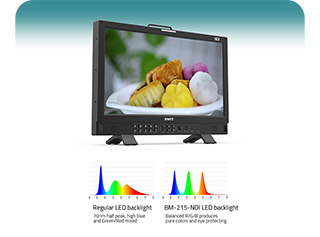

fatigue reducing displayBM-215-NDI QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.
The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.
Multiple Video Analysis Patterns
Built-in Audio Meters
Audio PatternsBM-215-NDI monitor will de-embed 2-ch NDI audios; 8-ch HDMI audios; 16-ch SDI audios, display audio meters and Lissajous paterns, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.
Webserver IP Remote Control
IP controlBM-215-NDI supports webserver remote control by Ethernet LAN connection. Use a computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.
(Available in the future firmware update)
Three Power Options
DC, AC and V-Mount Battery PowerBM-215-NDI consumes 45W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)
