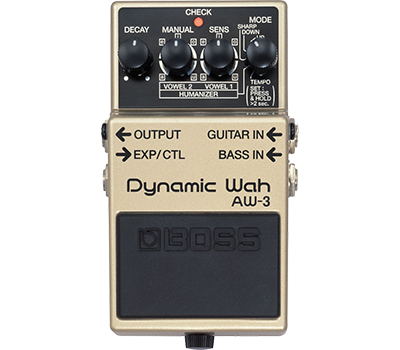

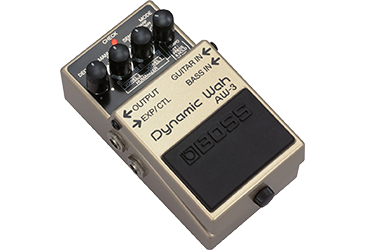

Dynamic Wah Pedal
Boss - AW-3
"wah" effects in a compact pedalThe BOSS AW-3 Dynamic Wah pedal gives guitarists a wide variety of classic auto-wah and dynamic wah effects, along with a new "Humanizer" effect which can simulate human vowel sounds. A Bass input gives you a range of funky wah sounds for bass guitar.
The AW-3 Dynamic Wah is the first compact wah pedal to incorporate human voice-type sounds using a new “Humanizer” Mode. You can also choose from standard up-and-down wah effects, plus a Tempo Mode and resonant synth-like Sharp Mode.
at a glance
• Dynamic wah sounds provide variable effect based on picking strength
• Tempo can be set for pedal control or at fixed rate via Manual mode
• EXP Pedal mode allows wah control via optional expression pedal
• "Humanizer" effect creates human voice-type vowel sounds
• Dedicated Bass input for processing bass guitar
Endless Possibilities
More versatilitySelect from both fixed and auto wah settings using the Manual control or pedal for tempo input. By connecting an optional expression pedal, the AW-3 can also be used for Pedal Wah effects. A dedicated Bass input allows for direct processing of bass guitars.
The Tech Spec
| Features | Specification | Nominal Input Level | -20 dBu |
|---|---|
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | MODE knob SENS knob MANUAL knob DECAY knob Pedal switch |
| Indicator | CHECK indicator (Used for indication of check battery) |
| Connectors | GUITAR IN jack: 1/4-inch phone type BASS IN jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type EXP/CTL jack: 1/4-inch phone type DC IN jack |
| Power Supply | Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) |
| Current Draw | 50 mA |
| Expected battery life under continuous use | Alkaline: Approx. 8 hours (may vary depending on the conditions of use) |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61) |
| Options (sold separately) | AC adaptor: PSA series Expression Pedal: EV-30/FV-500H/FV-500L, Roland EV-5 Footswitch(momentary-type): FS-5U/FS-6/FS-7 |
| Dimensions | Width: 73 mm, 2-7/8 inches Height: 59 mm, 2-3/8 inches Depth: 129 mm, 5-1/8 inches |
| Weight (including battery) | 430 g 1 lb |
