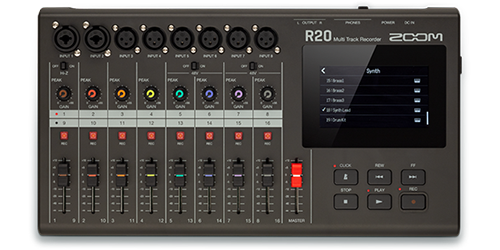

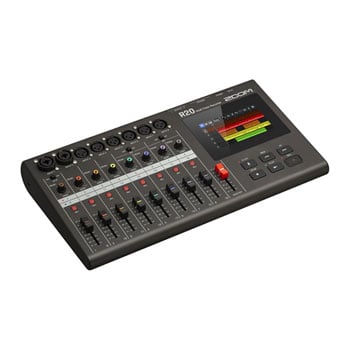

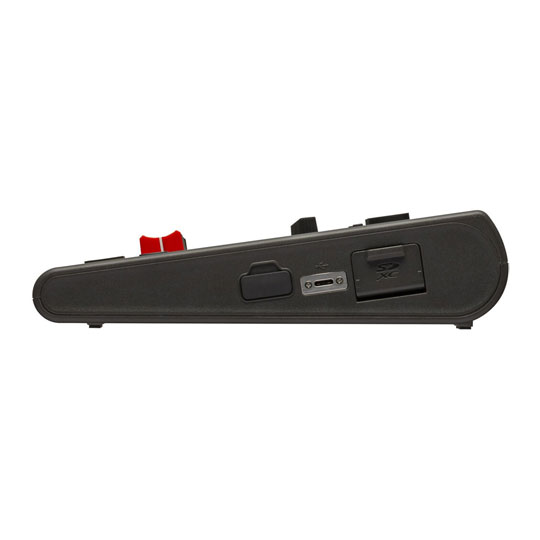

Zoom - R20 Multi-track Portable Recorder
Zoom - R20, Multi-track Portable Recorder, USB Audio Interface, and DAW Control Surface with 8 Microphone Inputs
16-Track Recorder / Interface / Controller Workstation
Zoom - R20
professional multitracking for the home studioA highly intuitive, all-in-one desktop solution for all your recording, editing and mixing needs, Zoom’s impressive R20 Portable Multitrack Recorder blends together a DAW-inspired touchscreen interface, colour-coded tactile controls, and a max of 16 tracks in total to enable artists and bands to produce professional-grade songs in a professional, but intuitive manner. Should a more traditional DAW-like workflow be preferable, the R20 is easily able to act as an 8x4 USB audio interface!
Zoom’s R20 is a brilliant amalgamation of a recording console, virtual instrument and effects unit. It comes fully equipped with eight preamps, channel strips, drum loops, synth sounds and digital processing such as compression, EQ, gating and much more. Multiple mics, an electric guitar, headphones, speakers, and even a MIDI keyboard can be hooked up to the R20, making it a capable centrepiece for any home studio or mobile production rig.
4.3" Colour LCDDisplay
8xNo of Mic Preamps
44.1 kHz / 24-BitMax Sample Rate/Resolution
at a glance
• Standalone Recorder or 8x4 USB Interface
•
Record up to 16 Tracks (8 at Once)
• 8 XLR Mic Preamps, 1 with Hi-Z
• 4.3" Colour Touchscreen Interface
• Colour-Coded Faders, Gain Knobs & Tracks
• Built-In Drum Loops and Synth Sounds
• 1/4" Headphone and Main Outputs
A Long List Of Killer Features!
Multitracking Made EasyEquipped with a DAW-inspired touchscreen interface that feels instantly familiar, the R20 helps you focus on being creative by making it exceedingly easy to track, edit, and mix your songs.
Bring the Whole BandThe R20 has the best preamps and lowest noise floor of any multitrack recorder Zoom has ever designed. With six XLR inputs, two combo inputs, and 16 total tracks (record up to eight at a time), the R20 is perfect for singer-songwriters, full bands, and everything in between.
Just a Gesture AwayNavigate and edit with ease, via the R20's 4.3" color LCD touchscreen interface. Drag and drop, pinch, swipe, and more.
Colour-Coded for ClarityColour-coded faders, gain dials, and touchscreen track regions improve your workflow and ensure that you are always adjusting the correct channel.
Put the Pieces TogetherCut, copy, combine, and loop. The R20's interface provides intuitive editing, so you'll immediately feel at home.
Add Pro-Level EffectsPolish your tracks and mixes with professional effects such as EQ, compression, and more. The R20 provides a full MFX processor compatible with Guitar Lab software.
Drop the BeatWith 30 genres and 150 rhythm patterns and song form variations, the R20 can be a drummer when you need one.
Synth Sounds on TapPlug in a MIDI keyboard via USB Type-C or use the touchscreen to add sonic textures with the R20's 18 built-in synth sounds.
Zoom R20 Multi Track Recorder - Inputs & Tracks
The Tech Spec
| Features | Specification | Simultaneous Rec Tracks | 8 |
|---|---|
| Simultaneous Play Tracks | 16 |
| Sample Rate | 44.1kHz |
| Bit Depth | 24-bit |
| Effects | Yes |
| EQ | 3-band EQ |
| Compression | Yes |
| Phantom Power | Yes (4 channels) |
| Number of Mic Preamps | 8 |
| Computer Connectivity | USB |
| Analogue Inputs | 6 x XLR (mic), 2 x XLR-1/4" combo |
| Analogue Outputs | 2 x 1/4" (L/R) |
| Headphones | 1 x 1/4" |
| USB | 1 x USB-C (8 x 2) |
| Storage | SDHC (4GB-32GB), SDXC (64GB-1TB) |
| Faders | 8 + 1 Master (fader/encoder) |
| Power | 12V AC adapter (included) |
| Height | 2.28" |
| Depth | 8.11 |
| Width | 14.88" |
| Weight | 2.93 lbs. |
