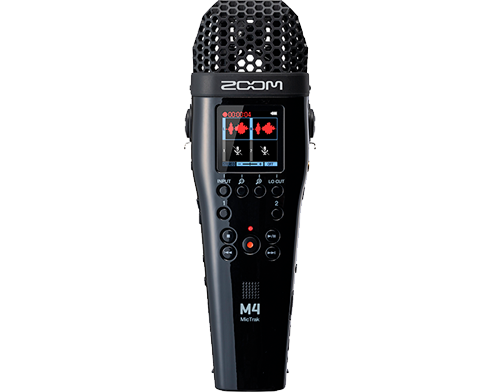

Zoom M4 MicTrak 4-Channel Field Recorder
Zoom - M4 MicTrak, 4-Channel Field and Music Recorder
4-Channel Field and Music Recorder
Zoom - M4 MicTrak
FOUR TRACKS WITH TIMECODE GENERATOR AND 32-BIT FLOATThe first portable recorder to feature both 32-bit recording and a built-in timecode generator for easy synchronisation with video. This innovative and compact recorder offers 4 tracks and is the perfect solution for musicians and filmmakers.
at a glance
• X/Y microphone with honeycomb protective grille
• 4-track recording (L+R and 2 XLR/combo inputs)
• Colour LCD display (waveform display)
• Time code generator (in-out) for synchronisation with video applications
• 4x AA battery operation (up to 18 hours)
• 32-bit float USB mic function for Mac/Windows and iOS/Android
• Improved coating to reduce grip noise during recording
what's in the box?
• M4 MicTrak
• Windscreen
• Quick Guide
Built For Creators!
ROLLING… AND… ACTION!Filmmakers can use the two XLR inputs for dialogue, while using the X/Y mics to record ambience. In post, your recordings can easily be synced to video, thanks to the M4’s onboard timecode generator.
MAKE GREAT SOUNDING MUSIC VIDEOSCombine audio captured by the onboard X/Y mics with two additional external microphones to give your videos studio-quality sound in any environment.
WAV WATCHINGKeep an eye on all four tracks of your recording using the M4’s color LCD with a real-time waveform display.
RECORD ALL DAY With 18 hours of battery life, the M4 is ready to record whenever you need it.
32-BIT FLOAT AUDIO INTERFACEThe M4 can be used as a 32-bit float, 4-in/2-out audio interface.
TIMECODE ONBOARD.Serious videographers use timecode to keep their audio and video perfectly in sync. The M4’s built-in timecode generator has professional grade .2 ppm accuracy.
HIGH-PERFORMANCE INPUTSThe M4 has two XLR/ TRS inputs that feature the same professional grade, low-noise preamps found in our flagship F-Series recorders.
PERFECT OUTPUTSConnect the line output to your camera to record a backup or sync track to your video. Monitor your recording using the built-in headphone output.
MONITORING CAPABILITYUse the headphone output to monitor your recording or use the built in speaker for quick reference playback.
The Tech Spec
• USB-C connector (2.0)
• USB bus power supported
• 2x XLR/jack combo sockets with 48V phantom power
• Recording media
• 4GB-32GB microSDHC cards
• 64GB-1TB microSDXC cards
• Built-in loudspeaker
• Headphone jack
• Line-out
• Time code in/out
• Connection for Zoom RC4 remote control (not included)
• Recording format
• 44.1/47.952/48/48.048/96/192kHz (48kHz in audio interface mode)
• 32-bit float mono/stereo BWF and iXML
