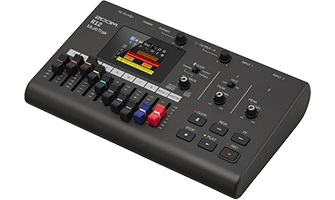

Zoom - R12 Multitrack Recorder
Zoom - R12 Multitrack Recorder, Full-Colour LCD Touchscreen, Stereo Panning, 3-Band EQ & Effects, Battery Power
- SCANPROTECT Protect against installation damage for 28 days. More info
Multitrack Recorder
Zoom - R12
BATTERY POWERED MUSICAL FREEDOMThe Zoom R12 MultiTrak provides you power and hands-on workflow of classic 8-track recorders but with several modern upgrades. One of the main features being touchscreen track editing, perfect for capturing ideas and even full songs without the complicated setup of DAWs and computers.
The R12 connects easily to microphones, instruments, or line level gear such keyboards and mixers using two TRS/XLR combo jacks with the ability to record up to eight tracks per song. Trying out song ideas is easy, just use your own instruments or try out the R12's incredible pre-loaded drum machine, onboard effects, and patch options.
The R12 also features a built-in synth that can be controlled using the on-board touchscreen or alternatively external keyboard. If you love the feel of hardware recording but wish for enhanced workflow and touchscreen control, the Zoom R12 MultiTrak is perfect for you!
76Effects
3-BandEQ
10Faders
At A Glance
• Save ideas and record full songs easily using a single compact device
• Full-colour LCD touchscreen interface allows for faster cut, copy, loop, and editing
• Stereo panning, 3-band EQ, and effects for each track with dedicated effects return fader
• Dual XLR/TRS combo inputs with quality, clean preamps and 48V phantom power
• Portable design runs on 4 AA batteries or external USB batteries
Amazing Features
AMAZING SOUNDThe R12 features ultra-clean preamps and you’ll love the way they sound. With two XLR/TRS inputs, and 8 tracks of audio, the R12 is perfect for recording everything from demos to release-ready songs.
FULL LOADEDThe R12 includes a send effects channel offering reverb, chorus and delay with a dedicated effects return fader. For advanced tones, you can use presets and effects from Zoom's Guitar Lab. The R12 also has pan and a 3-channel EQ for each track and a compressor on inputs 1 and 2.

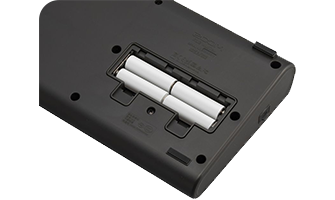

TAKE IT EVERYWHEREThe R12 offers up to 5 hours on four AA batteries allowing you to bring your production anywhere. You can also use the R12 with the included AD-17 power adapter, or a USB battery.
PLAYBACK & PLAY ALONGUse Sequence Play to create a playlist of your projects. Then use them as backing tracks for when you’re playing live or rehearsing a set.
START WITH A GROOVEWith 150 preloaded drum loops in a range of patterns and styles, the R12 provides a versatile rhythm section for any project.
IMPORT AUDIO FILESAdd additional audio samples by importing files into your R12 via Micro SD card or USB thumb drive.
Interface & Control Surface
Ultra-CompatibleYou can use the R12 as a stereo audio interface with your favourite DAW or streaming platform, via USB-C. As a control surface, the transport controls and faders make it easy to adjust and control your software mid production.
Attention To Detail
ConnectionsConnect microphones, instruments or line level devices like keyboards, mixers and more.
Hi-ZInput 1 on the R12 has a Hi-Z switch, so you can plug your guitar directly into the recorder.
Phantom PowerBoth inputs on the R12 offer 48V Phantom Power for condenser microphones.
Impressive Workflow
IN TIME. EVERY TIME.Activate the fully customizable click track with the press of a button. Click balance blends the metronome with your playback audio and routes it to your headphones and/or the main outputs.
ADD SOME SYNTHThe R12 has 18 FM synth instruments built in. They can be played by plugging in a MIDI keyboard via USB-C or programmed using the touchscreen.
Meet the Zoom R12 MultiTrak
The Tech Spec
| Features | Specification | Simultaneous Rec Tracks | 2 (SD card) |
|---|---|
| Simultaneous Play Tracks | 8 |
| Sample Rate | 44.1 kHz |
| Bit Depth | 16-bit, 24-bit |
| Effects | 76 |
| EQ | 3-Band |
| Phantom Power | Yes |
| Number of Mic Preamps | 2 |
| Audio Interface | Yes |
| Computer Connectivity | USB Type-C (2 x 2) |
| Analogue Inputs | 2 x XLR-1/4" combo |
| Analogue Outputs | 2 x 1/4" TRS |
| Headphones | 1 x 1/8" |
| USB | 1 x USB-C (2 x 2) |
| Storage | SDHC (32GB), SDXC (512GB) |
| Faders | 10 x Faders |
| Power | 5V DC power supply (included), 4 AA (alkaline, lithium, or rechargeable NiMH) |
| Dimensions | Width: 10" Height: 2.4" Depth: 6.4" |
| Weight | 1.82 lbs. |
