Scan code: LN98158 Manufacturer code: EAP225-Outdoor

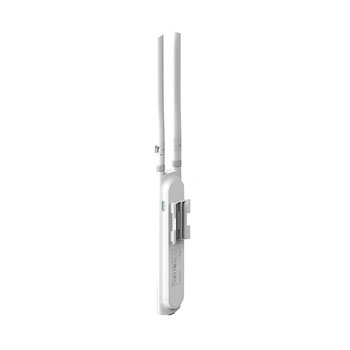

TP-LINK AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

TP-LINK EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point, 1200Mbps, 2x2 MIMO

Thumbnail 1 : TP-LINK AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Thumbnail 2 : TP-LINK AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Thumbnail 3 : TP-LINK AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Thumbnail 4 : TP-LINK AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Scan code: LN98158 Manufacturer code: EAP225-Outdoor
Order now and get it tomorrow, Tue 12th Dec
£82.99
Get it Tomorrow, 12 DecIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 12th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

Gigabit Wi-Fi Speeds with MU-MIMO Technology

EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.


Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

• Detachable Antennas: EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
• Delicate Appearance Even Better for Indoor Applications: EAP225-Outdoor is just similar to a cellphone, with dimensions: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm).
• Multiple PoE Options for Easy Installation: EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.


Wi-Fi That Goes the Distance

With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+ at 2.4GHz and 300m+* at 5GHz in outdoor settings.


Specially Designed Weatherproof Enclosure for Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.


Efficient Centralised Network Management

With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

Features
• Durable, weatherproof enclosure for outdoor Wi-Fi applications.
• Up to 1200Mbps with 2×2 MIMO technology.
• Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations.
• High transmission power and high gain antennas provide a long-range coverage area.
• Free cloud centralised management and Omada app for ultra convenience and easy management.
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation.
Specifications
Networking, Connectivity & Ports
Model EAP225-Outdoor
Form-Factor
Device Type Wireless Access Point
Compatible Internet Connections Existing WiFi Network
Network Connectivity
  • 10/100/1000
  • Wireless LAN
Network Ports
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance Unknown
Wireless
Wireless Speed 1200 Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3af PoE
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power <25dBm
Antenna 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x Reset Button
OS Support
Max. Power Consumption 10.5 W
PSU Type
Security & VPN
Security Protocols
  • Captive Portal Authentication
  • Rogue AP Detection
  • SSID to VLAN Mapping
  • Wireless Isolation Between Clients
  • Wireless Mac Address Filtering
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN98158
Model Number EAP225-Outdoor
GTIN 6935364083588
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
