Scan code: LN110927 Manufacturer code: EAP660 HD

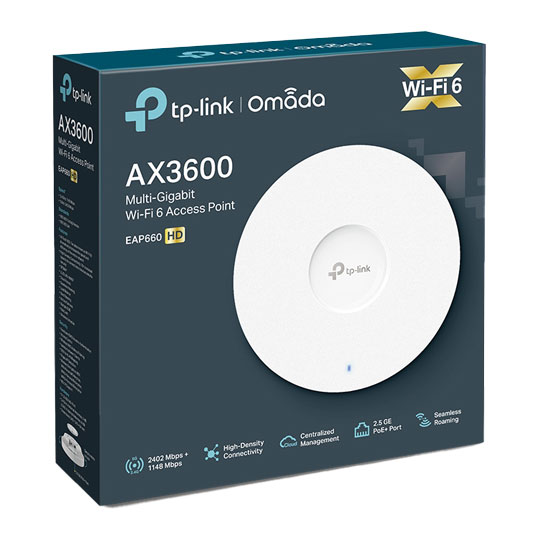

TP-LINK AX3600 Ceiling Mount Access Point

TP-LINK EAP660HD AX3600 Dual Band Multi-Gigabit Access Point, Ceiling Mount, WiFi 6, 2.5GbE, PoE Support, White

Thumbnail 1 : TP-LINK AX3600 Ceiling Mount Access Point Thumbnail 2 : TP-LINK AX3600 Ceiling Mount Access Point Thumbnail 3 : TP-LINK AX3600 Ceiling Mount Access Point Thumbnail 4 : TP-LINK AX3600 Ceiling Mount Access Point
Scan code: LN110927 Manufacturer code: EAP660 HD
Order now and get it tomorrow, Wed 6th Jul
£224.99
Get it Tomorrow, 06 JulIn stock
From £9.95 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £19.34
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £224.99
Total inc. interest: £232.07
Monthly Payment: £9.95
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £224.99
Total inc. interest: £238.69
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 6th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

High-Density Connectivity with 4x Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.


Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.


Omada SDN - Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. 00% centralised cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.


Optimised Wired Performance with 2.5 GE PoE+ Port

Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.


Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.


Boost Network Efficiency in All Aspects With Rich Advanced Features

Band Steering - Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance - Ensures large numbers of users have smooth network experiences in high-density business networks.
Airtime Fairness - Increases average network throughput in heavily congested environments.

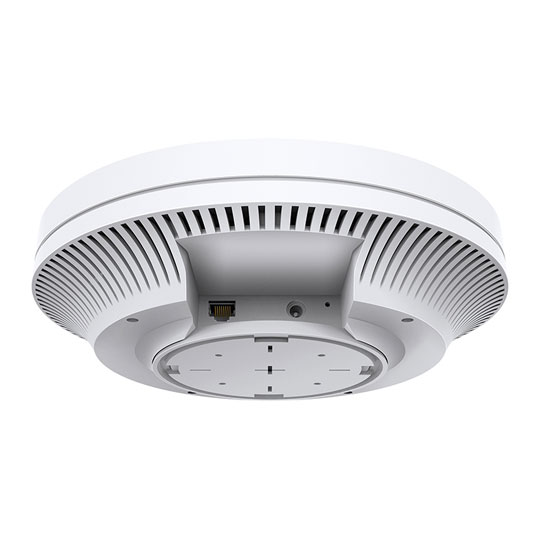

Easy to Mount with Refined Industrial Design

Mounting is made simple with the refined industrial design of the EAP660 HD, even in those tricky to reach ceiling installations; simply push up and rotate to lock into place.


Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorised guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

Features

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.
High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Specifications
Networking, Connectivity & Ports
Model EAP660 HD
Form-Factor
Device Type Network WiFi Access Point
Compatible Internet Connections Existing WiFi Network
Network Connectivity
  • 10/100/1000/2000/2500
  • Wireless LAN
Network Ports 1 x RJ45 10/100/1000/2500 (2.5 Gigabit) for LAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 3550 (2402 + 1148) Mbps
Wireless Protocols
  • 1024QAM (2.4GHz)
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power <20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz, EIRP)
Antenna Internal Omni
Core Features
Features
  • Automatic Channel Assignment
  • Beamforming
  • Enable/Disable Wireless Radio
  • Guest Network
  • Load Balance
  • MU-MIMO
  • Multiple SSIDs
  • OFDMA
  • Quality of Service (QoS)
  • Rate Limit
  • Reboot Schedule
  • Transmit Power Control (Adjust Power on dBm)
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x Reset Button
OS Support
  • Linux
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Max. Power Consumption 18.5 W
PSU Type External
Security & VPN
Security Protocols
  • 802.1x
  • Access Control
  • Captive Portal Authentication
  • Rogue AP Detection
  • SSID to VLAN Mapping
  • WEP
  • Wireless Isolation Between Clients
  • Wireless Mac Address Filtering
  • WPA
  • WPA-Enterprise
  • WPA2
  • WPA2-Enterprise
  • WPA3
Firewall/NAT No
Management
  • Central Management
  • Cloud Access
  • Email Alerts
  • L3 Management
  • LED ON/OFF Control
  • Management MAC Access Control
  • Management VLAN
  • Multi-site Management
  • Omada Cloud Controller
  • Omada Controller Software
  • SNMP
  • SSH
  • System Logging Local/Remote Syslog
  • Web-based Management
VPN Support
Physical Specifications
Dimensions 243 x 243 x 64 mm (WxHxD)
Weight
Additional Specifications
Note Includes power adapter, ceiling/wall mounting kit, installation guide.
Additional Information
Scan Code LN110927
Model Number EAP660 HD
GTIN 1753502211
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
