Scan code: LN90315 Manufacturer code: EAP225 V3

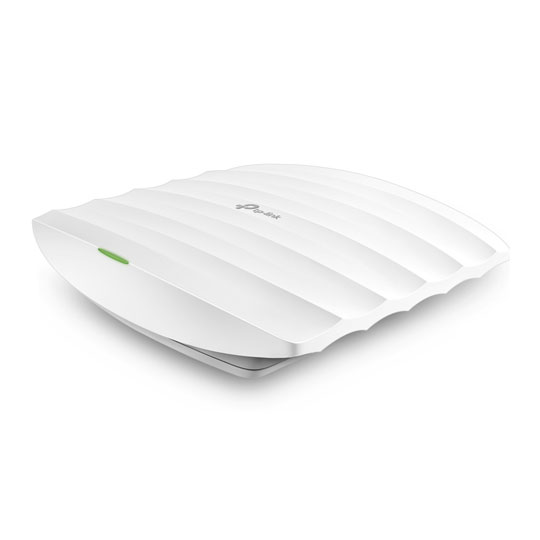

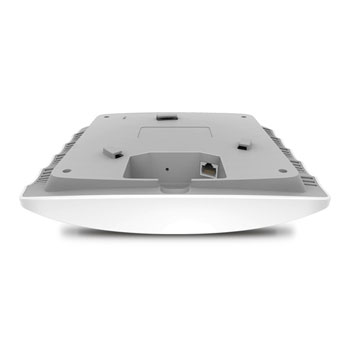

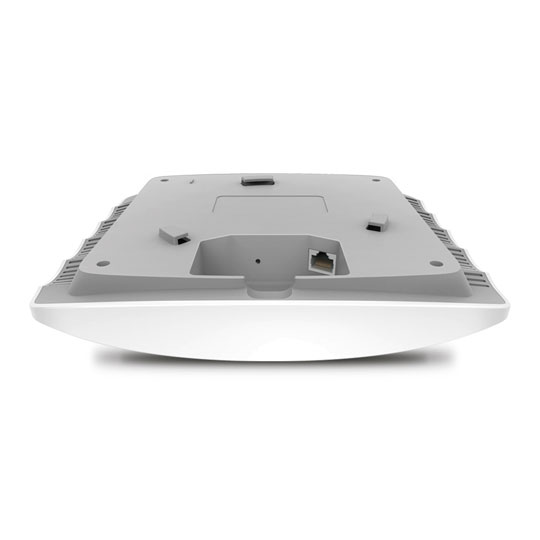

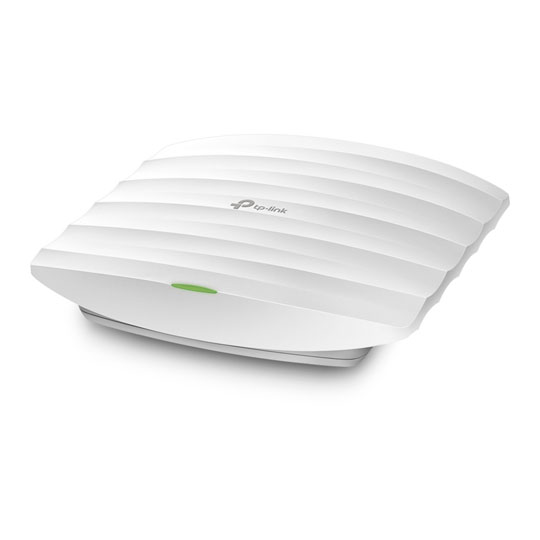

TPLink EAP225 V3 AC1350 Dual Band MU-MIMO Wi-Fi Access Point

TP-Link EAP225 V3 AC1350 MU-MIMO Gigabit Ceiling Mount Access Point, Compatibility with 802.3af, Passive PoE

Thumbnail 1 : TPLink EAP225 V3 AC1350 Dual Band MU-MIMO Wi-Fi Access Point Thumbnail 2 : TPLink EAP225 V3 AC1350 Dual Band MU-MIMO Wi-Fi Access Point Thumbnail 3 : TPLink EAP225 V3 AC1350 Dual Band MU-MIMO Wi-Fi Access Point Thumbnail 4 : TPLink EAP225 V3 AC1350 Dual Band MU-MIMO Wi-Fi Access Point
Scan code: LN90315 Manufacturer code: EAP225 V3
£63.98Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

EAP225 V3

• Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
• Free EAP Controller Software lets administrators easily manage hundreds of EAPs
• Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
• Captive portal provides a convenient method for guest authentication
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
• Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
• Supports management VLAN for an enhanced network management
• Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose Features • Interface: Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE)
• Button: Reset
• Power Supply: 802.3af PoE or passive PoE
• Power Consumption: 12.6W
• Dimensions: 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
• Antenna Type:
3 Internal Omni
2.4GHz: 4dBi
5GHz: 5dBi
• Mounting: Ceiling /Wall Mounting (Kits included)
• Physical Security Lock: Yes
• Hardware Watch Dog: Yes

Wireless Features
• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency: 2.4GHz and 5GHz
• Signal Rate:
5GHz:Up to 867Mbps
2.4GHz:Up to 450Mbps

• Wireless Functions:
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

• Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

• Transmission Power:
=24dBm(2.4GHz)
=22dBm(5GHz)

Management
• EAP Controller Software: Yes
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c
• System Logging Local/Remote Syslog: Local/Remote Syslog
• Telnet: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes

Others
• Certification: CE, FCC, RoHS
• Package Contents:
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
• Environment:
Operating Temperature: 0?~60? (32?~144?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Specifications
Networking, Connectivity & Ports
Model
Form-Factor
Device Type N/A
Compatible Internet Connections
Network Connectivity
Network Ports
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed N/A
Wireless Protocols N/A
Wireless Band
Frequency
Operation Channel
Wireless Transmitter Power N/A
Antenna
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
OS Support
Max. Power Consumption
PSU Type
Security & VPN
Security Protocols N/A
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
