Scan code: LN106194 Manufacturer code: CPE605

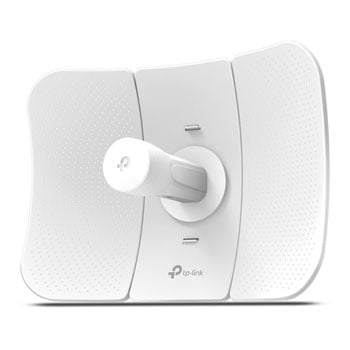

TP-Link Wireless 5GHz Gigabit Outdoor CPE Access Point

TP-Link CPE605 Outdoor WiFi Access Point, CPE, 5GHz Up to 150Mbps, GbE, IP65, PoE, 15KV ESD/6KV Lightning Protection

Thumbnail 1 : TP-Link Wireless 5GHz Gigabit Outdoor CPE Access Point Thumbnail 2 : TP-Link Wireless 5GHz Gigabit Outdoor CPE Access Point Thumbnail 3 : TP-Link Wireless 5GHz Gigabit Outdoor CPE Access Point
Scan code: LN106194 Manufacturer code: CPE605
£49.99
Order now and get it tomorrow, Wed 3rd Jun
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 3rd Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

MAXtream TDMA

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission.


Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission

With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.


Stable Structural Design and Flexible Installation

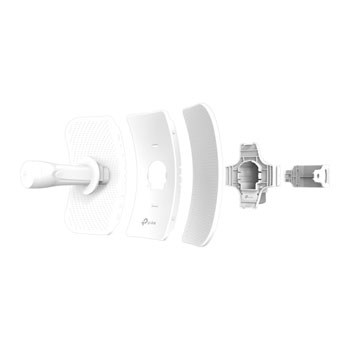

Snap-lock parts make assembly simple and convenient whilst Pole mount kits and the freedom of three-axis alignment facilitate flexible installation with the sturdy design ensuring stability in windy conditions.


Pharos Control – Centralized Management System

CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.

Features

• Up to 150Mbps on 5GHz wireless data rates.
• 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application.
• Excellent beam directivity, improved latency and noise cancellation.
• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds.
• Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability.
• TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance.
• Pharos Control gives administrators a free, centralized management system.
• Passive PoE supports to allow flexible deployment and convenient installation.

Specifications
Networking, Connectivity & Ports
Model CPE605
Form-Factor Desktop
Device Type Wireless Access Point
Compatible Internet Connections Existing WiFi Network
Network Connectivity 10/100/1000
Network Ports 1 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
Other Connectors N/A
USB Applications
Wired Protocols IPv6
Total LAN Connections 1
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed N/A
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11n
  • IPv6
Wireless Band Single Band
Frequency 5 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna 23dBi Directional Antenna
Core Features
Features Multiple SSIDs
Router/Modem Processor Qualcomm 560MHz
Internal RAM Memory 64MB
Internal RAM Memory Type DDR2
Internal Flash Memory 8MB
LED Indicators 1 x Power LED
Buttons 1 x Reset Button
OS Support
Max. Power Consumption
PSU Type
Security & VPN
Security Protocols
  • WEP (128 bit)
  • WEP (152 bit)
  • WEP (64 bit)
  • WPA
  • WPA2
  • WPA2-PSK (AES)
  • WPA2-PSK (TKIP)
Firewall/NAT No
Management
  • DDNS
  • SNMP
  • SSH
  • System Event Log
  • Web-based Management
VPN Support
Physical Specifications
Dimensions 350 x 207 x 255 mm (WxHxD)
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN106194
Model Number CPE605
GTIN 6935364089870
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
