Scan code: LN108413 Manufacturer code: CPE710

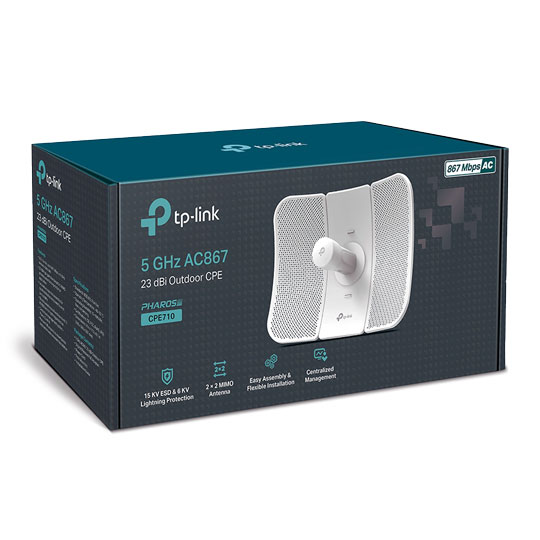

TP-LINK Wireless 5GHz 867Mbps Outdoor CPE Access Point

TP-LINK CPE710 Outdoor WiFi Access Point, CPE, 5GHz Upto 867Mbps, GbE, IP65, PoE, 15KV ESD/6KV Lightning Protection

Thumbnail 1 : TP-LINK Wireless 5GHz 867Mbps Outdoor CPE Access Point Thumbnail 2 : TP-LINK Wireless 5GHz 867Mbps Outdoor CPE Access Point Thumbnail 3 : TP-LINK Wireless 5GHz 867Mbps Outdoor CPE Access Point
Scan code: LN108413 Manufacturer code: CPE710
£51.98
Order now and receive it by Monday, 21st September
Delivery Options
  • By DPD On 21st Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Typical Application

TP-Link’s Outdoor CPE is dedicated to reliable solutions for outdoor wireless networking applications. With its centralised management application, it is flexible and ideal for Point-to-Point and Point-to-Multipoint applications.


Long-Distance Wireless Connection

Using two CPEs to build a long-distance Point-to-Point wireless connection.


Large-Area Wireless Coverage

Using Base Station combined with Sector Antenna as the Access Point at the central station, and several CPEs as client to build a Point-to-Multipoint coverage.


TP-Link MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among outdoor devices will be so fierce that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, TP-Link’s Pharos series uses MAXtream3 TDMA Technology.


Pharos Control – Centralized Management System

Pharos also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.


PharOS

User-friendly web-based management system allows professionals to do more specific configurations.

Features

• 802.11ac for up to 867Mbps on 5GHz wireless data rate.
• 23dBi high-gain directional 2x2 MIMO, ideal for long-distance application.
• Excellent beam directivity, improved latency and noise cancellation.
• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds.
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability.
• Pharos Control gives administrators a free, centralized management system.
• Passive PoE supports to allow flexible deployment and convenient installation.

Specifications
Networking, Connectivity & Ports
Model CPE710
Form-Factor
Device Type Wireless Access Point
Compatible Internet Connections
Network Connectivity 10/100/1000
Network Ports 1 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections 1
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed N/A
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11n
Wireless Band Single Band
Frequency 5 GHz
Operation Channel
Wireless Transmitter Power 27dBm
Antenna
Core Features
Features
  • Automatic Channel Assignment
  • DFS (Dynamic Frequency Selection)
  • MU-MIMO
  • Static Routing
  • Transmit Power Control (Adjust Power on dBm)
Router/Modem Processor Qualcomm 750MHz CPU, MIPS 74Kc
Internal RAM Memory 128MB
Internal RAM Memory Type DDR2
Internal Flash Memory 16MB
LED Indicators
Buttons 1 x Reset Button
OS Support
  • Linux
  • UNIX
  • Windows 10
  • Windows 2000
  • Windows Vista
  • Windows XP
Max. Power Consumption
PSU Type External
Security & VPN
Security Protocols
  • Access Control
  • DoS protection
  • IP and MAC Address Binding
  • SPI Firewall
  • SSID broadcast disable
  • Wireless Mac Address Filtering
  • WPA
  • WPA-PSK
  • WPA2
  • WPA2-PSK (AES)
  • WPA2-PSK (TKIP)
Firewall/NAT No
Management
  • DHCP
  • Port Trigger
  • SNMP
  • System Logging Local/Remote Syslog
  • UPnP
VPN Support
Physical Specifications
Dimensions 366 x 207 x 280 mm (WxHxD)
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN108413
Model Number CPE710
GTIN 6935364053345
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
