tp-link BE9300 EAP772 Tri Band MU-MIMO Wi-Fi 7 Ceiling Mount Access Point
tp-link BE9300 EAP772 Tri Band MU-MIMO Wi-Fi 7 Ceiling Mount Access Point
Scan code: LN151808 Manufacturer code: EAP772
£167.99Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : tp-link BE9300 EAP772 Tri Band MU-MIMO Wi-Fi 7 Ceiling Mount Access Point
  • Thumbnail 2 : tp-link BE9300 EAP772 Tri Band MU-MIMO Wi-Fi 7 Ceiling Mount Access Point
  • Thumbnail 3 : tp-link BE9300 EAP772 Tri Band MU-MIMO Wi-Fi 7 Ceiling Mount Access Point
  • Thumbnail 4 : tp-link BE9300 EAP772 Tri Band MU-MIMO Wi-Fi 7 Ceiling Mount Access Point

tp-link BE9300 EAP772 Tri Band MU-MIMO Wi-Fi 7 Ceiling Mount Access Point

tp-link EAP772 BE9300 Wi-Fi 7 Access Point, 1x 2.5GbE PoE, 2.4GHz/5GHz/6GHz (5760+2880+574Mbps), 802.11 a/b/g/n/ac/ax/be

Scan code: LN151808 Manufacturer code: EAP772
£167.99
£5.48 NEXT DAY DELIVERY
Item currently awaiting an ETA
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £14.00 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £14.00
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £167.99
    Total inc. interest: £167.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Ultra-Thin Design for Flexible Deployment

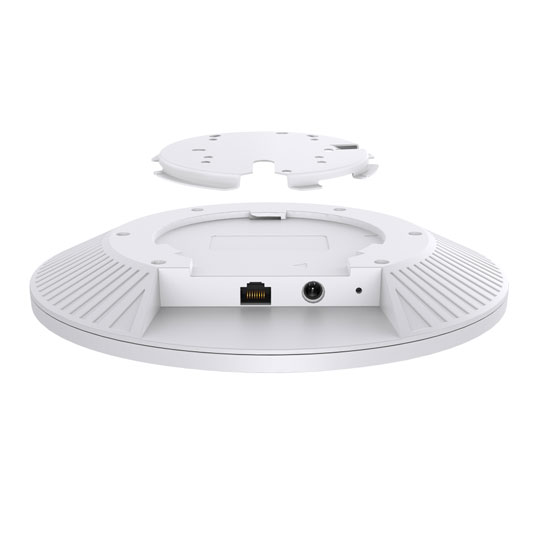

The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

Features


• BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
• Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
• 1× 2.5G Port: Unlock the full potential of Wi-Fi 7.
• 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions.
• Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
• Advanced Functions: Supports centralized management, mesh, and AI roaming.

Specifications
Networking, Connectivity & Ports
Model EAP772
Form-Factor Ceiling Mount/Wall Mount/Tabletop
Device Type Network WiFi Access Point
Compatible Internet Connections Existing WiFi Network
Network Connectivity 10/100/1000/2500
Network Ports 1 x RJ45 10/100/1000/2500 (2.5 Gigabit) for LAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections 1
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed BE9300 (5760+2880+574) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11be
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band Tri-Band
Frequency
  • 2.4 GHz
  • 5 GHz
  • 6 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna
Core Features
Features
  • Beamforming
  • Load Balance
  • MAC Authentication
  • MU-MIMO
  • Multiple SSIDs
  • Quality of Service (QoS)
  • RADIUS Client
  • Rate Limit
  • Reboot Schedule
  • Static Routing
  • Wireless Schedule
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x Reset Button
OS Support
Max. Power Consumption 24.05 W
PSU Type
Security & VPN
Security Protocols
  • Access Control
  • MAC Address Filter
  • Rogue AP Detection
  • Wireless Isolation Between Clients
  • WPA
  • WPA-Enterprise
  • WPA2
  • WPA2-Enterprise
  • WPA3
  • WPA3-Enterprise
Firewall/NAT No
Management
  • Email Alerts
  • LED ON/OFF Control
  • Management MAC Access Control
  • Omada App
  • Omada Cloud Access
  • Omada Controller Software
  • SNMP
  • System Logging Local/Remote Syslog
  • Web-based Management
VPN Support
Physical Specifications
Dimensions 220 x 32.5 x 220 mm (WxHxD)
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN151808
Model Number EAP772
GTIN 8885020623062
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
