SWIT - 'M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor'

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

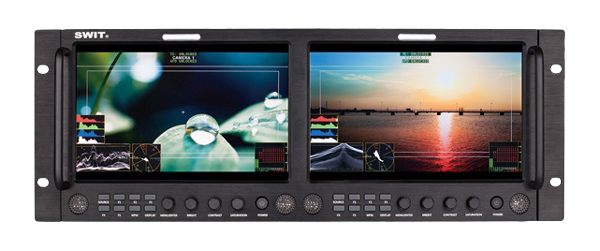

IPS Rack mount LCD monitorThe M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor is a professional-grade display. Featuring two 9-inch IPS LCD panels, each with a resolution of 1920x1200 and a contrast ratio of 1000:1, this monitor delivers stunning picture quality. Designed for easy rack mounting, the M-1093F can be rotated up to ±30° for optimal viewing angles. It supports a range of video and audio inputs, including 2K/3G/HD/SD-SDI, HDMI, and CVBS, and offers 16-ch embedded audio meters with alerts. Other features include waveform, vector scope, histogram, AFD, H/V delay, false colour, and marker displays, as well as TSL UMD and text TALLY displays, zebra stripes, peaking focus assist, SDI timecode display, and GPI control.

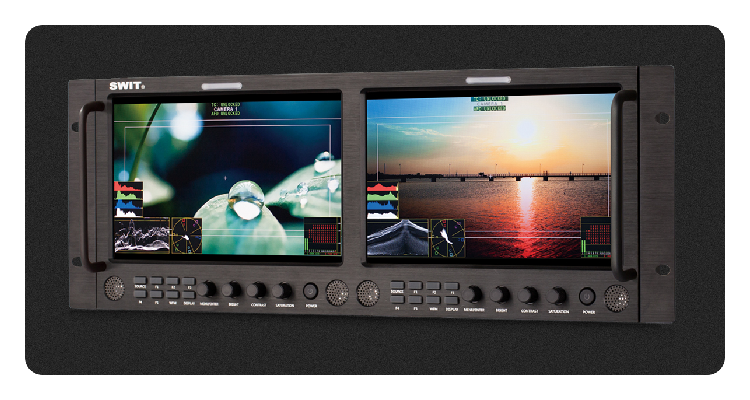

9-inch IPS LCD

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

IPS panel with LED backlightThe M-1093F adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 1000:1 contrast.
The viewing angle is Horizontal: 170° / Vertical: 170°

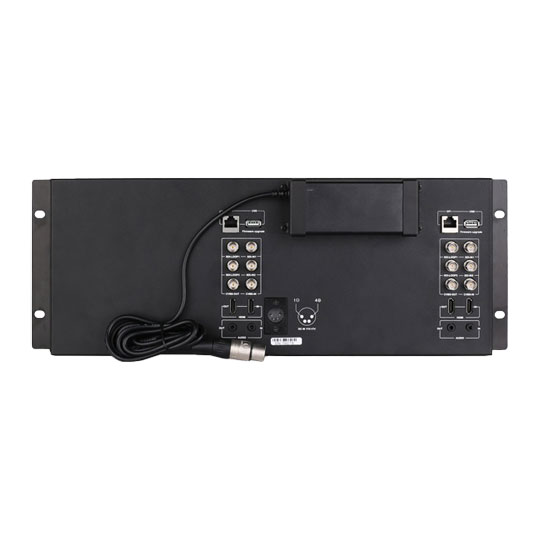

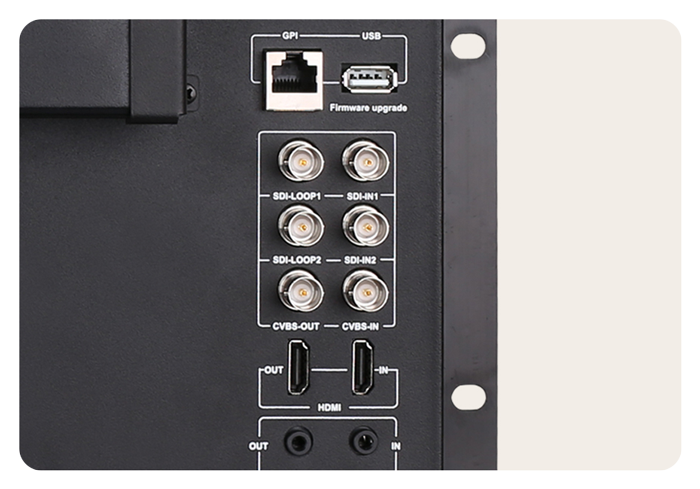

Input/Output Interfaces

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

SDI / HDMI / CVBS / Analog AudioEach LCD of M-1093F supports:

• 2K/3G/HD/SD-SDI input × 2
• 2K/3G/HD/SD-SDI loop output × 2
• HDMI 1.3 input × 1
• HDMI 1.3 loop output × 1
• CVBS input × 1
• CVBS loop output × 1
• 3.5mm analog audio input × 1
• 3.5mm analog audio output × 1

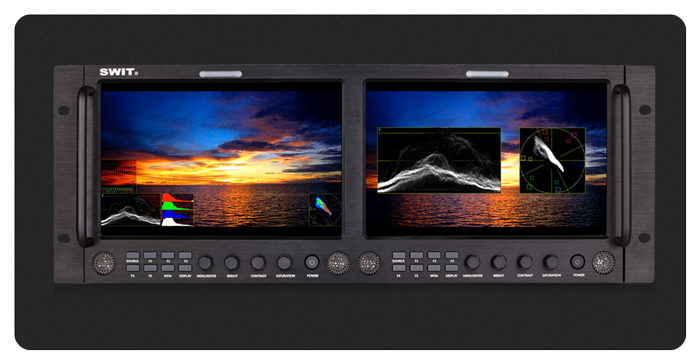

Video Analysis Assistant Pattern

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

Waveform / Vector scope / HistogramM-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Colour, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, colour, and translucence.

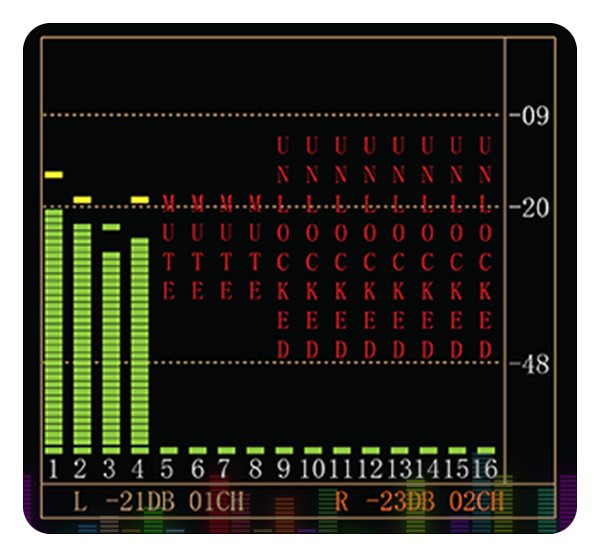

Embedded Audio Monitoring

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

Up to 16-ch meters with alert and select outputM-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

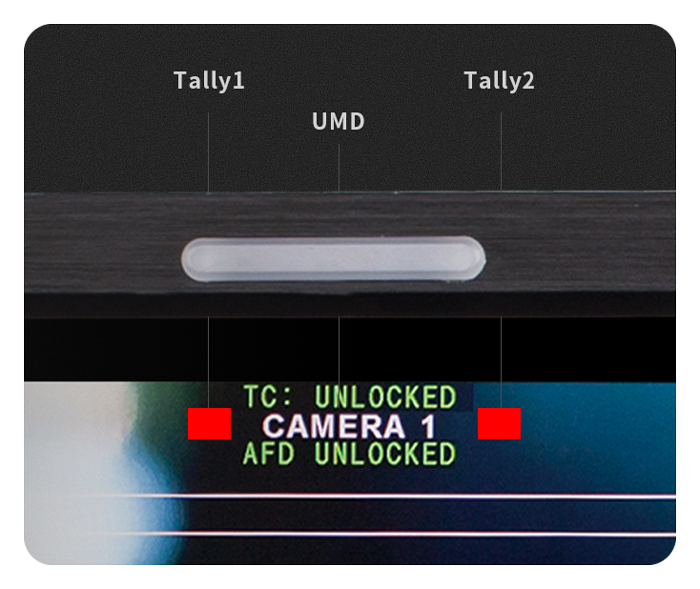

UMD And Text-Tally Display

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

TSL 3.1 / 4.0 ProtocolM-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

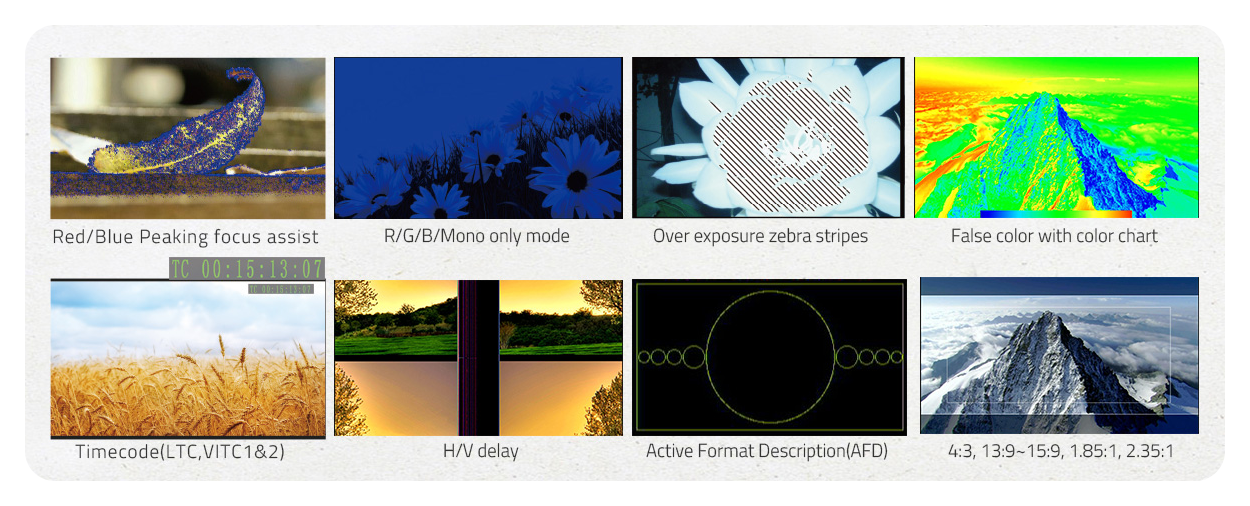

Peaking, R/G/B/Mono Only, Zebra, False Colour

Timecode, H/V delay, AFD, Scale Markers

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

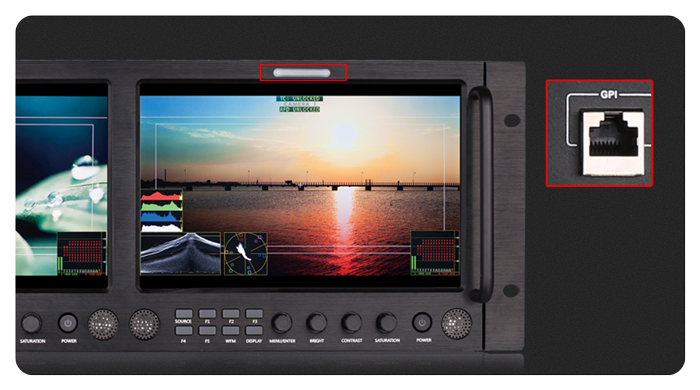

3-Colour TALLY Light

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

RJ45(RS485) input signalThere are front TALLY lights of Red, Green and Yellow colours on each screen, and users can define the pins of RJ45 port to control the TALLY lights.

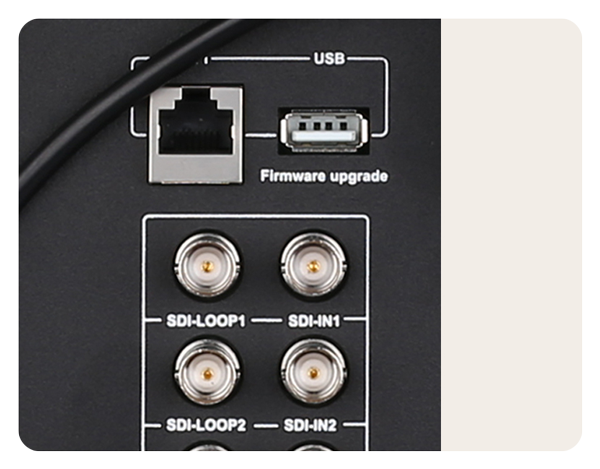

USB Firmware Upgrade

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

Rear USB Port For Firmware UpgradesThe monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1093F monitor to upgrade, without PC connection.

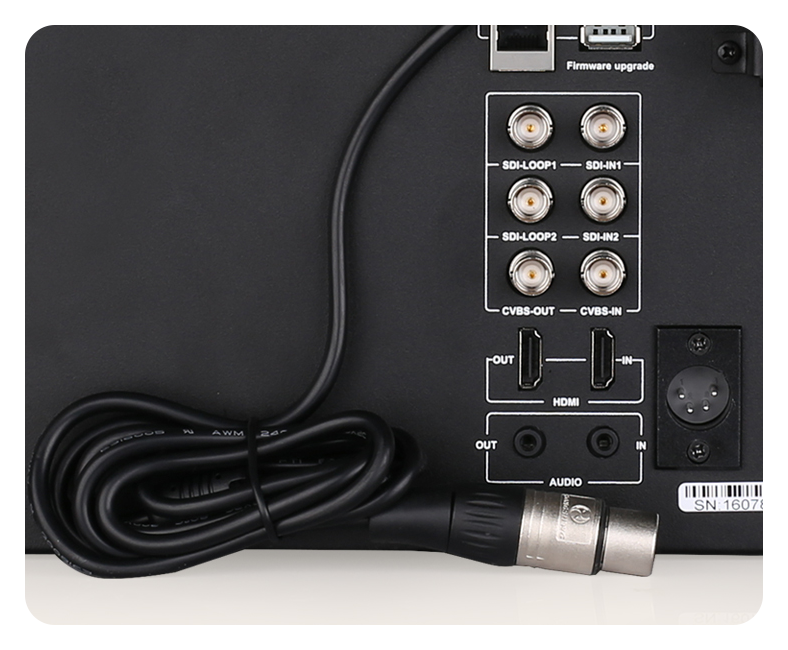

Power Supply

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

4-pin XLRM-1093F provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

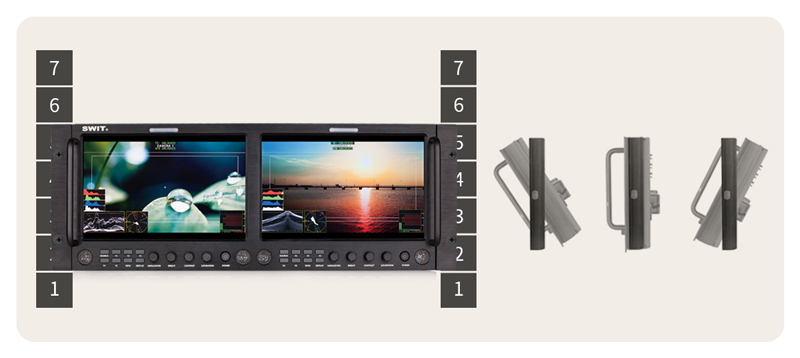

Installation

SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

standard rack mount fixingM-1093F is standard 19” rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when installed on racks.

Specifications
Screen Size 9"
Edition M-1093F
Panel Type IPS
Panel Coating
Panel Finish
Touchscreen
Backlight LED
Pitch Size
Curvature
Adaptive Frame-rate Technology N/A
NVIDIA Reflex No
HDCP No
Connectors
  • 1 x 3.5mm Audio In
  • 2 x 3G-SDI
  • 1 x Composite Video In
  • 1 x HDMI
Position Adjustment
Resolution 1920x1200 (WUXGA)
Aspect Ratio 16:9
Max. Refresh Rate
Response Time
Brightness 450 cd/m²
Viewing Angle 170 / 170 (°H/°V)
Contrast Ratio/Dynamic Contrast Ratio 1000:1
Color Gamut
Color Bit Depth
HDR Support No
Supported HDR Standards
Speakers No
Speaker Configuration
Web Camera No
Power Usage (Switched on) 36 W
VESA
3D Support No
Anti-Theft Features
Included Accessories
Monitor Colour
Dimensions (with stand)
Dimensions (without stand) 484 × 177 × 112.8 (WxHxD)
Weight (with Stand) 2.8 kg
