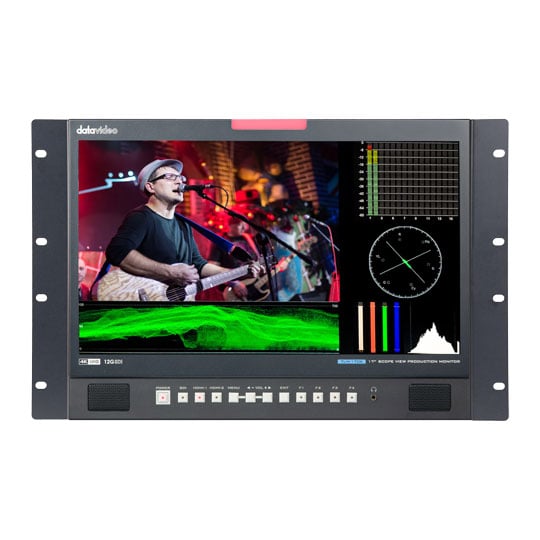

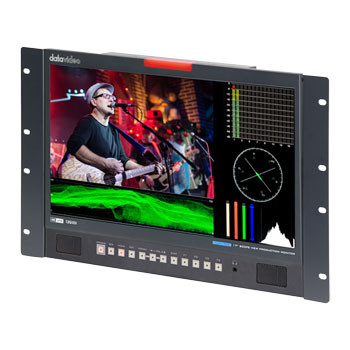

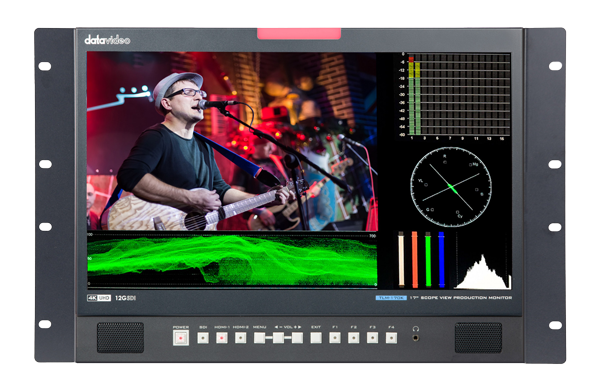

Datavideo TLM-170KR 17" ScopeView Production Monitor

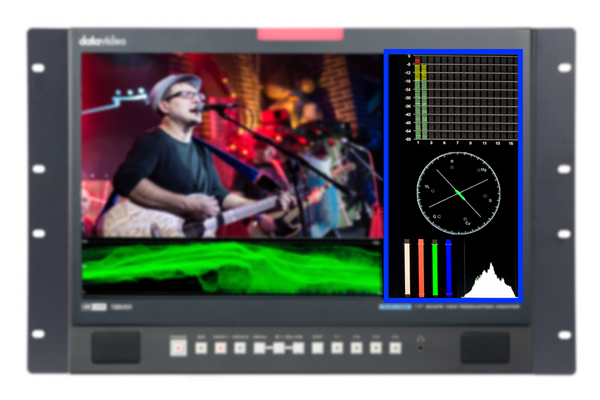

17.3'' 4K UHD Rack Mount MonitorThe TLM-170KR is a rack mount 17-inch 4k UHD LCD monitor that includes a UHD 3840 x 2160px IPS panel. Featuring a brightness of 300 cd/m2, a 1000:1 contrast ratio and a 178-degree wide viewing angle for high end performance. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output. The TLM-170K monitor series come with a wide variety of professional and helpful monitoring features to assist your workflow, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more. Also supporting HDR for HLG and SMPTE 2084. The TLM170F series are the perfect fit for your broadcast and live production needs.

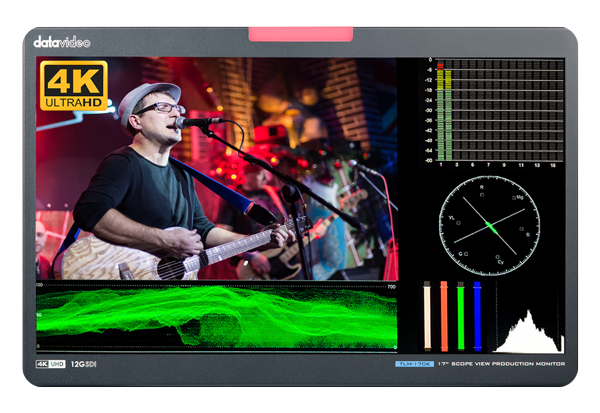

Spectacular 4K ResolutionThe TLM-170K series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HD panel. The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.

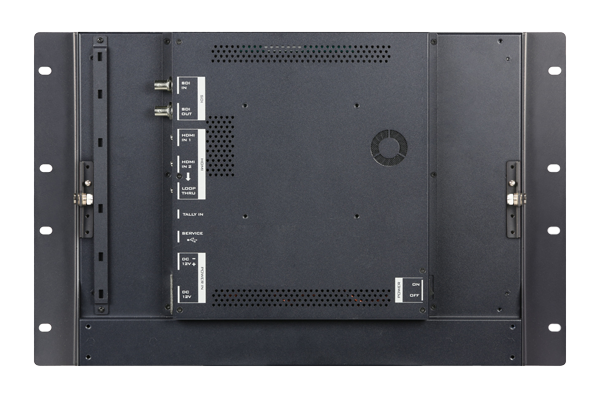

Inputs and Outputs: • 1 x 12G-SDI
• 2 x HDMI (HDMI 2.0) inputs
• 1 x 12G-SDI loop-through
• 1 x HDMI (HDMI 2.0) loop-through
