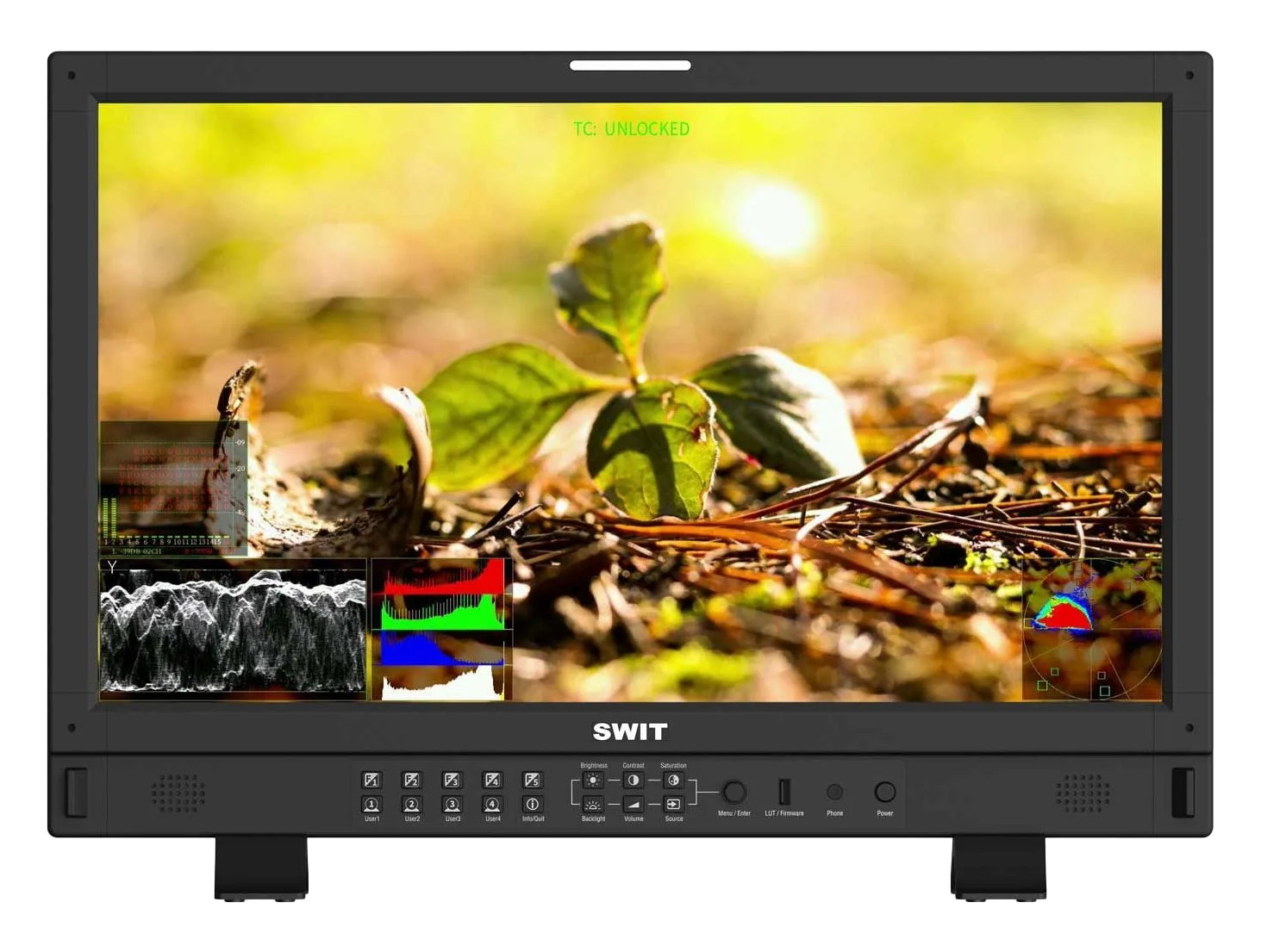

SWIT BM-U245HDR 4K 12GSDI HDR Studio Monitor
SWIT BM-U245HDR 4K 12GSDI HDR Studio Monitor, 3840×2160, 1000nits, HLG/PQ/S-log3 HDR, 91.9% DCI-P3, 12GSDI HDMI 2.0
Email me when the availability or price changes
Finance this product
- From £135.34 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £127.55 / month (APR 19.9%)
SWIT - '23.8" BM-U245HDR 4K 12GSDI HDR Studio Monitor'
4K 12GSDI HDR Studio MonitorIntroducing the SWIT BM-U245HDR 23.8-inch 4K 12GSDI HDR Studio Monitor, a powerhouse of cutting-edge features designed to deliver the ultimate visual experience. Boasting a 23.8-inch LCD panel with an impressive resolution of 3840×2160, this monitor delivers stunningly crisp and detailed images. With a high bright LED backlight emitting 1000nits bringing vibrant colours and exceptional brightness. The monitor's HLG/PQ/S-log3 HDR capabilities, combined with Payload ID auto setting, ensure unparalleled dynamic range and accurate colour reproduction. Equipped with 12GSDI 4-in 4-out and HDMI2.0 input, this monitor is ready for 8K input, while the optional SFP Fibre input expands its connectivity options. Experience seamless audio/video synchronization with zero latency and built-in Multi camera Delog LUTs. The BM-U245HDR also offers advanced features like waveform, vector, and histogram displays, as well as focus assist, false colour, and zebra tools. With its user-friendly interface and USB firmware upgrade capabilities, this monitor is a versatile companion for any professional.

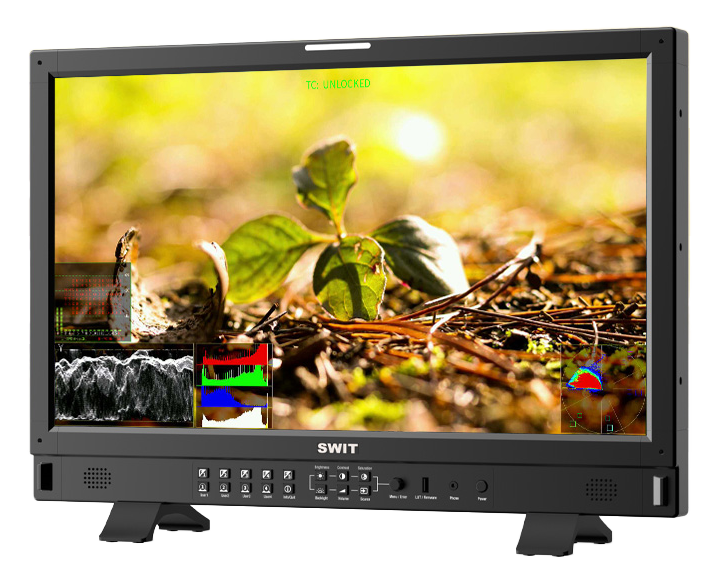

23.8-Inch 1000nits 4K
UHD panel, 89% REC2020BM-U245HDR adopts a 23.8-inch 10-bit LCD panel, UHD 3840×2160 resolution, 1000nits LED backlight, 1000:1 contrast, 91.9% DCI-P3 and 89% Rec2020 colour gamut. The viewing angle is H178° / V178°.

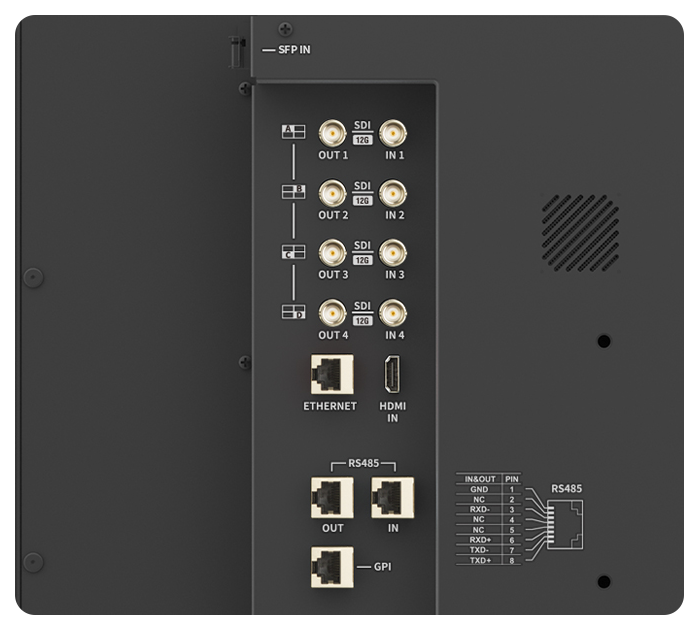

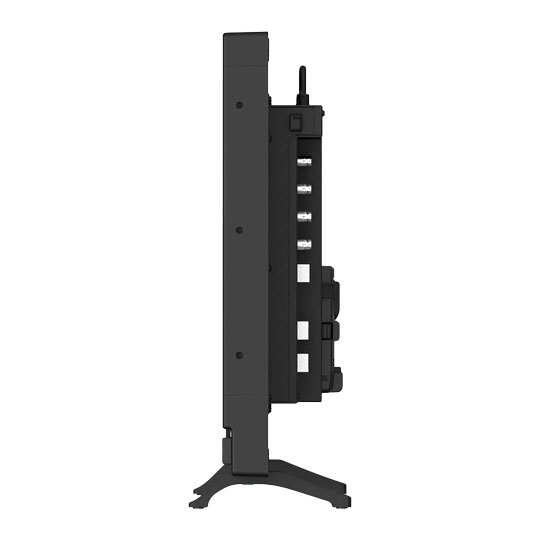

Multi 4K/8K Interfaces
Interfaces12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)
Display Modes
4K/8K InputsSupports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, colour gamut selection for each input.
Single Link 4K Inputs12GSDI, HDMI2.0, SFP
Quad Link 4K Inputs4x 3GSDI (SQD or 2SI)
Quad Link 8K Inputs4x 12GSDI (SQD or 2SI)

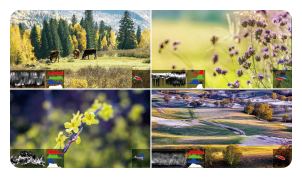

Mixed Inputs Multiview4 independent video inputs of 12G/6G/3G/HD-SDI or HDMI mixed
HLG/PQ/S-Log3 HDR
HDRBM-U245HDR has a native 1000nits high bright backlight LCD panel, and supports HLG (Hybrid Log Gamma), Dolby Vision PQ and SONY S-Log3 HDR monitoring.
Payload ID Auto Setting
Payload IDSupport input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Colour Gamut, Input range, Colour space and Colour depth according to the Payload ID info.

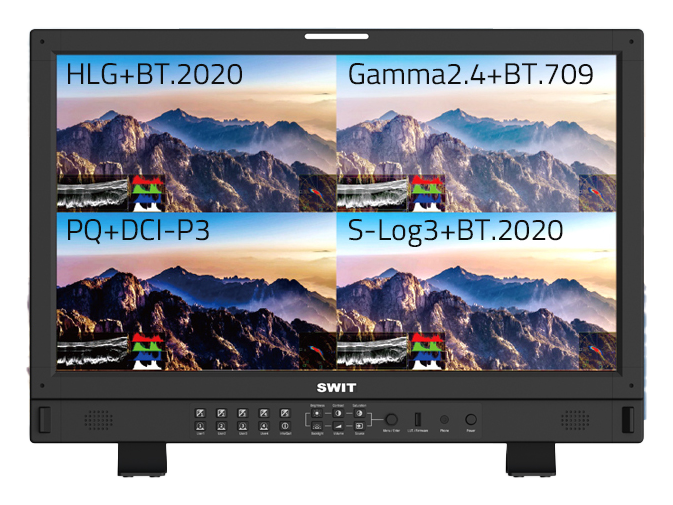

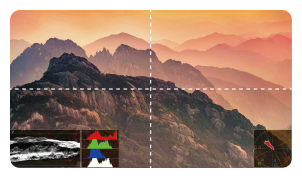

Multi CG And EOTF Viewing
4 in 1 displaySupports 1 input source copied to 4 windows and display different HDR/SDR and coloyr gamut simultaneously. You can get correct reference when producing HDR and SDR together.

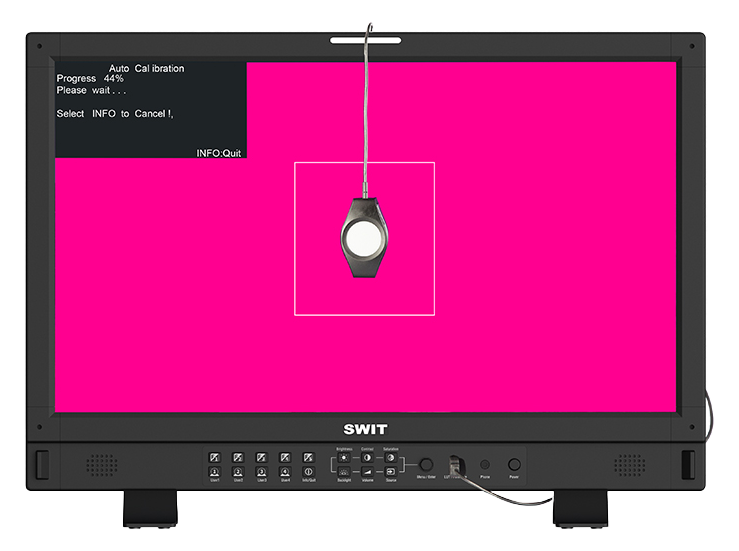

3DLUT Auto Self-Calibration
X-rite i1 or JETI Specbos 1211BM-U245HDR has a native 1000nits high bright backlight LCD panel, and supports HLG (Hybrid Log Gamma), Dolby Vision PQ and SONY S-Log3 HDR monitoring. With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates colour patterns and the colour probes read the colour, send colour info to monitor via USB. Then the monitor compares the colour difference and generate 3DLUT and calibrate itself automatically.
Calibration time: X-rite i1 15min, Specbos 1211 45min
Calibration result: ∆E≤1.0
Audio/Video Zero Latency
Zero latency modeSupport Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.

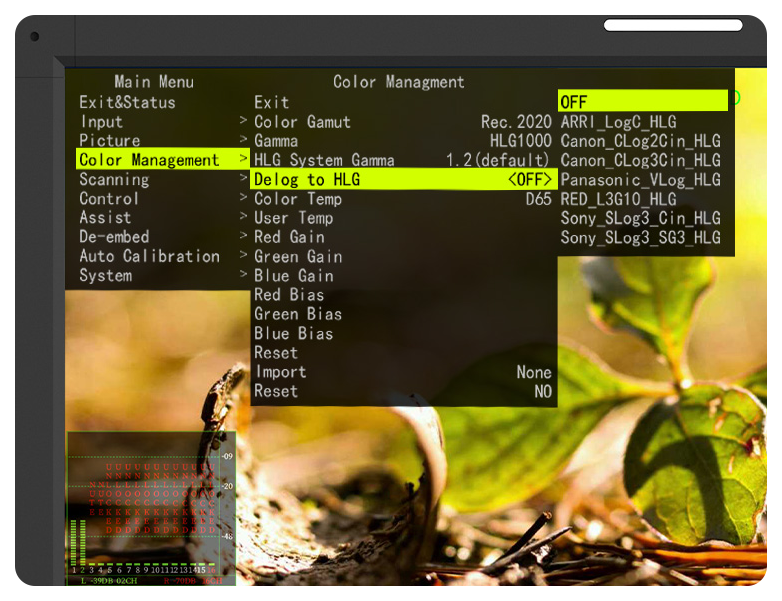

HDR/SDR De-log LUTs
multi camera logsThe monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.
You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.
Audio Patterns
audio meters displayMax 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket. Moreover, BM-U monitors support Lissajous and 5.1+2 surround sound patterns.

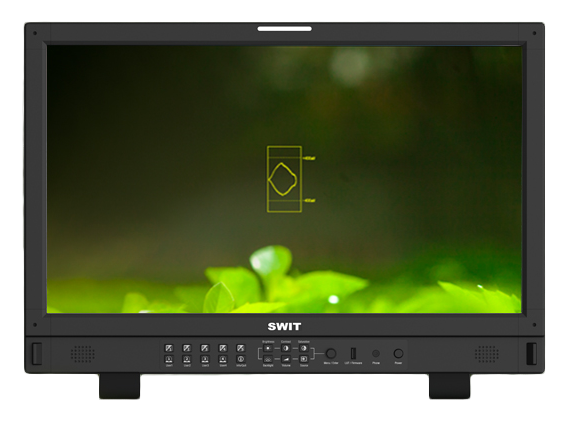

Eye Pattern
eye patternBuilt-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality.

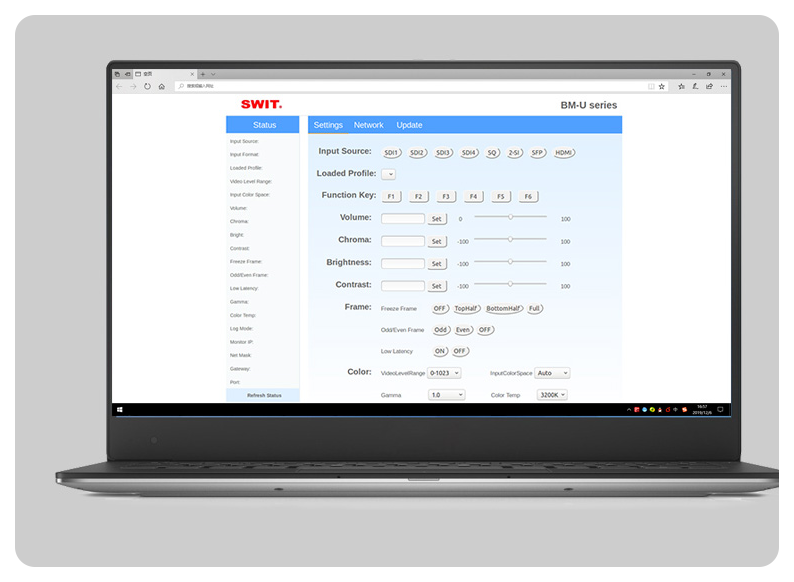

Webserver IP Remote Control
webserver remote controlBM-U245HDR supports webserver remote control by Ethernet LAN connection. Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.
