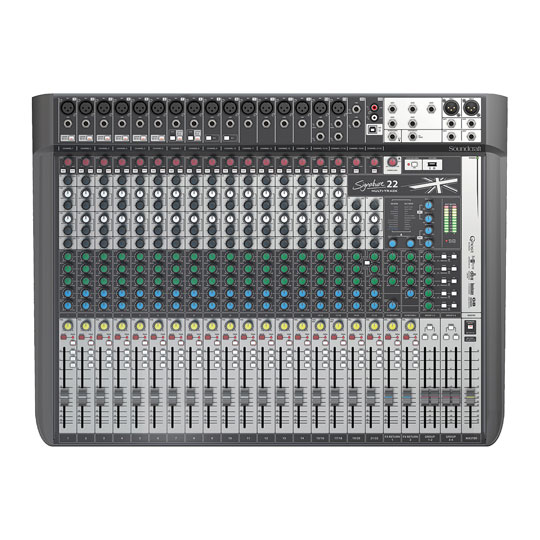

Soundcraft Signature 22MTK Analogue Mixer

Soundcraft Signature 22MTK 22-Channel Analogue Mixer, 100mm Faders, Ghost Mic Preamps, 4-Band Sapphyre EQ, DBX Limiters

Thumbnail 1 : Soundcraft Signature 22MTK Analogue Mixer Thumbnail 2 : Soundcraft Signature 22MTK Analogue Mixer Thumbnail 3 : Soundcraft Signature 22MTK Analogue Mixer Thumbnail 4 : Soundcraft Signature 22MTK Analogue Mixer Soundcraft Signature 22MTK Analogue Mixer : video thumbnail 1 Soundcraft Signature 22MTK Analogue Mixer : video thumbnail 2
Scan code: LN84694 Manufacturer code: SCR0599
FREE DELIVERY ON YOUR ENTIRE BASKET
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Soundcraft - 'Signature 22MTK'
Analogue Mixer

soundcraft signature 22mtk

Create Your Signature MixThe Soundcraft Signature 22MTK features Soundcraft’s legendary Ghost mic preamps, taken directly from their top-of-the-line professional consoles, to provide incredible audio quality with plenty of headroom, wide dynamic range and immense resolution and clarity with an impressive signal to noise ratio. Soundcraft’s Sapphyre Assymetric EQ are found inside for perfectly equalizing every vocal and instrumental characteristic in a mix with the unmistakable musicality you find in every Soundcraft console, alongside the GB Series audio routing technology famous in thousands of live venues across the world.

22Channels

4-BandSapphyre EQ

16Preamps

Amazing Features • High-Performance 22-input small format analogue mixer with onboard effects and multi-track USB recording and playback
• Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
• Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
• Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
• 24-in/22-out ultra-low latency USB playback and recording interface

Built-In Effects

soundcraft signature 22mtk

Seamless IntegrationThe 22MTK includes a wide range of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The console’s multi-track USB audio interface also allows any VST/AU/AAX/TDM/RTAS plug-ins to be added to any input channel.

Allowing studio plug-ins to be seamlessly integrated with live performances. Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 9 Lite.

Pristine Quality Throughout

soundcraft signature 22mtk

Flawless RecordingThe console is designed to capture recordings in pristine quality. Both feature an ultra-low-latency USB interface that captures every channel flawlessly and can then be mixed or transferred to a DAW for additional mixdown and production.

The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be connected directly.

Versatile Routing

soundcraft signature 22mtk

Dedicated OutputsThe Soundcraft Signature 22MTK comes with smooth, premium-quality faders with GB® Series audio routing with versatile pre/post switching on each Aux, and subgroups with powerful routing and switching options along with dedicated outputs.

Both the Soundcraft Signature 12MTK and Soundcraft Signature 22MTK are made using tour-grade robust metal construction and top-quality components. Both have an internal universal power supply.

Soundcraft Signature Series Overview

The Tech Spec

Features Specification
Channels 22
Soundcraft® Ghost Preamps 16
Soundcraft® Sapphyre EQ 4-band (2 bands of swept mids)
dbx® Limiters on inputs 8
Lexicon® Effects Dual Engine
USB Interface 2-in/2-out (24-in/22-out on 22 MTK)
Auxes 5
Subgroups 4 mono/2 stereo
Faders 100mm
Dimensions Height: 109mm (4.3")
Width: 490mm (19.3")
Length: 660mm (26.0")
Weight 11.36kg (25.1lb)
Specifications
Total Channels 22
Max Mic Inputs 16
Computer Interface USB 2
Mixer Type Analogue
Computer Interface Channels 24
Total Aux Channels 5
Subgroups 4
Max Line Inputs 20
Analogue Insert Points No
Direct Channel Outputs
Internal FX Yes
Flying Faders No
Additional Information
Scan Code LN84694
Model Number SCR0599
GTIN 668705001199
