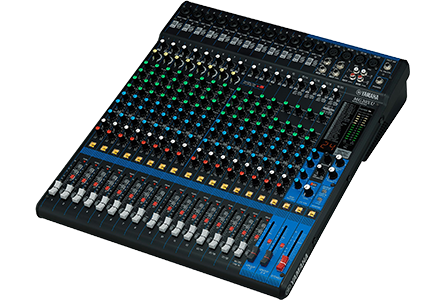

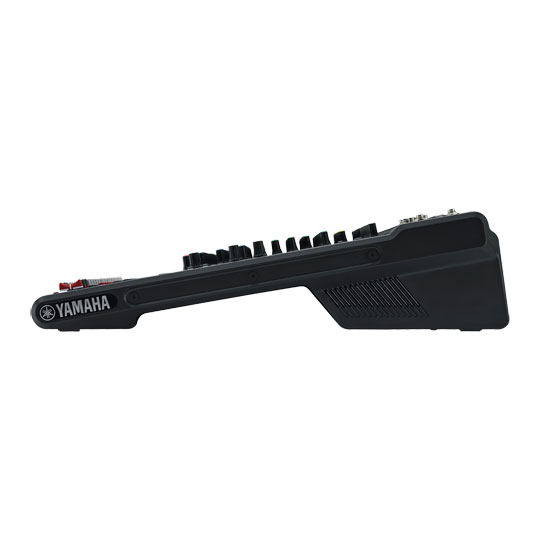

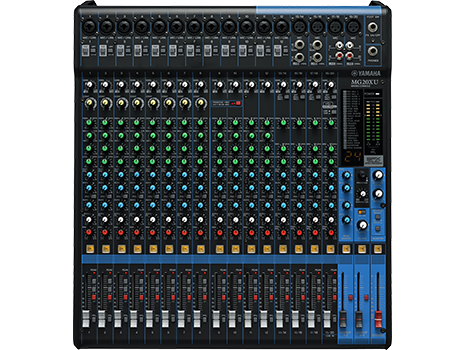

Yamaha MG20XU, 20-Channel Mixer With USB & FX
Yamaha MG20XU, 20-Channel Analogue Mixer, 16 Mic / 20 Line Inputs (12 mono + 4 stereo), 4 GROUP Buses + 1 Stereo Bus
20-Channel Mixing Console
Yamaha - MG20XU
Road Tough. Studio Ready.For over 100 years, Yamaha has been at the forefront of superior craftsmanship and innovation, all of which is clearly displayed and exemplified across the entire range of products. From an unmatched collection of world-class musical instruments to tour-grade pro audio.
Now in its 3rd generation, Yamaha’s MG Series is the manifestation of excellence in design, and showcases some of the same technologies which have been developed for use in high-end consoles, including studio-grade preamps, powerful digital processing and a tough, road-ready construction.
Featuring a highly intuitive and simple-to-use user interface, the MG Series boasts a broad range of compact mixing desks with models ranging from 6 to 20 channels, each suitable for a broad range of uses and applications. For installed, recording or live music settings, the MG Series tough construction and flexible design of this range allows you to fine-tune your sound with unbridled confidence, continuously delivering unmatched performance and a level of sound quality which is simply unrivalled in its class.
20Channels
16 + 2 + 1Faders
1 x 1/4"Headphones
at a glance
• 20-Channel Mixing Console
• Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 1-Knob compressors
• “D-PRE” mic preamps with an inverted Darlington circuit
• High-grade effects: SPX with 24 programs
• 24-bit/192kHz 2in/2out USB Audio functions
D-PRE Preamps
natural-sounding bass and smooth highsNeither the audience or the engineer wishes to listen to mics that are connected to thin, distorted or generally poor preamps. Yamaha’s MG Series mixers uniformly feature Yamaha’s ultra-transparent D-PRE preamps, which offer greater power with lesser impedance, serving up wonderfully organic sounding bass and clear highs.
D-PRE preamps offer a professional and high-grade sound, without ever adding unwanted colouration to your mix. These high-quality of these preamps ensure that you won’t need to spend hours tweaking and adjusting just to achieve an acceptable sound.
The Tech Spec
Features | Specification | Type | Analogue |
---|---|
Channels | 20 |
Computer Connectivity | USB (2 x 2) |
Faders | 16 + 2 + 1 |
Inputs - Mic Preamps | 12 x TRS/XLR Combo, 4 x XLR |
Phantom Power | 20 |
Inputs - Line | 4 x TRS, 4 x RCA |

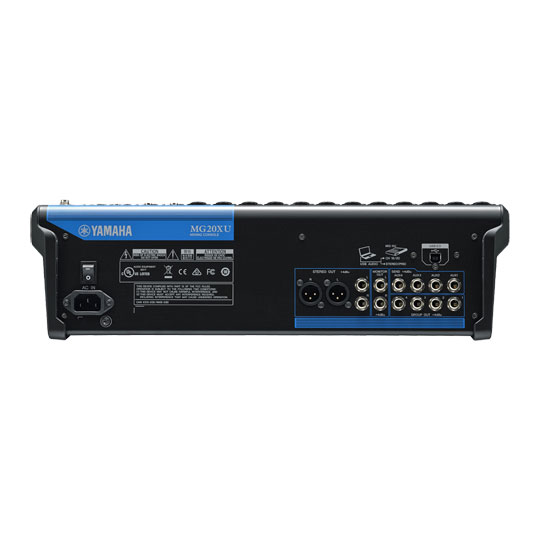

Outputs - Main | 2 x XLR, 2 x TRS |
Outputs - Direct | 2 x TRS (Monitor) |
Outputs - Other | 4 x TRS (Bus) |
Aux Sends | 2 x Pre/Post, 2 x Post |
Send/Return I/O | 4 x TRS (Sends) |
Busses/Groups | 4 x Bus |
Headphones | 1 x 1/4" |
USB | 1 x Type B |
EQ Bands | 3-Band, Sweepable Mid |
Effects | Yes |
Rackmountable | Yes | Height | 5.1" |
Width | 17.5" |
Depth | 19.7" |
Weight | 15.7 lbs. |
