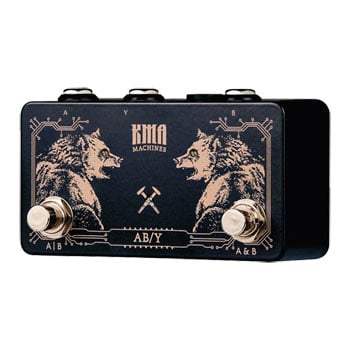

KMA Machines - ABY pEDAL
consistent connectivityAn ABY pedal may sound simple, but what a good ABY pedal can do, is start something that will truly inspire your creativity, and this ABY pedal is a REALLY GOOD one. Expertly built, noise-free, gorgeous looks and affordable – it just ticks all the boxes.
If you’re looking to switch or combine your mono input signal using two separate outputs, or switch or combine two separate input signals into one output, the KMA Machines ABY pedal is a little helper you can rely on for your tonal quest. Created with a focus on durability, reliability, simplicity and hassle-free operation, this passive ABY switcher also features True Bypass active silent relay-based soft switching to reduce mechanical noise and unwanted pops and clicks when in use. So, all you have to do is choose your path and perform!
This pedalboard-friendly device seamlessly integrates with your existing setup. It’s compact, rugged, lightweight, durable, affordable and can be powered via a standard 9V DC power supply, making it convenient for all walks of sonic life.
At A Glance
• Passive ABY pedal with active switching
• Sends an input to two separate outputs, separately or combined
• Sends two inputs to one source, separately or combined
• Active silent relay-based soft switching, heavily reduces mechanical noise and pops
• Omnidirectional for 2 into 1 or 1 into 2 operation
• Distinct LED colours, to indicate your selected signal path at a glance
• Durable compact enclosure for years of reliable switching
• Top-mounted jacks, will fit into any setup
• True Bypass switching
• Made in Berlin, Germany
The Fate of Your Signal is in Your Hands!
Quality componentsKMA’s ABY pedal features a fully passive design for the best signal integrity. True Bypass active silent relay-based soft switching means the audio signal itself is entirely untouched and without any colouration. Plus, you can use the device in either direction, for sending to different sets of amps or effects or for switching inputs/instruments/devices into your chain. However, the actual switching is taken care of by our reliable and sturdy soft switches as a separate active circuit.
Switch AwayBy employing this switching technology, mechanical noise is greatly reduced, as is the risk of those pesky loud clicks and pops that have plagued so many boards and has haunted so many musicians, since the inception of ABY boxes.

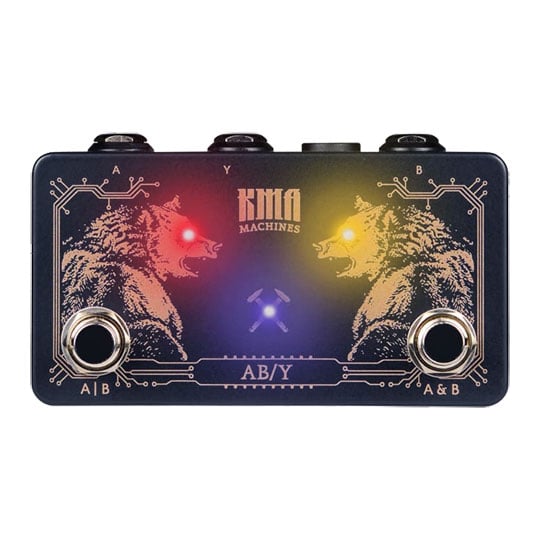

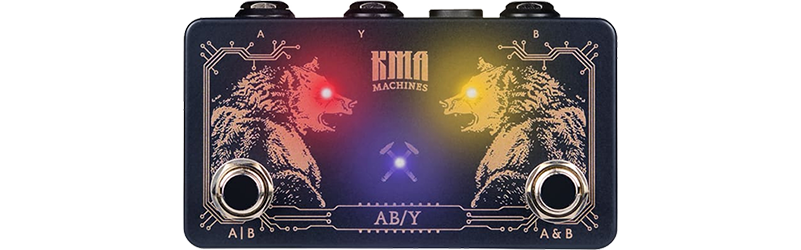

Colour Your WorldThe bears eyes light up! Besides just looking cool and fulfilling your childhood dreams of an army of robot bears with freaking lasers as eyes, the 3 distinct LEDs actually serve a practical purpose; to quickly and easily show you what signal path you’ve selected at a glance.
KMA Machines ABY and STEREO ABY pedals
Consistent Connectivity (passive with active switching)
The Tech Spec
| Features | Specification | Product Type | Passive ABY pedal with active switching |
|---|---|
| Bypass Type | True Bypass |
| Power Supply Requirements | 9 V DC – Centre (-) negative 2.1mm |
| Current Draw (max) | >40 mA |
| Product Dimensions | H: 56 mm / 2.21 inch W: 112 mm / 4.41 inch D: 65 mm / 2.56 inch |
| Weight | 185 g / 6.53 ounces |
