SYSTEM Offer
Scan code: LN141486 Manufacturer code: JONGOMM

Jon Gomm Special Edition Workstation

Jon Gomm Special Edition Workstation

Thumbnail 1 : Jon Gomm Special Edition Workstation Thumbnail 2 : Jon Gomm Special Edition Workstation Thumbnail 3 : Jon Gomm Special Edition Workstation Thumbnail 4 : Jon Gomm Special Edition Workstation
Scan code: LN141486 Manufacturer code: JONGOMM
RRP: £2,499.98
£2,399.99Stock arrives 4-6 days from time of order
ETA 4-6 days
FREE DELIVERY ON THIS ITEM
From £67.67 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £217.44
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,399.99
Total inc. interest: £2,609.18
Monthly Payment: £117.19
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,399.99
Total inc. interest: £2,812.47
Monthly Payment: £84.05
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,399.99
Total inc. interest: £3,025.43
Monthly Payment: £67.67
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,399.99
Total inc. interest: £3,248.10
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £63.78 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

3XS Project DAW

This specification was originally designed and built for singer-songwriter & performer Jon Gomm, who’s renowned for his percussive techniques on acoustic guitar. Often capturing and streaming performances online of his intricate playing style, there was a requirement for not only a system capable of recording and processing audio but also with the need for great video handling and all within a whisper quiet package.

We’ve based the system around the superb Fractal North case, where its design introduces natural materials and wood finishes to offer a case that stands out visually as well as it performs. With an open high airflow design, we can go a step further and remove the stock case fans, whilst its layout continues to help ensure that our convection-based cooling can still naturally allow the air to circulate within the system.

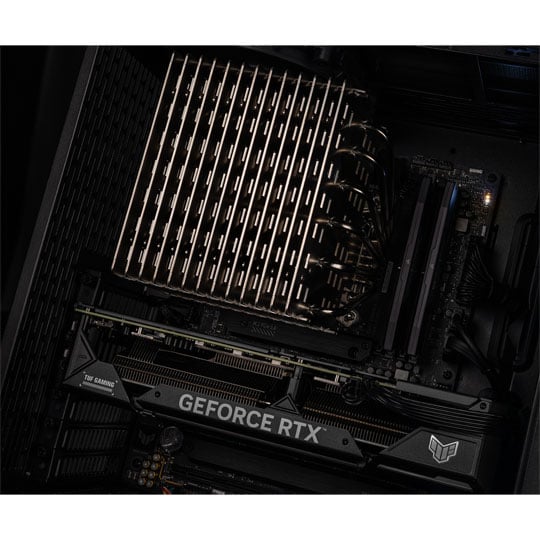

To drive the set-up, we choose an AMD 7900 CPU, notable for its high-performance and low power draw even under the heaviest of loads. The CPU’s low power requirement allows us to run it passively, matched here with a fanless Noctua NH-P1 cooler, offering a great combination that cools effectively with no added system noise.

To take care of the video handling, we’ve selected a NVidia 4070 GPU with 12GB to run any heavy editing sessions. The card is semi-passive, spinning down the fans when under lighter processing loads, perfect for recording close by with sensitive microphones, whilst still ensuring it can spin up to support more intensive video editing tasks in post-production.

Storage is taken care of with two high-performance NVMe SSD drives totalling 3TB of capacity and a healthy 64GB of RAM, ensuring its capable of tackling even the largest of multi-media projects. With another pair of RAM slots, up to two more NVMe and four possible additional SSD drives, you can be sure that as your needs continue to grow, this system will continue to offer you a number of further upgrade options to help customize your setup as required.

Complete with a fully passive Seasonic PSU the only moving component outside of the semi-passive GPU, is a single low RPM be quiet Silent Wings 4 fan, itself with an advised noise rating reaching just 13db under full load. This fan helps to pull the air up through the system and pass the GPU, ensuring great circulation without any distracting noise coming from within the system.

The overall choice of parts results in a unique combination that gives you an extremely low noise design, along with a selection of high-performance components that result in the perfect system to tackle any task in a modern recording studio.

The models found in our ready to ship series are all fully tested and configured to ensure the widest compatibility possible with common studio software programs, and to ensure the smoothest of experiences when running your studios crucial studio applications. During this initial validation phase, we test with all the popular audio sequencers including industry leaders such as Cubase, Pro Tool, Sonar, Studio One, Ableton, Bitwig, Reaper and FL Studio in order to ensure the widest compatibility straight out of the box. This means that once you receive your system, you will be able to set it up along with your audio interface & software of choice and be ready to go with the absolute minimum of fuss.

The 3XS Passive DAW is pre-built and ready to ship for next-day delivery and comes with Windows 11 Home preinstalled and a premium 3-year warranty.

System Performance

See how this PC performs in these popular pro audio benchmarks.

DAWBench testing is carried out within Reaper and audio benchmarks are obtained using an RME Babyface audio interface.

DAWBench DSP
ASIO Buffer Setting Plugin Instances Achieved
64 355
128 396
256 435
512 459
DAWBench VI
ASIO Buffer Setting Polyphony Achieved
64 2020
128 3380
256 5040
512 7420
Cubase
ASIO Buffer Setting Track Instances Achieved
64 134
128 136
256 137
512 139

Key Features

Intel CPU
AMD PROCESSOR

CPUs handle the sound generation and audio processing, making both a high clock speed & core count important.

CINEBENCH R20
LATENCY TESTED

System responsiveness is important for achieving the best recording experience.

CINEBENCH R20
ASIO READY

Tested and optimized for your D.A.W software and pro-audio hardware.

CINEBENCH R20
Quiet Components

High quality cooling components are chosen to ensure a low noise profile.

CINEBENCH R20
Multi Monitor Support

This system supports up to 4 monitors to boost productivity.

OCT Platinum
OCCT Platinum Certified

Each 3XS system is rigorously tested to ensure maximum stability.

Ai Copilot
Microsoft Copilot

Your everyday AI companion built for creativity and boosting your workflow.

Specifications

Component Description
Chassis Fractal North
Motherboard ASUS TUF X670E PLUS WIFI
Processor AMD Ryzen 9 7900, 12C/24T, 3.70GHz – 5.40GHz
CPU Cooler Noctua NH-P1
Memory 64GB (2x32GB) Corsair Vengeance 5600MHz DDR5
Graphics Card 12GB ASUS GeForce RTX 4070 DUAL OC
Power Supply 500W Seasonic PRIME PX Fanless - 80PLUS PLATINUM
System Drive 1TB Samsung 980 Pro NVMe SSD
Project Drive 2TB Samsung 980 Pro NVMe SSD
Operating System Microsoft Windows 11 Pro
Recovery Media Recovery USB drive with system image and diagnostic software
Accessories 3XS Branded Corsair MM300 Mouse Pad, 3XS Mug & Cable Tie
Warranty & Support 3 Year Premium (Parts & Labour) Warranty - 1st Year Onsite, 2nd & 3rd Return to Base, including dedicated audio specialist support.

Connectivity

USB

2 x USB 2.0 Type-A
6 x USB 3.1 Gen1 Type-A
4 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen2x2 Type-C

Display

3 x DisplayPort 1.4a
1 x HDMI 2.1

Ethernet

Realtek 2.5 Gigabit LAN

Wi-Fi

Intel WiFi 6E
Bluetooth 5.2

Why buy a 3XS Audio Workstation?

Anyone can build a PC, so what really makes the difference between any old PC and a 3XS PC? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. Here are the key reasons to buy a 3XS Video Workstation.

7 Days Support 7 Days Support

Our engineers are available 7 days a week to help with any queries.

FIND OUT MORE
Awards and Reviews Trusted by you

3XS Workstations have won hundreds of awards in the media.

VIEW ALL REVIEWS
Next-day Delivery Next-day delivery

3XS Workstations are pre-built and tested in our factory to be delivered next-day.

VIEW NEXT-DAY PCs
3 Year Warranty 3 years warranty

3XS Workstations include a three-year warranty, so if anything goes faulty we’ll repair or replace it.

FIND OUT MORE
Returns 30 Day return Policy

If you’re not totally satisfied with your 3XS Workstation you can return it up to 30 days after delivery.

FIND OUT MORE
Specifications
Processor
CPU Type AMD Ryzen™ 9
CPU Model 7900
Professionally Overclocked No
CPU Speed 3.7 GHz
CPU Boost/Turbo Speed 5.4 GHz
CPU Overclock Speed
CPU Cores 12 Core
CPU Threads 24
CPU Cooler Passive Air Cooler
Motherboard
Motherboard Chipset AMD X670E
Motherboard Form Factor ATX
RAM Memory
Memory 64GB (2x32GB)
Memory Type DDR5
Memory Speed DDR5 - 5600
Empty DIMM Slots 2 Slots
Graphics
Graphics NVIDIA
Graphics Chipset GeForce RTX 4070
GPU Cores/Streams 5888
GPU Core Clock 1920 MHz
GPU Boost Clock 2475 MHz
GPU Memory 12GB
GPU Memory Type GDDR6X
GPU Memory Clock 21000 MHz
Memory Bit Rate 192 Bit
Maximum Supported Displays 4 Displays
Storage Drives
SSD Boot Drive Installed Yes
SSD Boot Drive Type M.2 PCIe (NVMe)
SSD Boot Drive Capacity 3000 GB
Hard Drive Installed No
Hard Drive Type
Hard Drive Capacity
Maximum 2.5" Bays
Maximum 3.5" Bays
Additional Specifications
Operating System Windows 11 Pro
Wireless LAN Yes
PSU Wattage 600 W
Colour Black
Case Form Factor Mid Tower
Dimensions (Tower) 215 x 469 x 447 (WxHxD)
Optical Drive N/A
Benchmarks
Latency Monitor
DAWbench DSP
DAWbench VI

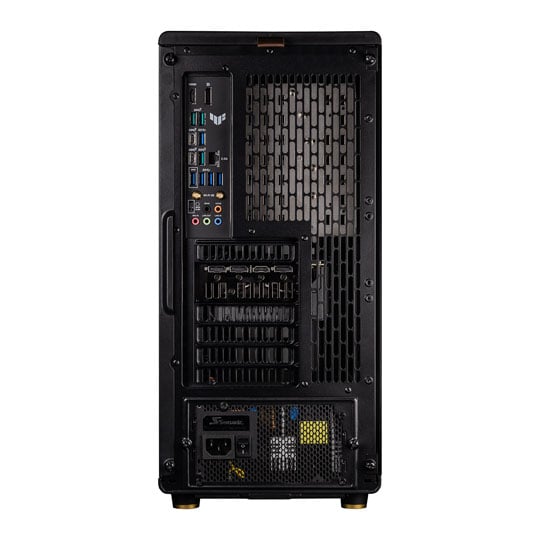

I/O
Back Panel
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 5 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.3
  • 2 x WiFi Antenna connectors
Front / Side Panel
  • 1 x HD Audio
  • 1 x Mic In
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-A
Additional Information
Scan Code LN141486
Model Number JONGOMM
GTIN 5055948941361
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
36 months
