3XS Passive DAW

3XS Passive DAW, AMD Ryzen 9 7900, 64GB DDR5, 1TB M.2 SSD, 2TB M.2 SSD, Win 11

Thumbnail 1 : 3XS Passive DAW Thumbnail 2 : 3XS Passive DAW Thumbnail 3 : 3XS Passive DAW Thumbnail 4 : 3XS Passive DAW
Scan code: LN140368 Manufacturer code: PSIVEDAWR964GB
£1,729.99Stock arrives 4-6 days from time of order
ETA 4-6 days
From £48.78 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £156.74
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,729.99
Total inc. interest: £1,880.75
Monthly Payment: £84.48
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,729.99
Total inc. interest: £2,027.31
Monthly Payment: £60.58
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,729.99
Total inc. interest: £2,180.87
Monthly Payment: £48.78
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,729.99
Total inc. interest: £2,341.27
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £45.97 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

3XS Passive DAW

Our 3XS Silent DAW range all feature a selection of passively cooled components and hardware choices that ensure there are no moving parts found within these systems. The range features CPU’s from AMD’s powerful yet efficient high-end Ryzen range, with this model featuring the Ryzen 7 7900 12C/24T CPU solution for superb performance in even the quietest of recording spaces.

As our more expanded Ryzen 7900 CPU based option this system has 64GB of Corsair memory included, which not only makes it great for recording and editing, but also offers strong support for those working equally in the box with large sound libraries. We also ensure that we leave you two additional memory slots free, just so that if you should wish to expand further in the future then you will have an easy upgrade route ready and waiting. The board can handle a total of 96GB of RAM, ensuring it can be expanded to meet the needs of most users for many years to come. ‌

For the storage drives we also double the available space, when compared to our other passive Ryzen 7900 based model. For the OS drive, we include a super quick 1TB Samsung 980 PRO PCIe 4.0 NVMe M.2 SSD drive for your Windows installation and audio applications, which should have plenty of space to host your sequencer of choice as well as all of your plugins. Alongside that OS drive, we have a secondary 2TB Samsung 980 PRO PCIe 4.0 NVMe M.2 SSD, perfect for all of your large sound libraries in order to speed up project load times and your instrument browsing. Should you also wish to migrate over your old project drives or if you want to just ensure that you will be able to add in additional storage in the future, then rest assured that this system has another 2 M.2 drive mounts along with 4 additional SATA drive connections making it certain to be able to accommodate all those too.

The models found in our ready to ship series are all fully tested and configured to ensure the widest compatibility possible with common studio software programs, and to ensure the smoothest of experiences when running your studios crucial studio applications. During this initial validation phase, we test with all the popular audio sequencers including industry leaders such as Cubase, Pro Tool, Sonar, Studio One, Ableton, Bitwig, Reaper and FL Studio in order to ensure the widest compatibility straight out of the box. This means that once you receive your system, you will be able to set it up along with your audio interface & software of choice and be ready to go with the absolute minimum of fuss.

The 3XS Passive DAW is pre-built and ready to ship for next-day delivery and comes with Windows 11 Home preinstalled and a premium 3-year warranty.

If this isn't exactly what you are looking for you can use our 3XS Configurator here to build your perfect workstation.

Key Features

Intel CPU

CPUs handle the sound generation and audio processing, making both a high clock speed & core count important.


System responsiveness is important for achieving the best recording experience.


Tested and optimized for your D.A.W software and pro-audio hardware.

Silent Components

This completely fanless system ensures silent operation at all times.

Multi Monitor Support

This system supports up to 2 monitors to boost productivity.

OCT Platinum
OCCT Platinum Certified

Each 3XS system is rigorously tested to ensure maximum stability.

Ai Copilot
Microsoft Copilot

Your everyday AI companion built for creativity and boosting your workflow.


Component Description

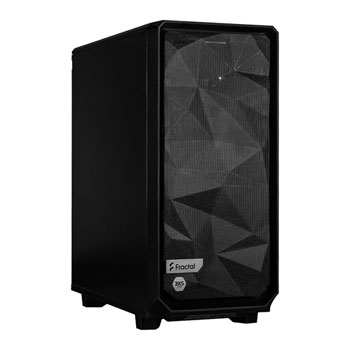

Chassis Fractal Meshify 2 Compact
Motherboard ASUS TUF X670E PLUS WIFI
Processor AMD Ryzen 9 7900, 12C/24T, 3.70GHz – 5.40GHz

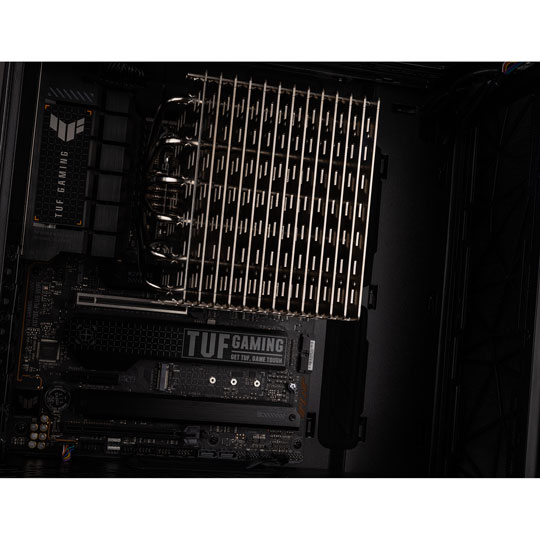

CPU Cooler Noctua NH-P1 Passive CPU Cooler
Memory 64GB (2x32GB) Corsair Vengeance 5600MHz DDR5
Power Supply Seasonic PRIME Fanless PX 500W 80+PLATINUM
System Drive 1TB Samsung 980 Pro NVMe SSD
Project Drive 2TB Samsung 980 Pro NVMe SSD
Operating System Microsoft Windows 11 Home
Recovery Media Recovery USB drive with system image and diagnostic software
Accessories 3XS Branded Corsair MM300 Mouse Pad, 3XS Mug & Cable Tie
Warranty & Support 3 Year Premium (Parts & Labour) Warranty - 1st Year Onsite, 2nd & 3rd Return to Base, including dedicated audio specialist support.



2 x USB 3.0
1 x USB 3.1 Gen2 Type-C
5 x USB 3.2 Gen1 Type-A
3 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen2x2 Type-C


1 x DisplayPort 1.4a
1 x HDMI 2.1


Realtek 2.5 Gigabit LAN


Intel WIFI 6E
Bluetooth 5.2

Why buy a 3XS Audio Workstation?

Anyone can build a PC, so what really makes the difference between any old PC and a 3XS PC? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. Here are the key reasons to buy a 3XS Video Workstation.

7 Days Support 7 Days Support

Our engineers are available 7 days a week to help with any queries.

Awards and Reviews Trusted by you

3XS Workstations have won hundreds of awards in the media.

Next-day Delivery Next-day delivery

3XS Workstations are pre-built and tested in our factory to be delivered next-day.

3 Year Warranty 3 years warranty

3XS Workstations include a three-year warranty, so if anything goes faulty we’ll repair or replace it.

Returns 30 Day return Policy

If you’re not totally satisfied with your 3XS Workstation you can return it up to 30 days after delivery.

CPU Type AMD Ryzen™ 9
CPU Model 7900
Professionally Overclocked No
CPU Speed 3.7 GHz
CPU Boost/Turbo Speed 5.4 GHz
CPU Overclock Speed
CPU Cores 12 Core
CPU Threads 24
CPU Cooler Passive Air Cooler
Motherboard Chipset AMD X670E
Motherboard Form Factor ATX
RAM Memory
Memory 64GB (2x32GB)
Memory Type DDR5
Memory Speed DDR5 - 5600
Empty DIMM Slots 2 Slots
Graphics Chipset
GPU Cores/Streams
GPU Core Clock
GPU Boost Clock
GPU Memory
GPU Memory Type
GPU Memory Clock
Memory Bit Rate
Maximum Supported Displays
Storage Drives
SSD Boot Drive Installed Yes
SSD Boot Drive Type M.2 PCIe (NVMe)
SSD Boot Drive Capacity 3 GB
Hard Drive Installed No
Hard Drive Type
Hard Drive Capacity
Maximum 2.5" Bays
Maximum 3.5" Bays
Additional Specifications
Operating System Windows 11 Home
Wireless LAN No
PSU Wattage 600 W
Colour Black
Case Form Factor M.2
Dimensions (Tower) 210 x 475 x 424 (WxHxD)
Optical Drive
Latency Monitor
DAWbench DSP
DAWbench VI

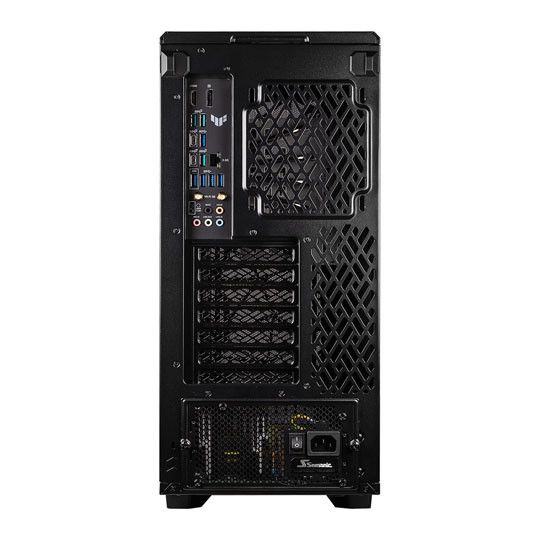

Back Panel
  • 1 x DisplayPort
  • 1 x HDMI
  • 5 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Front / Side Panel
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Additional Information
Scan Code LN140368
Model Number PSIVEDAWR964GB
GTIN 5055948941095
