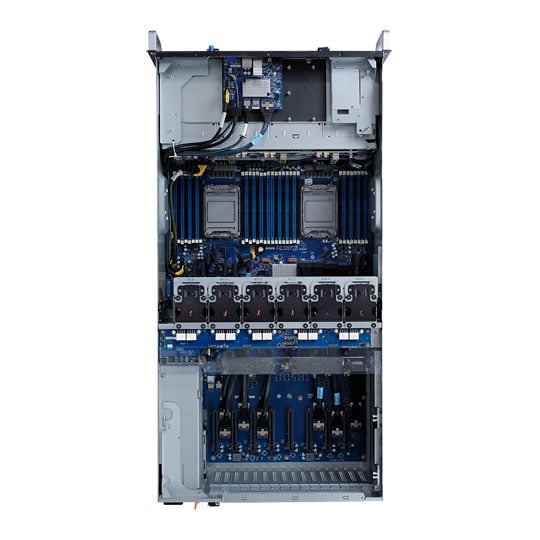

Gigabyte G492-H80 3rd Gen Xeon Ice Lake 4U 8 GPU Barebone Server
Gigabyte G492-H80 3rd Gen Intel Xeon Dual Processor Barebones Server, 4U, 8x GPU, 12x Hot-Swap Bays, 2x 10Gb/s RJ45
3rd Gen Intel® Xeon® Scalable Processors
GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data centre with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimise, memory configurations.
Enhanced I/0:
Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
CPU Performance Boost:
Now up to 40 cores per socket with greatly improved IPC on Intel’s 10nm architecture while operating CPUs at 105-270C. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
Next Gen Memory:
Support for DDR4-3200MHz (1DPC or 2DPC) DIMM. 8 channel memory has been added with up to 16 DIMMs per socket delivering up to 4TB of system memory via usage of 256GB DDR4 DIMM. Additionally, 2/4/6/8-way interleaves for optimal configuration.
Arrival of Intel Optane PMem 200 Series:
Optimised for improvements in latency while increasing system memory up to 6TB per socket as a mix of PMem and DDR. The 200 Series also has support for memory mode to expand capacity and app direct mode to act as fast flash storage.
Next Level Security:
New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
AI Acceleration:
AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate joint solutions, enabling our customers to modernise their data centres and implement IT infrastructure and application services with speed, agility, and cost optimisation. GIGABYTE servers have a compatibility across various ecosystems.
Support Various Computing Accelerators
GIGABYTE servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for deep learning, high performance computing (HPC), enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.
• Up to 8 x PCIe Gen4 GPGPU cards.
• 3rd Gen. Intel® Xeon® Scalable Processors.
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs.
• Intel® C621A Express Chipset.
• Dual ROM technology supported.
• Supports Intel® Optane™ Persistent Memory 200 series.
• 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2).
• 1 x dedicated management port.
• 12 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays.
• 3 x low profile PCIe Gen4 expansion slots.
• 1 x OCP 3.0 Gen4 x16 mezzanine slot.
• 3 x 80 PLUS Platinum 2200W (240V) redundant PSU.
