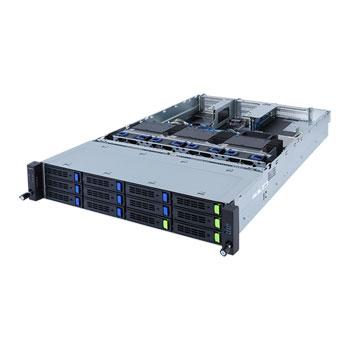

Gigabyte R282-G30 3rd Gen Xeon Ice Lake 2U 3 Double Slot GPU Barebone Server

Gigabyte R282-G30 3rd Gen Intel Xeon Dual Processor Barebones Server, 2U, 3x Dual Slot GPU, 12xHot-Swap Bays, 1Gb/s RJ45

Thumbnail 1 : Gigabyte R282-G30 3rd Gen Xeon Ice Lake 2U 3 Double Slot GPU Barebone Server Thumbnail 2 : Gigabyte R282-G30 3rd Gen Xeon Ice Lake 2U 3 Double Slot GPU Barebone Server Thumbnail 3 : Gigabyte R282-G30 3rd Gen Xeon Ice Lake 2U 3 Double Slot GPU Barebone Server Thumbnail 4 : Gigabyte R282-G30 3rd Gen Xeon Ice Lake 2U 3 Double Slot GPU Barebone Server
Scan code: LN116020 Manufacturer code: 6NR282G30MR-00
£2,759.99Item currently awaiting an ETA
Pre order
With a 10% deposit from just £68.94 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview

3rd Gen Intel® Xeon® Scalable Processors

GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data centre with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimise, memory configurations.

Enhanced I/0:
Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.

CPU Performance Boost:
Now up to 40 cores per socket with greatly improved IPC on Intel’s 10nm architecture while operating CPUs at 105-270C. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.

Next Gen Memory:
Support for DDR4-3200MHz (1DPC or 2DPC) DIMM. 8 channel memory has been added with up to 16 DIMMs per socket delivering up to 4TB of system memory via usage of 256GB DDR4 DIMM. Additionally, 2/4/6/8-way interleaves for optimal configuration.

Arrival of Intel Optane PMem 200 Series:
Optimised for improvements in latency while increasing system memory up to 6TB per socket as a mix of PMem and DDR. The 200 Series also has support for memory mode to expand capacity and app direct mode to act as fast flash storage.

Next Level Security:
New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.

AI Acceleration:
AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.


Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate joint solutions, enabling our customers to modernise their data centres and implement IT infrastructure and application services with speed, agility, and cost optimisation. GIGABYTE servers have a compatibility across various ecosystems.


Support Various Computing Accelerators

GIGABYTE servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for deep learning, high performance computing (HPC), enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.

Features
• Supports up to 3 x double slot GPU cards.
• 3rd Gen. Intel® Xeon® Scalable Processors.
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs.
• Intel® C621A Express Chipset.
• Dual ROM technology supported.
• Supports Intel® Optane™ Persistent Memory 200 series.
• 2 x 1Gb/s LAN ports (Intel® I350-AM2).
• 1 x Dedicated management port.
• 8 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays.
• 4 x 3.5" or 2.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays.
• Onboard 12Gb/s SAS expander.
• 5 x PCIe Gen4 x16 expansion slots.
• 1 x OCP 3.0 Gen4 x16 mezzanine slot.
• 1 x OCP 2.0 Gen3 x8 mezzanine slot.
• 2400W (240V) 80 PLUS Platinum redundant power supply.
Specifications
Edition R282-G30
Form Factor 2U
CPU Included No
CPU Type 2x Intel Xeon Scalable Processors
CPU Model
Architecture Ice Lake
Manufacturing Process 10 nm
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP 270 W
CPU Socket 4189
Chipset Intel C621A Express
Motherboard Form Factor Bespoke/Custom
Motherboard Model MR92-FS0
Memory Type DDR4 RDIMM/LRDIMM
Memory Included No
Memory Capacity Included RAM Memory Not Included - Please Buy Separately
Memory Edition
Memory Channels Octa (8) per CPU/Socket
Memory Type (ECC)
Memory Type (R/U) RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Aspeed® AST2600
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 4.0 (x16)
Expansion Slots
  • 1 x PCIe 3.0 x8 OCP 2.0 Mezz Slot, Type1, P1, P2, NCSI
  • 5 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 OCP 3.0 Mezz Slot, from CPU_O, NCSI
SATA SATA3
HDD Storage Included No
HDD Storage Type Storage Drive Not Included - Please Buy Separately
HDD Storage Capacity N/A
Optical Drive None
Drive Bays
  • 4 x 2.5"/3.5" SATA/SAS/Gen4 NVME Hotswap
  • 8 x 2.5/3.5" SAS/SATA Hot-swap
Backplane I/O
  • 8 x NVMe/SAS/SATA Ports (Front)
  • 2 x SAS-3 (12Gb/s)/SATA3 (6Gb/s) Ports (Rear)
  • 16 x SAS/SATA Ports (Front)
RAID Support
Internal I/O
  • 1 x BIOS Recovery Jumper
  • 1 x Clear CMOS jumper
  • 2 x CPU Fan Connector
  • 1 x Front Panel Connector
  • 1 x HDD Back Plane Board Header
  • 1 x IPMB Connector/Header
  • 1 x TPM (Trusted Platform Module)
  • 1 x USB 3.0 Header
  • 1 x VROC Connector
Network Interface Type Dual Wired Gigabit LAN (10/100/1000) + Mgmt LAN
Network Chip/Modules
  • 1 x Intel® i350-AM2 Dual Port (GbE)
  • 1 x Mgmt LAN (10/100/1000)
Front Panel
  • 1 x HDD Activity LED
  • 1 x ID button with LED
  • 2 x LAN Activity LEDs
  • 1 x NMI button
  • 1 x Power Button with LED
  • 1 x Reset Button
  • 1 x System Status LED
  • 2 x USB 3.0

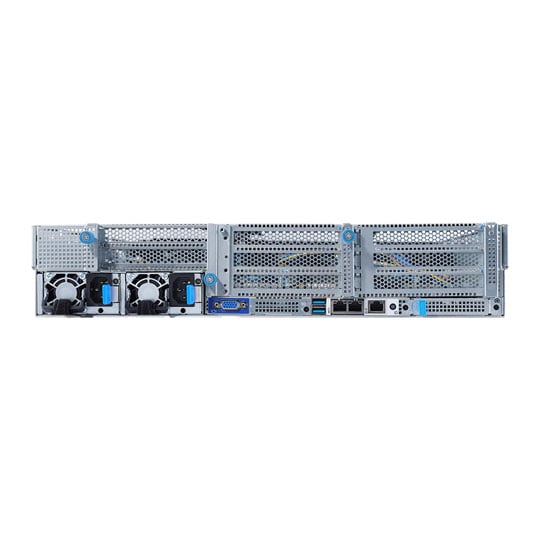

Back Panel
  • 1 x ID Button with LED
  • 1 x Mgmt LAN
  • 2 x RJ-45
  • 2 x USB 3.0
  • 1 x VGA
Cooling Fans 4 x 80mm
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 2x 2400 W
PSU Efficiency Rating 80 PLUS Platinum
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 438 x 87.5 x 730 (mm WxHxD)
Weight
Includes
  • 1 x Barebone Server
  • 2 x CPU Heatsink/s
  • 1 x Rail Kit
  • 1 x VROC Module
Notes
Storage Drives
SSD Storage Included No
SSD Storage Type Storage Drive Not Included - Please Buy Separately
SSD Storage Capacity
Additional Information
Scan Code LN116020
Model Number 6NR282G30MR-00
