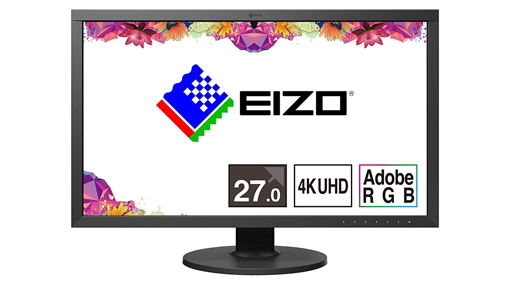

EIZO - 'ColorEdge CS2740'
27" (68.4 cm) Hardware Calibration LCD Monitor
The elegant 4K monitor for every creator With 4K UHD (3840 x 2160), a spacious 27-inch screen, and USB Type-C connectivity, this monitor facilitates a detail-oriented, comfortable, and streamlined workflow ideal for any creative field. Whether it be photography, video editing, or design, this monitor gives you everything you need to keep imagination flowing.
27"Size
1000:1Contrast Ratio
164ppiPixel Density
at a glance
• 3840×2160 resolution
• 60 Hz maximum refresh rate
• 178°/178° viewing angles
• Covers 99% of the Adobe RGB color gamut
4K UHD Resolution
super crisp resolutionThe ColorEdge CS2740 is the first CS series monitor to implement 4K UHD resolution (3840 x 2160), which is four times the size of Full HD. The remarkable detail ensures that high resolution photos and other content are displayed crisply.

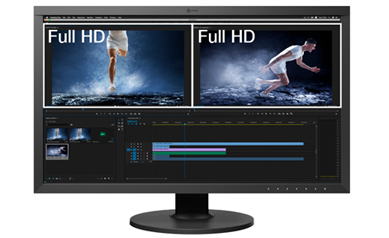

The 27-inch screen provides ample space for easily displaying Full HD content in full with enough space to show toolbars, palettes, and other windows or applications simultaneously. This makes the monitor versatile for photos, video editing, design, and other types of creative work up to 4K.

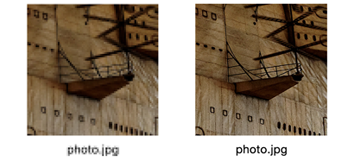

High Pixel Density for Smooth Display

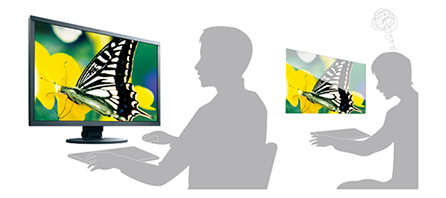

incredible 164 ppiA conventional monitor displays in Full HD with just 96 ppi. The ColorEdge CS2740 boasts a pixel density nearly twice that at an incredible 164 ppi for 4K image display that has never looked smoother.
Alphanumeric characters and contours are distinguished with excellent sharpness so you can check even the finest details without needing to zoom in.

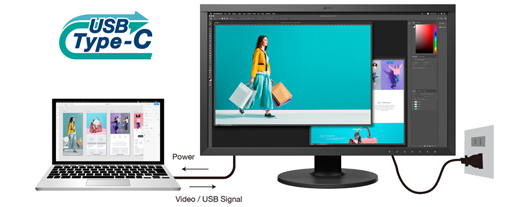

Single Cable Connection with USB Type-C
no cable clutterThe ColorEdge CS2740 features USB Type-C connectivity with 60 W power delivery. With a single USB Type-C cable you can display video, transmit USB signals, and supply power to a connected device such as a smartphone or notebook PC. Simply plug in and get creative without worrying about additional cable clutter.

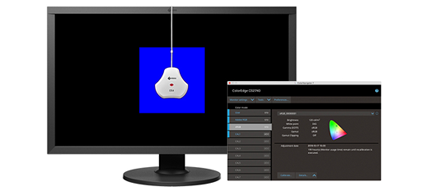

ColorNavigator 7 Software
A solution for creatives in a range of fieldsColorNavigator 7 is the latest calibration and quality control software for ColorEdge color management monitors. It combines all the features of EIZO's previous color management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields.
The proprietary software performs hardware calibration by directly utilizing the LUT (look-up-table) of the monitor for higher precision and better gradation characteristics compared to software calibration.
Quick Color Match Software
a simplified process
Even with all the right equipment, color matching can be a tedious process - from monitor adjustment to determining the best retouch software and printer settings - achieving an accurate print takes a great deal of time.
Quick Color Match greatly simplifies the process by automatically adjusting to the ideal monitor, retouching software, and printer settings so you can focus on editing your photos and print your work quickly and hassle-free. Simply drag and drop your photo in the Quick Color Match window to automatically start the process.
Adjusted at the Factory for Smooth Color Gradations

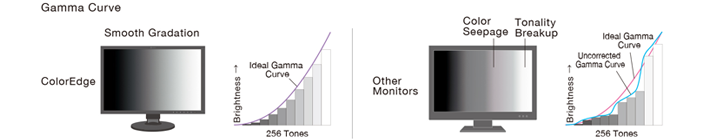

Stable Image DisplayThe gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.

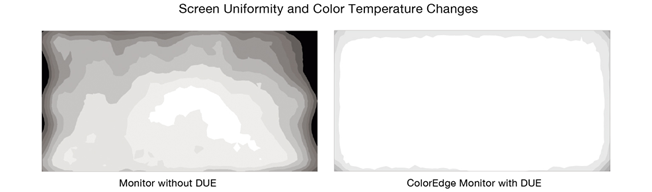

Uniformity Across the ScreenLCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting color accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.
Comfort and Ease-of-Use
Minimized Reflections with Non-Glare Panel The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.

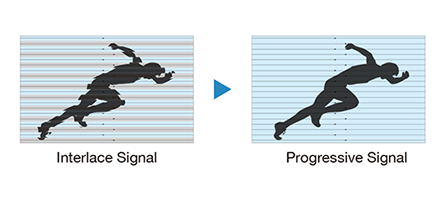

I/P Conversion for Flicker-Free DisplayThe HDMI input supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.

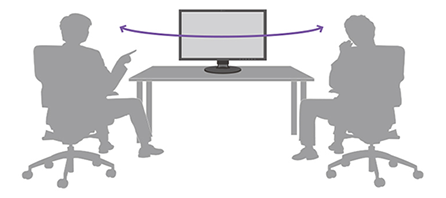

Wide Viewing Angles with IPS Panel The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast.
The Tech Spec
| Features | Specification | Type | IPS |
|---|---|
| Backlight | Wide-Gamut LED |
| Size | 26.9" / 68.4 cm |
| Native Resolution | 3840 x 2160 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 596.2 x 335.3 mm |
| Pixel Pitch | 0.155 x 0.155 mm |
| Pixel Density | 164ppi |
| Display Colors | 1.07 billion from a palette of 278 trillion |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 10 ms (gray-to-gray) |
| Color Gamut (typical) | Adobe RGB: 99% |
| Input Terminals | USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 2.2 / 1.4) |
| Digital Scanning Frequency (H / V) | USB Type-C, DisplayPort: 25 - 137 kHz, 23 - 61 Hz HDMI: 15 - 135 kHz, 23 - 61 Hz |
| Upstream | USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 60 W max.), USB 3.1 Gen 1: Type-B |
| Downstream | USB 3.1 Gen 1: Type-A x 2 USB 2.0: Type-A x 2 |
| Power Requirements | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 36 W |
| Maximum Power Consumption | 168 W |
| Power Save Mode | 1.0 W or less |
| Standby Mode | 1.0 W or less |
