EIZO - 'ColorEdge CS2420'
24" IPS Monitor

24.1" (61 cm) Hardware
Calibration LCD Monitor
Let your creativity blossom wih this monitor for hobbyists and prosumers. Featuring a sleek, user-friendly design and many of the advanced features of EIZO's ColorEdge lineup, you can enjoy creating and editing digital photography, illustration, and more.
The EIZO ColorEdge CS2420 24 Inch IPS Monitor features a sleek, user-friendly design, and is aimed at hobbyists and prosumers. Along with a pre-calibrated gamma level, and uniformity from corner to corner, the CS2420 also has an IPS panel with a wide colour gamut that reproduces 99% of the Adobe RGB colour space. ColorNavigator 6, EIZO's colour management software, is included.
350 cd/m2Brightness
24.1Screen Size
1920 x 1200Max resolution
Quick Color Match Software

simple drag and drop processEven with all the right equipment, color matching can be a tedious process - from monitor adjustment to determining the best retouch software and printer settings - achieving an accurate print takes a great deal of time.
Quick Color Match greatly simplifies the process by automatically adjusting to the ideal monitor, retouching software, and printer settings so you can focus on editing your photos and print your work quickly and hassle-free. Simply drag and drop your photo in the Quick Color Match window to automatically start the process.

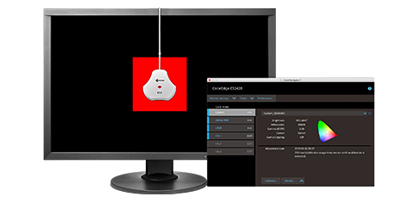

ColorNavigator 7 Software

the latest in quality control softwareColorNavigator 7 is the latest calibration and quality control software for ColorEdge color management monitors. It combines all the features of EIZO's previous color management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields.
The proprietary software performs hardware calibration by directly utilizing the LUT (look-up-table) of the monitor for higher precision and better gradation characteristics compared to software calibration.

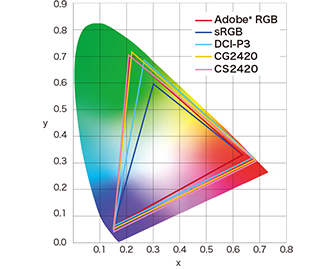

Vivid Colors Reproduced
to Industry Standards

reproduces almost the
entire Adobe RGB color spaceThe wide color gamut of the ColorEdge CS2420 reproduces almost the entire Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully in a way that monitors limited to an sRGB color space cannot display. The wide color gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK color spaces used in printing.

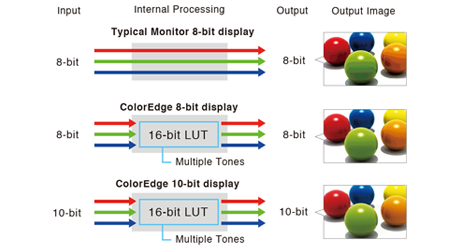

10-bit Simultaneous DisplayUsing the DisplayPort or HDMI inputs, the ColorEdge CS2420 offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.

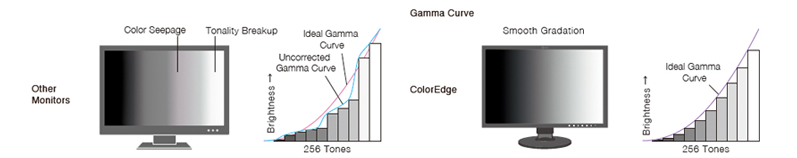

Adjusted at the Factory
for Smooth Color Gradations

16-bit look-up-tableThe gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.
Uniformity Across the Screen

Screen Uniformity and Colour Temperature ChangesLCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting color accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.

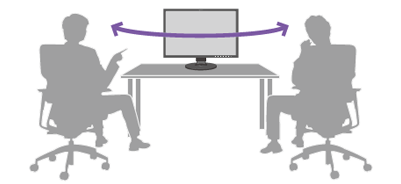

Wide Viewing Angles with IPS Panel The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast.
True to Creativity
Color Edge CG2420 & CS2420 MonitorsLet your imagination soar and your creativity blossom with these 24.1-inch monitors for professional and aspiring creators from EIZO.

The Tech Spec
Features | Specification | Brightness | 350 cd/m2 |
---|---|
Colour | Black |
Connectivity | DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color), 3-port USB 3.0 hub |
Contrast Ratio | 1000:1 |
Included Accessories | АС роwеr соrd, ѕіgnаl саblеѕ (DVІ-D - DVІ-D, DіѕрlауРоrt - DіѕрlауРоrt), UЅВ саblе, Ѕеtuр guіdе, ЕІZО LСD Utіlіtу Dіѕk (СоlоrNаvіgаtоr ѕоftwаrе, РDF uѕеr,ѕ mаnuаl), Ѕtаnd bаѕе, Саblе hоldеr, Моuntіng ѕсrеw |
Max resolution | 1920 x 1200 |
Screen Size | 24.1 |
Screen type | IPS |
Size | 554.4 x 396 - 551 x 245 mm |
