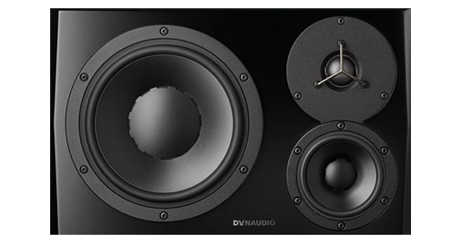

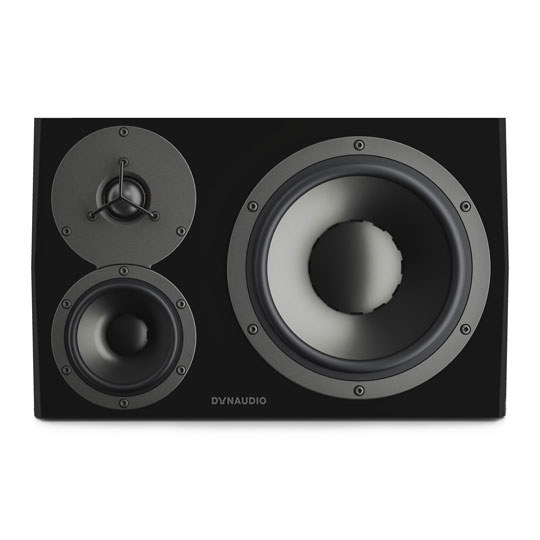

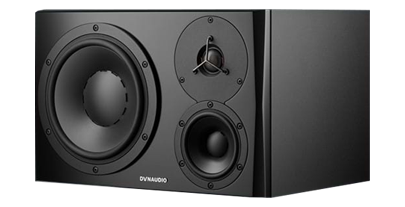

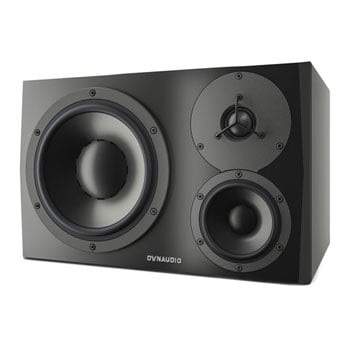

Dynaudio PRO LYD 48 Black Studio Monitor (Right)

Dynaudio PRO LYD 48 3-Way Studio Monitor - Tri-amped Class D Speaker Design - Black (Right)

Thumbnail 1 : Dynaudio PRO LYD 48 Black Studio Monitor (Right) Thumbnail 2 : Dynaudio PRO LYD 48 Black Studio Monitor (Right) Thumbnail 3 : Dynaudio PRO LYD 48 Black Studio Monitor (Right)
Scan code: LN78189 Manufacturer code: DYN-LYD48-B-R
£864.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £26.19 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £74.26
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £864.00
Total inc. interest: £891.13
Monthly Payment: £38.20
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £864.00
Total inc. interest: £916.65
Monthly Payment: £26.19
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £864.00
Total inc. interest: £942.67
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £21.58 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

180W 3-way Studio Reference Monitor with 8" Woofer
Dynaudio - 'LYD 48'
(Right Side - Black)

Launchpad

precision monitoring you can trustDynaudio’s game-changing ‘LYD 48’ has all the power to take your monitoring accuracy – and your mixed- to the next level of professionalism. Standing proudly as the flagship of Dynaudio’s ‘LYD’ range, the LYD 48 uses the same strengths from its 2-way counterparts, and as a 3-way tri-amplified studio monitor, it reaches superior across-the-board performance. With a 2-way design, the woofer has to work extremely hard to reproduce the low frequencies alongside a portion of the midrange frequencies.

Another unavoidable disadvantage is that the crossover to the tweeter is happening within that important midrange – where typically the vocal tracks are at their most vibrant, where the girth of the guitar lies, and in general, where mixes either shine or fall flat. A dedicated midrange driver delivers huge benefits, such as solid bass extension, greater midrange purity, lower distortion, higher SPL capability, and overall accuracy.

Perfectly suited to nearfield and midfield applications, the Dynaudio LYD 48 is certain to aid you in making better, clearer recordings.

8"LF Driver Size

32Hz-21kHzFrequency Response

112dBMaximum Peak SPL

Amazing Features • Designed in mirror-imaged pairs, sold as a single item
• Class D tri-amplified: LF 80W, MF 50W, HF 50W
• Studio Reference Monitor with 8" woofer, 4" midrange, and 1" tweeter
• Provides astonishing clarity across the frequency spectrum
• Delivers neutral midrange response critical for proper placement of vocals and instruments
• Advanced DSP lets you adjust low-frequency extension by +/-10Hz

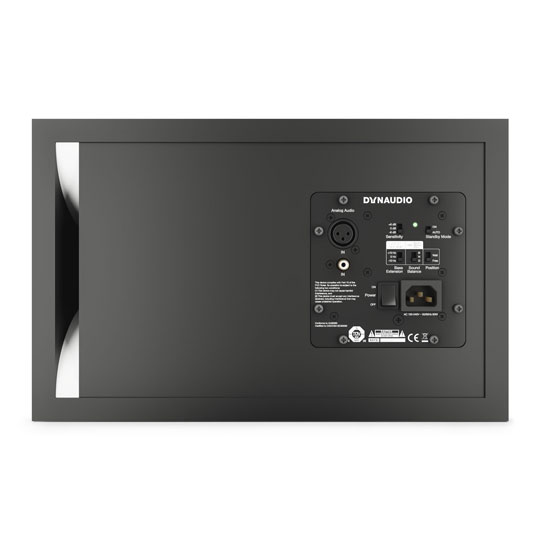

• Position and Sound Balance controls for optimizing performance for any environment

Precision and Passion

back

where you need it mostDynaudio's custom hand-made drivers are legendary, the LYD 48 features the same non-fatiguing drivers and each is powered by a dedicated state of the art Class D amplifier. Delivering 80W of power for the LF driver, 50W for the MF and 50W for the HF per monitor with selectable input sensitivity, "Standby Mode" and a 96kHz/24bit signal path the LYD 48 does not disappoint.

With the same DSP technology from the rest of the LYD series this allows the 'Bass Extension' option to extend or curtail the low frequency response by 10Hz where needed, while both 'Position' and 'Sound Balance' controls ensure the best possible performance for any environment.

Meet the 'LYD' from Dynaudio

dynaudio - lyd 48 3-way powered studio monitorWatch as Sebastian Rodens, Product Manager at Dynaudio, talks about the new LYD speakers and all of its features.

The Tech Spec

Features Specification
Powered Yes
Power Configuration Tri-amped
LF Driver Size 1 x 8" woofer
MF Driver Size 4" mid range speaker
HF Driver Size 1.1" HF tweeter
HF Driver Type Soft dome
LF Driver Power Amp 80W
MF Driver Power Amp 50W
HF Driver Power Amp 50W
Total Power 180W
Frequency Response 32Hz-21kHz
Crossover Frequency 490Hz, 5.6kHz
Maximum Peak SPL 112 dB SPL
Input Types 1 x XLR, 1 x RCA
Features Sensitivity, Bass Extension, Sound Balance
Enclosure Type Ported
Height 12.9"
Width 14.5"
Depth 9.2"
Weight 23.2 lbs
Specifications
Speaker Type Nearfield
Total Wattage (RMS) 180
I/O Connections
  • 1 x RCA In
  • 1 x XLR In
Bass Port Rear
Frequency Response
Max SPL
Bass Cone Size 8 Inch
Additional Information
Scan Code LN78189
Model Number DYN-LYD48-B-R
GTIN 5706937629325
