Dynaudio PRO LYD 48 White Studio Monitor (Left)
Dynaudio PRO LYD 48 3-Way Studio Monitor - Tri-amped Class D Speaker Design - White (Left)
- SCANPROTECT Protect against installation damage for 28 days. More info
Frequently Bought Together
180W 3-way Studio Reference Monitor with 8" Woofer
Dynaudio - 'LYD 48'
(Left Side - White)
precision monitoring you can trustDynaudio’s game-changing ‘LYD 48’ has all the power to take your monitoring accuracy – and your mixed- to the next level of professionalism. Standing proudly as the flagship of Dynaudio’s ‘LYD’ range, the LYD 48 uses the same strengths from its 2-way counterparts, and as a 3-way tri-amplified studio monitor, it reaches superior across-the-board performance. With a 2-way design, the woofer has to work extremely hard to reproduce the low frequencies alongside a portion of the midrange frequencies.
Another unavoidable disadvantage is that the crossover to the tweeter is happening within that important midrange – where typically the vocal tracks are at their most vibrant, where the girth of the guitar lies, and in general, where mixes either shine or fall flat. A dedicated midrange driver delivers huge benefits, such as solid bass extension, greater midrange purity, lower distortion, higher SPL capability, and overall accuracy.
Perfectly suited to nearfield and midfield applications, the Dynaudio LYD 48 is certain to aid you in making better, clearer recordings.
8"LF Driver Size
32Hz-21kHzFrequency Response
112dBMaximum Peak SPL
Amazing Features
• Designed in mirror-imaged pairs, sold as a single item
• Class D tri-amplified: LF 80W, MF 50W, HF 50W

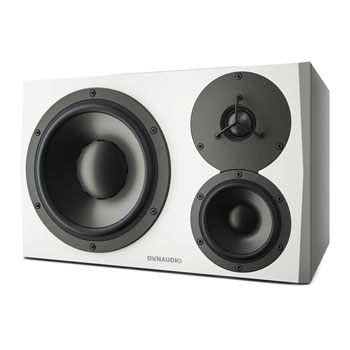

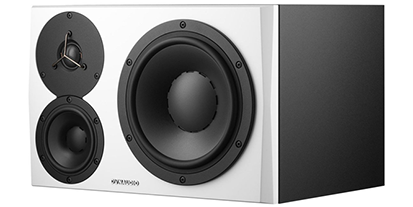

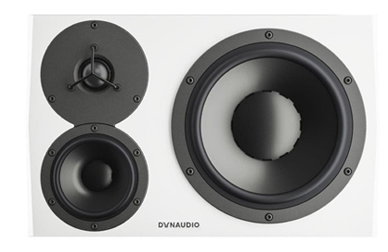

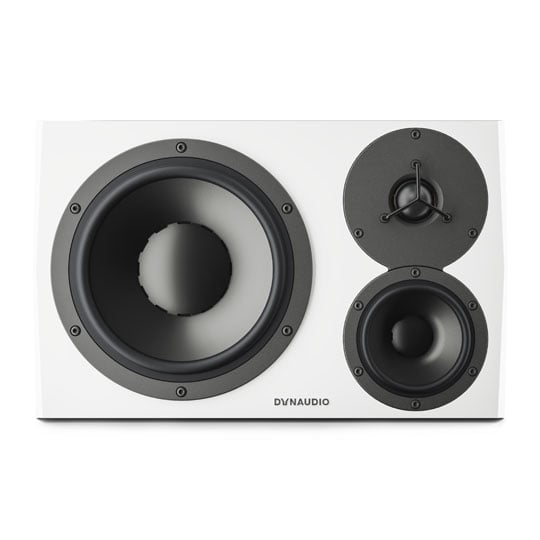

• Studio Reference Monitor with 8" woofer, 4" midrange, and 1" tweeter
• Provides astonishing clarity across the frequency spectrum
• Delivers neutral midrange response critical for proper placement of vocals and instruments
• Advanced DSP lets you adjust low-frequency extension by +/-10Hz

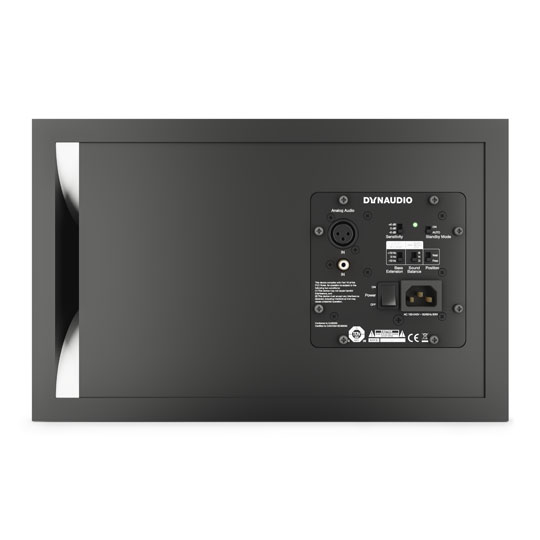

• Position and Sound Balance controls for optimizing performance for any environment
Precision and Passion
where you need it mostDynaudio's custom hand-made drivers are legendary, the LYD 48 features the same non-fatiguing drivers and each is powered by a dedicated state of the art Class D amplifier. Delivering 80W of power for the LF driver, 50W for the MF and 50W for the HF per monitor with selectable input sensitivity, "Standby Mode" and a 96kHz/24bit signal path the LYD 48 does not disappoint.
With the same DSP technology from the rest of the LYD series this allows the 'Bass Extension' option to extend or curtail the low frequency response by 10Hz where needed, while both 'Position' and 'Sound Balance' controls ensure the best possible performance for any environment.
Meet the 'LYD' from Dynaudio
dynaudio - lyd 48 3-way powered studio monitorWatch as Sebastian Rodens, Product Manager at Dynaudio, talks about the new LYD speakers and all of its features.
The Tech Spec
| Features | Specification | Powered | Yes |
|---|---|
| Power Configuration | Tri-amped |
| LF Driver Size | 1 x 8" woofer |
| MF Driver Size | 4" mid range speaker |
| HF Driver Size | 1.1" HF tweeter |
| HF Driver Type | Soft dome |
| LF Driver Power Amp | 80W |
| MF Driver Power Amp | 50W |
| HF Driver Power Amp | 50W |
| Total Power | 180W |
| Frequency Response | 32Hz-21kHz |
| Crossover Frequency | 490Hz, 5.6kHz |
| Maximum Peak SPL | 112 dB SPL |
| Input Types | 1 x XLR, 1 x RCA |
| Features | Sensitivity, Bass Extension, Sound Balance |
| Enclosure Type | Ported |
| Height | 12.9" |
| Width | 14.5" |
| Depth | 9.2" |
| Weight | 23.2 lbs |
