Dobot Nova 5 Collaborative 6-Axis Robotic Arm
Dobot Nova 5 Collaborative 6-Axis Robotic Arm
Scan code: LN164509 Manufacturer code: 1200000162
£7,551.98Item due on 15 August 2026
Due 15th Aug

Dobot Nova 5 Collaborative 6-Axis Robotic Arm

Dobot Nova 5 Collaborative 6-Axis Robotic Arm

Scan code: LN164509 Manufacturer code: 1200000162
£7,551.98
Item due on 15 August 2026
Due 15th Aug

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £212.94 / month (APR 16.9%) for 48 months or 0% for 4 months
  • With a 10% deposit from just £188.62 / month (APR 15.9%)

Suggested Alternatives

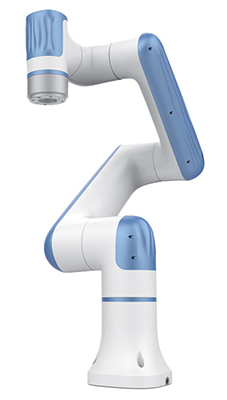

Nova 5 Collaborative Robot from DOBOT

Nova 5 Collaborative Robot from DOBOT

Highly Capable and Cost Efficient The DOBOT Nova 5 is a versatile cobot with an 850 mm working radius, ideal for precise massage applications targeting areas like the neck, back, and waist. It features proprietary precision pressure control for an exceptional user experience. Weighing 14 kg with a maximum payload of 5 kg, it offers high repeatability (±0.05 mm) and speed (up to 2 m/s). The cobot supports multiple communication interfaces and flexible installation, promoting efficient automation.

Adoption Across Industries

Healthcare

Healthcare Traditional healthcare demands long, intensive hours, risking mistakes and potential lawsuits. Collaborative robots offer consistent, safe performance alongside medical staff and patients. Dobot’s robots are fast to deploy, versatile, and easy to use, handling patient care, deliveries, packaging, and testing to ease workload and reduce stress for healthcare teams.

Retail

Retail As intelligent business scenarios grow, innovations like smart restaurants, unmanned retail stores, and digital vending are making robots part of daily life. They transform store operations, boost efficiency, and cut costs. With flexibility and ease of use, collaborative robots enable 24/7 operation - from noodle houses to coffee stations, driving innovation and profits.

Education

Education Dobot collaborates closely with teachers and professors to develop training courses and curriculum based on the latest automation technologies. Through these comprehensive courses and assessments, you can become a skilled and trained professional in automation.

Specifications
DOF 6
Safeskin No
Weight 14 Kg
Max. Payload 5 Kg
Working Radius 850 mm
Maximum Working Speed 2 m/s
Range of Motion (J1) ±360 °
Range of Motion (J2) ±180 °
Range of Motion (J3) ±156 °
Range of Motion (J4) ±360 °
Range of Motion (J5) ±360 °
Range of Motion (J6) ±360 °
Max. Working Speed (J1) 100 °/s
Max. Working Speed (J2) 100 °/s
Max. Working Speed (J3) 100 °/s
Max. Working Speed (J4) 100 °/s
Max. Working Speed (J5) 100 °/s
Max. Working Speed (J6) 100 °/s
Force Sensor (Range)
Force Sensor (Overload)
Force Sensor (Accuracy)
Force Sensor (Precision)
End Effector IO (DI) 2 Channels
End Effector IO (DO) 2 Channels
End Effector IO (AO) 2 Channels
Repeatability ±0.05 mm
IP Rating IP54
Temperature Range 0~50 °C
Power Consumption 150 W
Installation Method Any Angle
Cable Length (Robot-to-Control) 3 m
Material(s)
  • ABS Plastic
  • Aluminium Alloy
Additional Information
Scan Code LN164509
Model Number 1200000162
GTIN 0000
