Dobot Magician Robot Arm - Basic

Dobot Magician Robot Arm, Basic, 4-Axis, 500g Max Payload, Wireless Connectivity

Scan code: LN162523 Manufacturer code: 1100000015
£876.98
Item currently awaiting an ETA
Pre order
Pay in 3 interest-free payments of £292.33

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £30.71 / month (APR 16.9%) for 36 months or 0% for 4 months
  • With a 10% deposit from just £21.90 / month (APR 15.9%)

Suggested Alternatives

Magician Basic Desktop Robot For Advanced Education from DOBOT

DOBOT CR3A Collaborative Robot from DOBOT

the world's first desktop grade 4-axis robot The Magician is capable of various functions including 3D printing, laser graving, calligraphy, and drawing. It features 13 interface ports to facilitate secondary development, laboratory experiments, and robotics education.

Topics like robotic systems, the DH convention, robot motion control, and robot programming can be taught to students at various levels. A wide range of applications can be created using programming software and hardware add-ons.

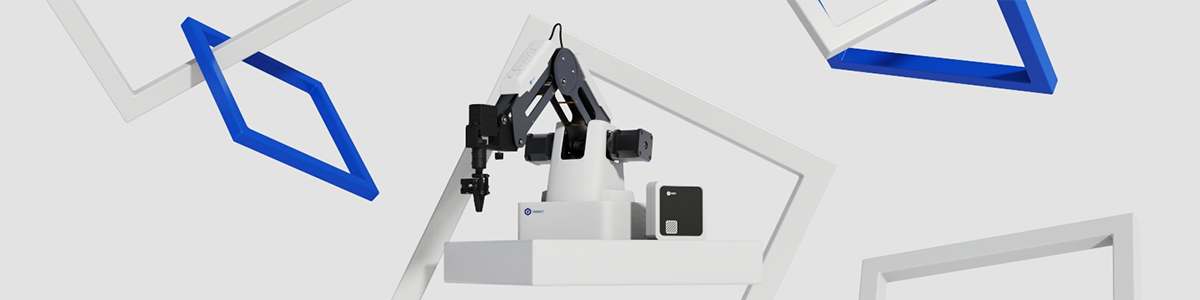

Magician Robot

Magician Basic
One Person Operation

One Person Operation The Magician is built with students and consumers in mind. It is highly portable and performs a variety of automation tasks. Users can control the Magician through easy-access command buttons or wirelessly via portable computing devices.

Programmable

Physically Teach the Robot The Magician supports drag-to-teach functionality, allowing users to program it by manually guiding the robotic arm along the desired path. It’s that straightforward.

Expandability

High Expandability with Secondary Development The Magician offers 13 interface ports and wireless connections to support advanced development. It also provides controller support tailored for beginners.

Wide selection of accessories

Wide Selection of Accessories A diverse range of accessories such as grippers, rails, conveyor belts, mobility units and vision modules are available to enable the Magician to perform a variety of tasks.

Specifications
DOF 4
Safeskin No
Weight 3.4 Kg
Max. Payload 0.5 Kg
Working Radius 320 mm
Maximum Working Speed 0.5 m/s
Range of Motion (J1) ±120 °
Range of Motion (J2) -5 to 90 °
Range of Motion (J3) -15 to 90 °
Range of Motion (J4) -140 to 140 °
Range of Motion (J5)
Range of Motion (J6)
Max. Working Speed (J1) 320 °/s
Max. Working Speed (J2) 320 °/s
Max. Working Speed (J3) 320 °/s
Max. Working Speed (J4) 480 °/s
Max. Working Speed (J5)
Max. Working Speed (J6)
Force Sensor (Range)
Force Sensor (Overload)
Force Sensor (Accuracy)
Force Sensor (Precision)
End Effector IO (DI) 1 Channels
End Effector IO (DO) 1 Channels
End Effector IO (AO)
Repeatability 0.2 mm
IP Rating IP20
Temperature Range -10 ~ 60 °C
Power Consumption 78 W
Installation Method Forward Installation
Cable Length (Robot-to-Control)
Material(s)
  • ABS Plastic
  • Aluminium Alloy
