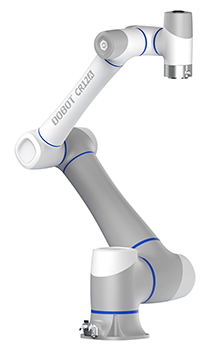

CR12A Collaborative Robot Arm from DOBOT
Safe, Flexible and Self-Learning The DOBOT CR12A is a collaborative robot built for heavier-duty automation, offering a 12kg payload, 1200mm working radius, and ±0.03mm repeatability. Designed for fast deployment and easy operation, it can help improve production flexibility and efficiency while handling tasks such as picking, packing, palletising, welding, and other industrial applications.
DOBOT CRA Series
Collaborative Robot Building upon the safety, efficiency, flexibility, and ease of use of the CR series, the CR12A breaks through the payload limit to 12kg, opening up a wider range of applications for collaborative robots. With a 1200 mm working radius, the CR12A can meet the demands of heavy-duty picking, packing, palletising and welding in the automotive, home appliances, logistics and metal processing industries.
User-friendly Design for Faster Deployment The CR12A adopts an industry-first dual-channel end effector design, which can directly connect to multiple end tools. It also features a visual status indicator at the base for intuitive recognition of operating status.

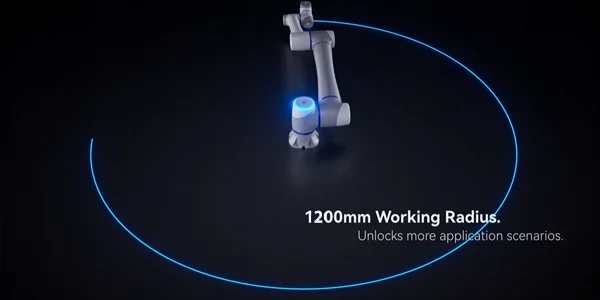

1200mm Radius and a Maximum Payload of 12 kg The CR12A has a working radius of 1200 mm and a maximum payload of 12 kg. With advanced motion control algorithm, the CR12A operates more stably, with residual vibrations reduced by 50% during high-speed emergency stops.
24 Interface Ports for Greater Flexibility The CR12A supports Profinet and Ethernet/IP communication protocols and connects seamlessly with PLC. It has 24 digital IO ports with industry leading support for PNP and NPN switching to expand applications with ease.
High Protection Level for Safer Collaboration The robot body and control box both achieve a high protection level of IP54. When overloaded, the robot will automatically sound an alarm. The CR12A also features an innovative electromagnetic brake protection, which reduces the end tool drop distance at power failure.
