Dobot CR16A Collaborative 6-Axis Robotic Arm
Dobot CR16A Collaborative 6-Axis Robotic Arm, Max Payload 16kg, 1000mm Working Radius
Email me when the availability or price changes
Finance this product
- From £393.34 / month (APR 0%) for 48 months
- With a 10% deposit from just £471.56 / month (APR 15.9%)
Suggested Alternatives
Dobot CR10A Collaborative 6-Axis Robotic Arm, Max Payload 10kg, 1300mm Working RadiusDobot CR10A Collaborative 6-Axis Robotic Arm
LN164511
No customer reviewKey Specifications
- Dobot CR10A Collaborative 6-Axis Robotic Arm
- Max Payload 10kg
- 1300mm Working Radius
Dobot CR10AS Collaborative 6-Axis Robotic Arm, SafeSkin, Max Payload 10Kg, 1300mm Working Radius, Pre-Collision SensingDobot CR10AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology
LN164512
No customer reviewKey Specifications
- Dobot CR10AS Collaborative 6-Axis Robotic Arm
- SafeSkin
- Max Payload 10Kg
- 1300mm Working Radius
- Pre-Collision Sensing
Dobot CR12A Collaborative 6-Axis Robotic Arm, Max Payload 12kg, 1200mm Working RadiusDobot CR12A Collaborative 6-Axis Robotic Arm
LN170408
No customer reviewKey Specifications
- Dobot CR12A Collaborative 6-Axis Robotic Arm
- Max Payload 12kg
- 1200mm Working Radius

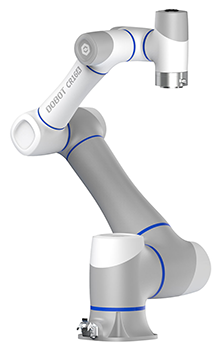

CR16A Collaborative Robot Arm from DOBOT
Safe, Flexible and Self-Learning The DOBOT CR16A is a heavy-duty collaborative robot built for demanding picking, packing, palletizing, and welding tasks. With a 16 kg payload and 1000 mm reach, it suits automotive, appliance, logistics, and metalworking environments, while its collaborative design helps streamline automation safely and efficiently.
DOBOT CRA Series
Collaborative Robot Building upon the safety, efficiency, flexibility, and ease of use of the CR series, the CR16A breaks through the payload limit to 16kg, opening up a wider range of applications for collaborative robots. With a 1000 mm working radius, the CR16A can meet the demands of heavy-duty picking, packing, palletising and welding in the automotive, home appliances, logistics and metal processing industries.
User-friendly Design for Faster Deployment The CR16A adopts an industry-first dual-channel end effector design, which can directly connect to multiple end tools. It also features a visual status indicator at the base for intuitive recognition of operating status.

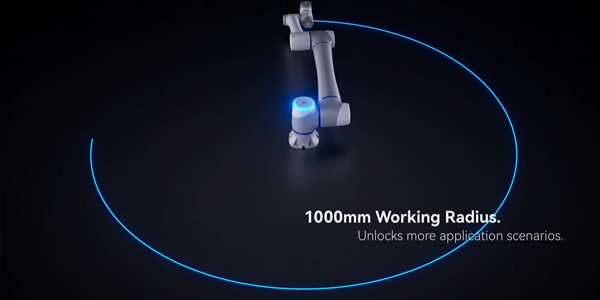

1000mm Radius and a Maximum Payload of 16 kg The CR16A has a working radius of 1000 mm and a maximum payload of 16 kg. With advanced motion control algorithm, the CR16A operates more stably, with residual vibrations reduced by 50% during high-speed emergency stops.
24 Interface Ports for Greater Flexibility The CR16A supports Profinet and Ethernet/IP communication protocols and connects seamlessly with PLC. It has 24 digital IO ports with industry leading support for PNP and NPN switching to expand applications with ease.
High Protection Level for Safer Collaboration The robot body and control box both achieve a high protection level of IP54. When overloaded, the robot will automatically sound an alarm. The CR16A also features an innovative electromagnetic brake protection, which reduces the end tool drop distance at power failure.
