Dobot CR10AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology
Dobot CR10AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology
Scan code: LN164512 Manufacturer code: 1200000219
£18,879.98Item currently awaiting an ETA
Pre order

Dobot CR10AS Collaborative 6-Axis Robotic Arm with SafeSkin™ Technology

Dobot CR10AS Collaborative 6-Axis Robotic Arm, SafeSkin, Max Payload 10Kg, 1300mm Working Radius, Pre-Collision Sensing

Scan code: LN164512 Manufacturer code: 1200000219
£18,879.98
Item currently awaiting an ETA
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £532.33 / month (APR 16.9%) for 48 months or 0% for 4 months
  • With a 10% deposit from just £471.56 / month (APR 15.9%)

Suggested Alternatives

CR10AS Wide Radius Cobot with SafeSkin from DOBOT

CR10AS Collaborative Robot from DOBOT

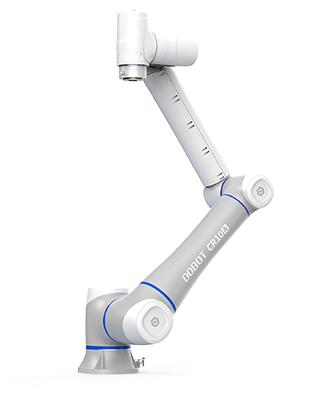

A Collaborative Robot The DOBOT CR10AS robotic arm offers a maximum reach of 1525mm and a top operating speed of 4 m/s, featuring advanced DH parameters compensation and vibration suppression for high-speed reliability. Equipped with SafeSkin pre-collision detection, it ensures safe human-machine collaboration. With a 10kg payload capacity, ±0.03mm repeatability, and versatile communication interfaces, the CR10AS is designed for efficient, stable manufacturing automation.

CR10AS

Collaborative Robot

Banner of Cobot
Safety

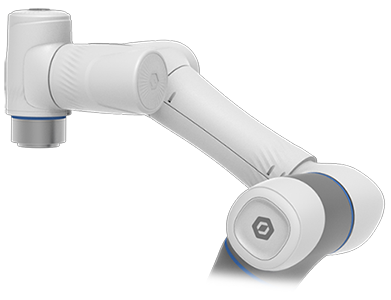

SafeSkin Innovative Pre-Collision Sensing Technology Redefining safety in human-robot collaboration. The enhanced non-contact collision sensing enables pre-collision halting for superior protection. Crafted from soft, durable silicone with a wearable, all-in-one wrap design that delivers full 360° coverage for safer, smarter interaction.

Application Scenarios

Loading and Unloading

Loading and Unloading

Assembly

Assembly

Bin Picking

Bin Picking

Gluing

Gluing

Quality Inspection

Quality Inspection

Screwdriving

Screwdriving

Transporting

Transporting

Specifications
DOF 6
Safeskin Yes
Weight 40 Kg
Max. Payload 10 Kg
Working Radius 1300 mm
Maximum Working Speed 5 m/s
Range of Motion (J1) ±360 °
Range of Motion (J2) ±360 °
Range of Motion (J3) ±160 °
Range of Motion (J4) ±360 °
Range of Motion (J5) ±360 °
Range of Motion (J6) ±360 °
Max. Working Speed (J1) 150 °/s
Max. Working Speed (J2) 150 °/s
Max. Working Speed (J3) 180 °/s
Max. Working Speed (J4) 223 °/s
Max. Working Speed (J5) 223 °/s
Max. Working Speed (J6) 223 °/s
Force Sensor (Range)
Force Sensor (Overload)
Force Sensor (Accuracy)
Force Sensor (Precision)
End Effector IO (DI) 2 Channels
End Effector IO (DO) 2 Channels
End Effector IO (AO) 2 Channels
Repeatability ±0.03 mm
IP Rating IP54
Temperature Range 0~50 °C
Power Consumption 350 W
Installation Method Any Angle
Cable Length (Robot-to-Control) 5 m
Material(s)
  • ABS Plastic
  • Aluminium Alloy
Additional Information
Scan Code LN164512
Model Number 1200000219
GTIN 0000
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
SCAN
Telephone:
01204-474747
Buying Guide
Need help? Read our Robotics Buying Guide
