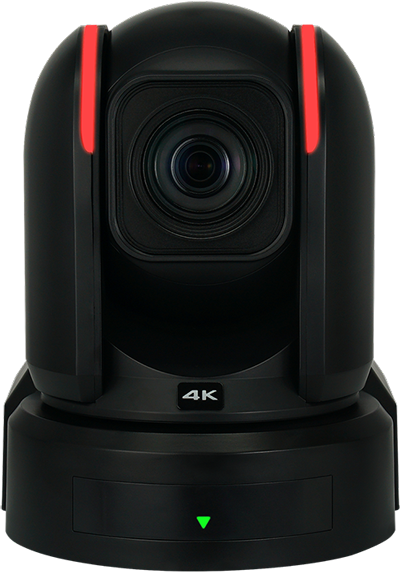

Bolin R9-418N 4K NDI PTZ Camera (Black)
Bolin R9-418N 4K NDI PTZ Camera, Black, 4K30, 18x Zoom, NDIHX3, 12GSDI/HDMI/RJ45
Email me when the availability or price changes
Finance this product
- From £162.92 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £144.32 / month (APR 15.9%)
Suggested Alternatives
Bolin R9-420F PTZ Camera, Black, 4K60, 20x Zoom, 12GSDI/HDMI/RJ45Bolin R9-420F 4K60 PTZ Camera (Black)
LN163018
No customer review
Bolin R9-418F 4K PTZ Camera, White, 4K30, 18x Zoom, SDI/HDMI/RJ45Bolin R9-418F 4K PTZ Camera (White)
LN163020
No customer review
Bolin - 'R9-418N 4K NDI PTZ Camera'
Exceptional 4K ClarityThe Bolin R9-418N 4K NDI PTZ Camera is engineered for broadcast, live production, and professional AV applications, delivering outstanding 4K image quality with remarkable clarity and depth. Built around a cutting-edge 1-inch Sony Exmor R CMOS sensor and Zeiss Vario-Sonnar T lens, it excels in low-light conditions, ensuring true-to-life colour reproduction and cinematic detail. This innovative PTZ camera supports NDI High Bandwidth, NDI HX3, and NDI 6 protocols, offering seamless IP-based video streaming and robust interoperability for multi-venue productions, studio installations, and distributed workflows. Featuring advanced optical stabilisation, a rapid 18x zoom (4K), and versatile outputs including dual SDI, HDMI, Optical SDI, and IP, the R9-418N delivers professional-grade reliability and flexibility, making it an essential solution for modern broadcast environments and virtual production studios.
1 Inch Large 4K Sensor
Sony 4K image blockBolin's R9-418N 1-Inch 4K NDI PTZ Camera features a Sony 4K image block with a 1.0-type sensor, offering a large light-receiving area for crisp, noise-free, high-definition imaging. It also includes mechanical optical stabilisation for enhanced clarity and stability.
• 1-inch type Exmor R CMOS Large Image Sensor
• 14.4 Megapixels
• Best Image Quality in class
• 4K with 18X zoom, FHD with 24X zoom
• Zeiss Lens Constant F2.8 Aperture
• Optical Image Stabiliser
• Black Level
• Colour Matrix
• ND Filter
• True WDR
4K Lens 18X Zoom RangeThe high-quality lens offers a bright F2.8 maximum aperture and up to 18X zoom range in 4K/29.97/30fps quality, 24x zoom range when FHD(1080p59.94/60fps) resolution is used. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups, ensuring critical detail is not missed.
best in classThe new FCB-ES8230 represents a new avenue of high-quality and 'best in class' images in stunning 4K clarity thanks to the combination of Sony's 1-type Exmor R CMOS sensor, high-quality lens and Sony's unique ISP engine.
4K30The FCB-ES8230 offers 4K resolution at 30fps together with an integrated super resolution zoom up to 18x in 4K quality. An additional 24x zoom in FHD resolution.
Capture high-quality, crisp,
clear imagesThe high-performance 1-type Exmor R CMOS image sensor achieves superb 4K (QFHD) and FHD picture quality. Using the latest Sony sensor technology combined with the best optical zoom lens, the FCB-ES8230 produces high-quality images in excellent detail and clarity.
Fast, bright lens with rapid 18x(4K), 24X(FHD) zoom rangeThe high-quality lens offers a bright F2.8 maximum aperture and 18x/24x zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups, ensuring critical detail is not missed.
Get a steadier picture with optical image stabilisationIn a first for FCB technology and inherited from our world-leading professional camcorder technology, the FCB-ES8230 comes with a built-in optical image stabilisation capability, countering the effects of blurred, shaky images caused by low-frequency vibration and movement.
Wide range of features for versatile operationVersatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Black & White, Mirror Image, Colour)

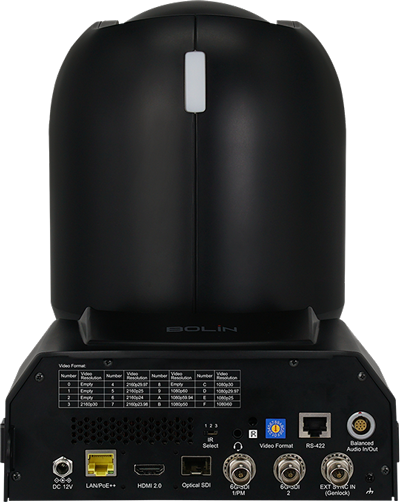

R9-418N Output Interface
NDI HX3
NDI 6 Ready
NDI Embedded Bridge
RTSP RTMP RTMPS SRT
Dual 6G-SDI
HDMI 2.0
SFP Optical SDI
Genlock
True Dual Output
XLR Broadcast audio
FreeD
Serial/NDI Control
HDMI, SDI, NDI Full Format• 3840x2160P 30/29.97/25/24/23.98
• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard• SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• SMPTE 2081(6Gb/s)
• With SMPTE352 SDI Metadata Supported
NDI Streaming
Bolin PTZ Camera With NDI Embedded BridgeNDI Bridge revolutionises remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location.
With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups are required, and configurations can easily be done ahead of time for plug-and-play operation in the field.
Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.
It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe.
R9-418N NDI PTZ Camera offers high-quality, low-latency NDI High Bandwidth (and NDI HX3) streaming with NDI Embedded Bridge and NDI 6 ready for live and remote production.
PTZ
FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.
PTZ Movement-Smooth, Accurate and Quiet• PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 70°/s
• TILT: 120° (-30° to +90°); Fully proportional, speed 0.05° to 60°/s
• Preset: 255 positions, Speed 70°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement
Control• IP Control
• Serial Control
• IR Remote Control
• Rest API
• NDI
• VISCA Over IP
• FreeD Supported
Other Features
unique portable body design• On-screen character generator
• All firmware upgrade via IP
• Front and rear Tally Light
• POE++ and 12VDC/AC
• Built-in handle
• Genlock
• HDMI cable secure mount
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defence Authorisation Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
IEC 60601-Certified Medical GradeIEC 60601 certification for use in medical spaces where signal integrity and electromagnetic safety are essential. Its large 1" sensor and true 4K resolution provide the clarity and detail needed for surgical video capture, clinical observation, and live medical training. Designed for integration into professional AV systems, it supports workflows commonly used in hospitals, teaching institutions, and telemedicine platforms.
