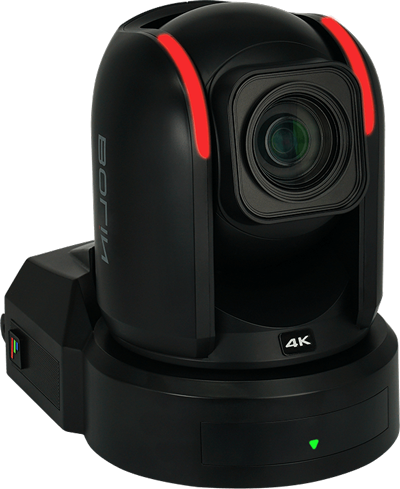

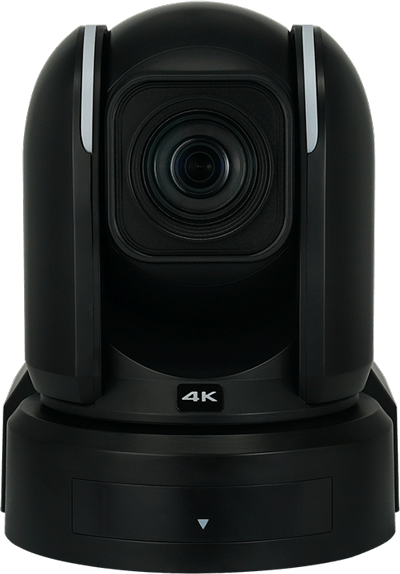

Bolin R9-420F 4K60 PTZ Camera (Black)
Bolin R9-420F PTZ Camera, Black, 4K60, 20x Zoom, 12GSDI/HDMI/RJ45
Email me when the availability or price changes
Finance this product
- From £105.23 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £93.21 / month (APR 15.9%)
Suggested Alternatives
Bolin R9-418F 4K PTZ Camera, Black, 4K30, 18x Zoom, SDI/HDMI/RJ45Bolin R9-418F 4K PTZ Camera (Black)
LN163017
No customer review
Bolin R9-418F 4K PTZ Camera, White, 4K30, 18x Zoom, SDI/HDMI/RJ45Bolin R9-418F 4K PTZ Camera (White)
LN163020
No customer review
Bolin - 'R9-420F 4K60 PTZ Camera'
Ultra-HD PrecisionThe Bolin R9-420F 4K60 Professional PTZ Camera sets a new benchmark for high-performance video acquisition in studio broadcast, live production, and professional AV environments. Engineered with the advanced Sony IMX715 image sensor and an 8-megapixel ultra-high-resolution 20x optical zoom lens, this PTZ camera ensures impeccable Ultra High-Definition (UHD) image quality, even at fast-paced 60 frames per second, for dynamic events, immersive productions, and virtual studios. With state-of-the-art connectivity options including dual 12G-SDI, HDMI, and robust IP streaming protocols, the R9-420F combines versatility, precision, and reliability, empowering production teams to capture every detail with true professional clarity.
4K60 UHD
equipped with Bolin 4K60 image moduleBolin image module BM4620 equipped with Sony image sensor IMX715, and an 8M ultra high resolution 20X optical lens, integrated with an AI-based algorithm ISP. This image module delivers high-quality and clean noiseless high-speed 60fps UHD colour image.
• 1/2.8 Inch IMX715 High Class Sensor
• Crisp and clean UHD image quality
• Crystal 20X High Resolution optical zooms
• Super WDR
• Gamma Level
• AI Face Detection Auto Focus/Exposure

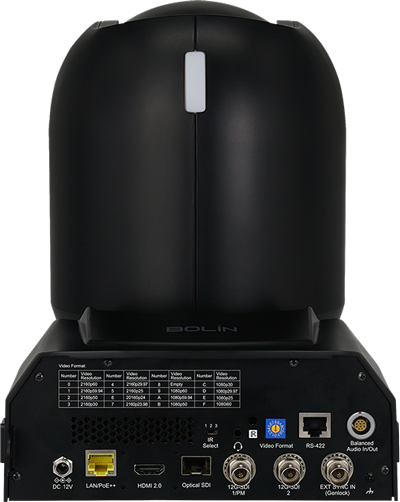

R9-420F Output Interface
Dual 12G-SDI
HDMI 2.0
SFP Optical SDI
Genlock
4K60 IP Streaming
RTSP RTMP RTMPS SRT
True Dual-Output
FreeD
Embedded audio
XLR Broadcast audio
character generator
Serial/IP Control
High-quality Image
Low Latency
Low Bandwidth
Handle Built-in
HDMI, SDI, IP Full Format• 3840x2160P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard• SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• SMPTE 2081(6Gb/s), SMPTE 2082‑1(12Gb/s)
• With SMPTE352 SDI Metadata Supported
True Tri-OutputSimultaneously output SDI, HDMI, and IP, which can be set to independent formats for different application use.
IP Streaming
Fast hevcOnly 45Mbps bandwidth that streams 4K60 at 4:2:2 12bit quality in less than 2 frames/30ms latency.
• Extremely low latency
• High-quality image
• Low Bandwidth
Open PlatformBolin FAST HEVC codec camera can be decoded by standard HEVC decoder without having Ultra Low Latency. HEVC codec camera/device can be decoded by Bolin FAST HEVC decoder without having Ultra Low Latency.
FAST HEVC Codec Built-in• H.264/265 - AVC/HEVC
• Hardware FPGA based encoder built-in
• High Quality, Ultra Low Latency, Low Bandwidth
• Browser, hardware and software decode-able
• Up to 4K60, Full HD
• Two IP video streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS., SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode
• Open platform
PTZ
FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.
PTZ Movement-Smooth, Accurate and Quiet• PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 70°/s
• TILT: 120° (-30° to +90°); Fully proportional, speed 0.05° to 60°/s
• Preset: 255 positions, Speed 70°/s, 0~5 Level Adjustable, Accuracy: 0.03°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement
Various Control Methods• IP Control
• Serial Control
• IR Remote Control
• Bolin API
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD
AI Powered Auto Focus and Auto ExposureBuilt with Bolin’s latest AI-powered facial analytics engine, which enables smart focus and smart exposure to provide faster, more precise focusing and improved auto exposure on faces in complex lighting environments.
Other Features
portable body design• On-screen character generator
• All firmware upgrades via IP
• Front and rear Tally Light
• POE++ and 12VDC/AC
• Built-in handle
• Genlock
• HDMI cable secure mount
• Available Colours: Black, White
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defense Authorization Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
IEC 60601-Certified Medical GradeIEC 60601 certification for use in medical spaces where signal integrity and electromagnetic safety are essential. Its large 1" sensor and true 4K resolution provide the clarity and detail needed for surgical video capture, clinical observation, and live medical training. Designed for integration into professional AV systems, it supports workflows commonly used in hospitals, teaching institutions, and telemedicine platforms.
