Bolin R9-420N 4K60 FreeD NDI PTZ Camera (Black)
Bolin R9-420N FreeD NDI PTZ Camera, Black, 4K60, 20x Zoom, NDIHX3, 12GSDI/HDMI/RJ45
Email me when the availability or price changes
Finance this product
- From £117.75 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £104.30 / month (APR 15.9%)
Suggested Alternatives
Bolin R9-418F 4K PTZ Camera, Black, 4K30, 18x Zoom, SDI/HDMI/RJ45Bolin R9-418F 4K PTZ Camera (Black)
LN163017
No customer review
Bolin R9-420F PTZ Camera, Black, 4K60, 20x Zoom, 12GSDI/HDMI/RJ45Bolin R9-420F 4K60 PTZ Camera (Black)
LN163018
No customer review
Bolin R9-418F 4K PTZ Camera, White, 4K30, 18x Zoom, SDI/HDMI/RJ45Bolin R9-418F 4K PTZ Camera (White)
LN163020
No customer review
Bolin - 'R9-420N 4K60 FreeD NDI PTZ Camera'
Cutting-Edge 4K60 NDI PTZ CameraThe Bolin R9-420N 4K60 FreeD NDI PTZ Camera delivers a powerful performance for broadcast, live production, and AV environments. Equipped with a Sony 4K sensor and a 20x optical zoom, this camera produces 4K ultra high-definition video at a smooth 60 frames per second, ensuring exceptional image quality and clarity even in demanding scenarios. Designed for versatility, the R9-420N supports a wide range of outputs, including 12G-SDI, HDMI, and IP streaming, and leverages NDI High Bandwidth for low-latency, networked video workflows, making it the ideal choice for professionals seeking cutting-edge imaging and robust connectivity.
4K60 UHD
equipped with Bolin 4K60 image moduleBolin image module BM4620 equipped with Sony image sensor IMX715, and an 8M ultra high resolution 20X optical lens, integrated with an AI-based algorithm ISP, this image module delivers high quality and clean noiseless high speed 60fps UHD colour image.
• 1/2.8 Inch IMX715 High Class Sensor
• Crisp and clean UHD image quality
• Crystal 20X High Resolution optical zooms
• Super WDR
• Gamma Level
• AI Face Detection Auto Focus/Exposure

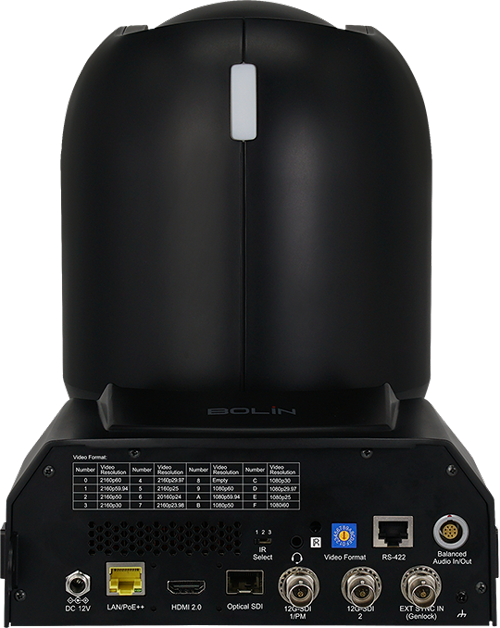

R9-420N PTZ Camera Interface
NDI HX3
NDI 6 Ready
NDI Embedded Bridge
RTSP, RTMP, RTMPS, SRT
Dual 12G-SDI
HDMI 2.0
SFP Optical SDI
Genlock
True Dual Output
XLR Broadcast audio
FreeD
Serial/NDI Control
HDMI, SDI, NDI Full Format• 3840x2160P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard• SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• SMPTE 2081(6Gb/s), SMPTE 2082‑1(12Gb/s)
• With SMPTE352 SDI Metadata Supported
NDI Streaming
NDI Embedded BridgeNDI Bridge revolutionises remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location.
With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups are required, and configurations can easily be done ahead of time for plug-and-play operation in the field.
Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.
It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe.
R9-420N NDI PTZ Camera offers 4K60 high-quality low latency NDI High Bandwidth (and NDI HX3) streaming with NDI Embedded Bridge and NDI 6 ready for live and remote production.
PTZ
FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.
PTZ Movement-Smooth, Accurate and Quiet• PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 70°/s
• TILT: 120° (-30° to +90°); Fully proportional, speed 0.05° to 60°/s
• Preset: 255 positions, Speed 70°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement
• FreeD protocol for virtual reality production system
Control• IP Control
• Serial Control
• IR Remote Control
• Bolin API
• NDI
• VISCA Over IP
• FreeD Supported
AI Powered Auto Focus and Auto ExposureBuilt with Bolin’s latest AI-powered facial analytics engine, which enables smart focus and smart exposure to provide faster, more precise focusing and improved auto exposure on faces in complex lighting environments.
Other Features
unique portable body design• On-screen character generator
• All firmware upgrades via IP
• Front and rear Tally Light
• POE++ and 12VDC/AC
• Built-in handle
• Genlock
• HDMI cable secure mount
• NDAA Compliant
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defence Authorisation Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
IEC 60601-Certified Medical GradeIEC 60601 certification for use in medical spaces where signal integrity and electromagnetic safety are essential. Its large 1" sensor and true 4K resolution provide the clarity and detail needed for surgical video capture, clinical observation, and live medical training. Designed for integration into professional AV systems, it supports workflows commonly used in hospitals, teaching institutions, and telemedicine platforms.
