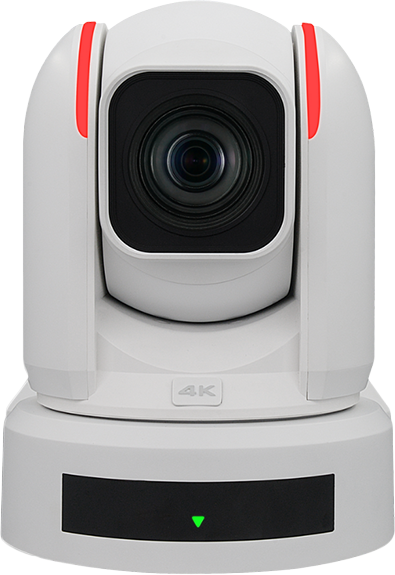

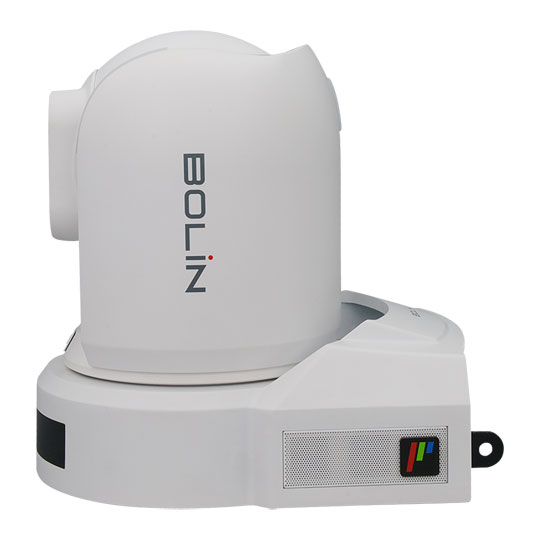

Bolin - 'R9-418F 4K PTZ Camera'
White
Broadcast-Grade Ultra HD PTZThe Bolin R9-418F 1 Inch 4K PTZ Camera redefines indoor PTZ imaging, delivering industry-leading image quality and clarity through its 1 Inch type Exmor R CMOS sensor and advanced optical stabilisation. Designed for professional live events, studio, and broadcast environments, this camera boasts a remarkable 4K resolution with up to 18x powerful zoom and seamless transitions from wide shots to intricate close-ups. Engineered for versatility and low-latency IP streaming, the R9-418F integrates cutting-edge features such as FreeD protocol for VR/AR workflows, true WDR, and robust low-light performance, ensuring crystal-clear, noiseless visuals.

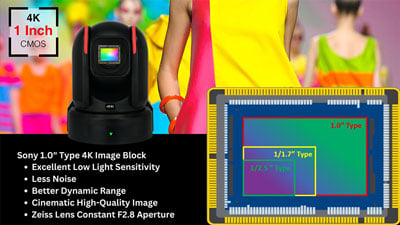

1 Inch Large 4K Sensor

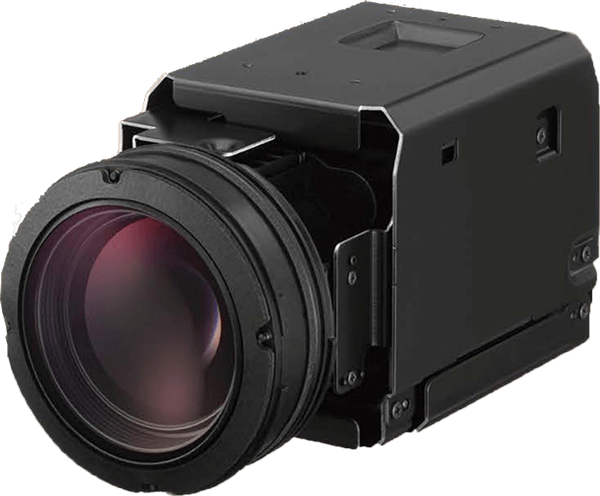

Sony 4K image blockBolin's R9-418F 1-Inch 4K PTZ Camera features a Sony 4K image block with a 1.0-type sensor, offering a large light-receiving area for crisp, noise-free, high-definition imaging. It also includes mechanical optical stabilisation for enhanced clarity and stability.
• 1-inch type Exmor R CMOS Large Image Sensor
• 14.4 Megapixels
• Best Image Quality in class
• 4K with 18X zoom, FHD with 24X zoom
• Zeiss Lens Constant F2.8 Aperture
• Optical Image Stabiliser
• Black Level
• Colour Matrix
• ND Filter
• True WDR

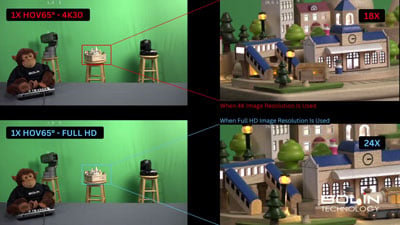

Fast, bright lens with rapid up to 18x zoom rangeThe high-quality lens offers a bright F2.8 maximum aperture and up to 18X zoom range in 4K/29.97/30fps quality, 24x zoom range when FHD(1080p59.94/60fps) resolution is used. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups, ensuring critical detail is not missed.
best in classThe new FCB-ES8230 represents a new avenue of high-quality and 'best in class' images in stunning 4K clarity thanks to the combination of Sony's 1-type Exmor R CMOS sensor, high-quality lens and Sony's unique ISP engine.
4K30The FCB-ES8230 offers 4K resolution at 30fps together with an integrated super resolution zoom up to 18x in 4K quality. An additional 24x zoom in FHD resolution.
Capture high-quality, crisp,
clear imagesThe high-performance 1-type Exmor R CMOS image sensor achieves superb 4K (QFHD) and FHD picture quality. Using the latest Sony sensor technology combined with the best optical zoom lens, the FCB-ES8230 produces high-quality images in excellent detail and clarity.
Fast, bright lens with rapid 18x(4K), 24X(FHD) zoom rangeThe high-quality lens offers a bright F2.8 maximum aperture and 18x/24x zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups, ensuring critical detail is not missed.
Get a steadier picture with optical image stabilisationIn a first for FCB technology and inherited from our world-leading professional camcorder technology, the FCB-ES8230 comes with a built-in optical image stabilisation capability, countering the effects of blurred, shaky images caused by low-frequency vibration and movement.
Wide range of features for versatile operationVersatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Black & White, Mirror Image, Colour)

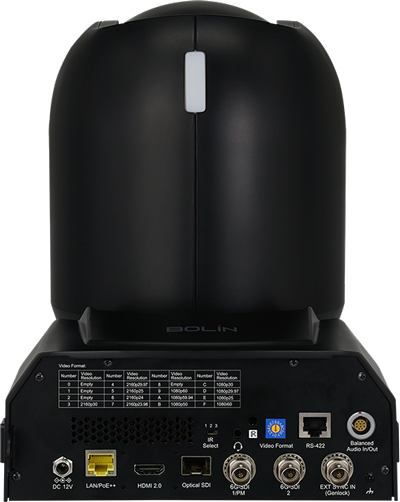

R9-418F Output Interface
Dual 6G-SDI
HDMI 2.0
SFP Optical SDI
Genlock
4K IP Streaming
RTSP RTMP RTMPS SRT
True Dual-Output
FreeD
Embedded audio
XLR Broadcast audio
character generator
Serial/IP Control
High-quality Image
Low Latency
Low Bandwidth
Handle Built-in
HDMI, SDI, IP Full Format• 3840x2160P 30/29.97/25/24/23.98
• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard• SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• SMPTE 2081(6Gb/s)
• With SMPTE352 SDI Metadata Supported

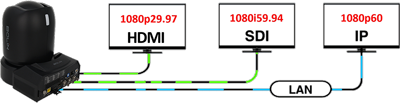

True Tri-OutputSimultaneously output SDI, HDMI, and IP, which can be set to independent formats for different application use.

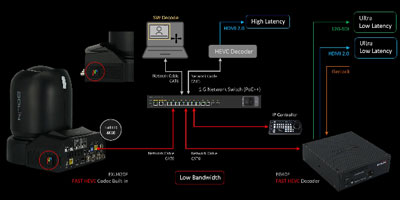

IP Streaming
Fast hevcOnly 45Mbps bandwidth that streams 4K60 at 4:2:2 12bit quality in less than 2 frames/30ms latency.
• Extremely low latency
• High-quality image
• Low Bandwidth

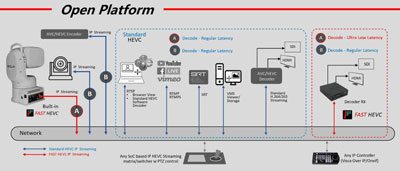

Open PlatformBolin FAST HEVC codec camera can be decoded by standard HEVC decoder without having Ultra Low Latency. HEVC codec camera/device can be decoded by Bolin FAST HEVC decoder without having Ultra Low Latency.
FAST HEVC Codec Built-in• H.264/265 - AVC/HEVC
• Hardware FPGA based encoder built-in
• High Quality, Ultra Low Latency, Low Bandwidth
• Browser, hardware and software decode-able
• Up to 4K60, Full HD
• Two IP video streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS., SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode
• Open platform
PTZ

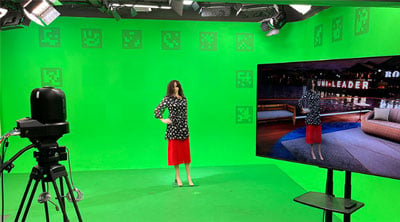

FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.
PTZ Movement-Smooth, Accurate and Quiet• PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 70°/s
• TILT: 120° (-30° to +90°); Fully proportional, speed 0.05° to 60°/s
• Preset: 255 positions, Speed 70°/s, 0~5 Level Adjustable, Accuracy: 0.03°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement
Various Control Methods• IP Control
• Serial Control
• IR Remote Control
• Software Control-Rest API
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD
Other Features

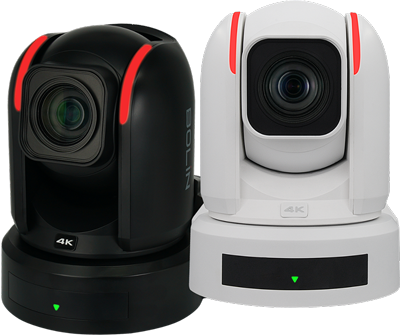

portable body design• On-screen character generator
• All firmware upgrades via IP
• Front and rear Tally Light
• POE++ and 12VDC/AC
• Built-in handle
• Genlock
• HDMI cable secure mount
• Available Colours: Black, White
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defense Authorization Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
IEC 60601-Certified Medical GradeIEC 60601 certification for use in medical spaces where signal integrity and electromagnetic safety are essential. Its large 1" sensor and true 4K resolution provide the clarity and detail needed for surgical video capture, clinical observation, and live medical training. Designed for integration into professional AV systems, it supports workflows commonly used in hospitals, teaching institutions, and telemedicine platforms.
