Bolin - 'EXU420N 4K60 Outdoor NDI PTZ Camera'
Rugged Performance, Stunning ClarityThe Bolin EXU420N 4K60 Outdoor NDI PTZ Camera sets a new benchmark for outdoor broadcast and professional video production, delivering stunning 4K60 video with exceptional clarity, smooth motion, and precise colour accuracy. Equipped with a 20x optical zoom and a Sony IMX715 image sensor, this rugged camera is designed for all environments, with its IP67-rated waterproof casing, integrated heater, defroster, and rain wiper, ensuring uninterrupted performance in extreme weather. With robust connectivity including NDI High Bandwidth, NDI HX3, dual 12G-SDI, HDMI 2.0, and SFP Optical SDI, plus embedded NDI Bridge for remote collaboration, the EXU420N simplifies multi-location and live event streaming for professional teams anywhere in the world.
4K60 UHD
equipped with Bolin 4K60 image moduleBolin image module BM4620 equipped with Sony image sensor IMX715, and an 8M ultra high resolution 20X optical lens, integrated with an AI-based algorithm ISP. This image module delivers high-quality and clean noiseless high-speed 60fps UHD colour image.
• 1/2.8 Inch CMX715 High Class Sensor
• Crisp and clean UHD image quality
• Crystal 20X High Resolution optical zooms
• Super WDR
• Gamma Level
• AI Face Detection Auto Focus/Exposure

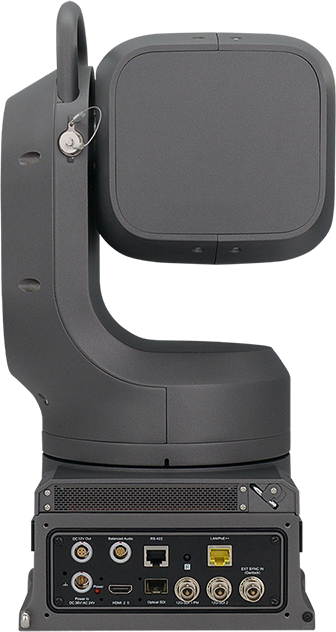

EXU420N PTZ Camera Interface
NDI HX3
NDI 6 Ready
NDI Embedded Bridge
RTSP, RTMP, RTMPS, SRT
Dual 12G-SDI
HDMI 2.0
SFP Optical SDI
Genlock
True Dual Output
XLR Broadcast audio
FreeD
Serial/NDI Control
HDMI, SDI, NDI Full Format• 3840x2160P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard• SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• SMPTE 2081(6Gb/s), SMPTE 2082‑1(12Gb/s)
• With SMPTE352 SDI Metadata Supported
NDI Streaming
NDI Embedded BridgeNDI Bridge revolutionises remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location.
With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups are required, and configurations can easily be done ahead of time for plug-and-play operation in the field.
Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.
It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe.
EXU420N Outdoor 4K60 NDI PTZ Camera offers high-quality low latency NDI High Bandwidth (and NDI HX3) streaming with NDI Embedded Bridge and NDI 6 ready for live and remote production.
PTZ
FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.
PTZ Movement-Smooth, Accurate and Quiet• PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 70°/s
• TILT: 205° (-30° to +90°); Fully proportional, speed 0.05° to 60°/s
• Preset: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
Control• IP Control
• Serial Control
• IR Remote Control
• Bolin API
• VISCA, Visca Over IP
• ONVIF
• NDI Control
• PELCO P/D
• FreeD Supported
AI Powered Auto Focus and Auto ExposureBuilt with Bolin’s latest AI-powered facial analytics engine, which enables smart focus and smart exposure to provide faster, more precise focusing and improved auto exposure on faces in complex lighting environments.
Other Features
Outdoor PTZ• On-screen character generator
• All firmware upgrades via IP
• Tally Light
• POE++ and 36VDC/24VAC
• Power Output: 12VDC
• Dark Grey/White
• NDAA Compliant
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defence Authorisation Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
Tally Light• 360 degrees viewable tally light
• Removable when tally light is not required
Rugged And Durable
Extreme Weather Survival• Wind Load Durability, steady operational and non-destructive at 30-60 m/s or less
• Heater and Defroster built-in
• –40 °C to 60 °C (-40°F to 140°F) operational
Hidden-Type Rain Wiper and Sun Shield
All Stainless Steel/brass/metal interior mechanical parts
Entire body IP67 rated dustproof and waterproof
