Bolin - 'EXU248N Long Range Outdoor NDI PTZ Camera'
Long-Range 4K Outdoor NDI PTZ CameraThe Bolin EXU248N Long Range Outdoor NDI PTZ Camera is a professional-grade outdoor camera designed to deliver stunning UHD 4K and Full HD video with exceptional clarity and detail. Featuring a large 1-inch Sony Exmor R CMOS sensor and a Zeiss Vario-Sonnar T lens with up to 48x zoom in Full HD and 18x zoom in 4K, this rugged camera excels in extreme weather conditions with an IP67-rated housing, built-in heater, defroster, and wiper. It supports multiple simultaneous outputs, including 6G-SDI, HDMI, and IP streaming, and is NDI 6-ready with an embedded bridge for seamless remote production workflows. With advanced features like optical image stabilisation, FreeD protocol for AR/VR applications, and extensive control options, the EXU248N is ideal for sports, live events, and critical outdoor broadcast scenarios, delivering high reliability and superb image quality.

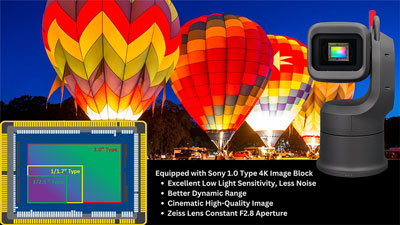

1 Inch Large 4K Sensor
Sony 4K image blockBolin's EXU248N 1-Inch 4K NDI Outdoor PTZ Camera features a Sony 4K image block with a 1.0-type sensor, offering a large light-receiving area for crisp, noise-free, high-definition imaging. It also includes mechanical optical stabilisation for enhanced clarity and stability.
• 1-inch type Exmor R CMOS Large Image Sensor
• 14.2 Megapixels
• Best Image Quality in class
• 4K with 18X zoom, FHD with 24X zoom
• Zeiss Lens Constant F2.8 Aperture
• Optical Image Stabiliser
• Black Level
• Color Matrix
• ND Filter
• True WDR
Fast, bright lens with rapid up to 18x zoom rangeThe high-quality 4K lens offers a bright F2.8 maximum aperture and up to 48X zoom range when FHD(1080p59.94/60fps) resolution is used. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups, ensuring critical detail is not missed.
best in classThe new FCB-ES8230 represents a new avenue of high-quality and 'best in class' images in stunning 4K clarity thanks to the combination of Sony's 1-type Exmor R CMOS sensor, high-quality lens and Sony's unique ISP engine.
4K30The FCB-ES8230 offers 4K resolution at 30fps together with an integrated super resolution zoom up to 18x in 4K quality. An additional 24x zoom in FHD resolution.
Capture high-quality, crisp,
clear imagesThe high-performance 1-type Exmor R CMOS image sensor achieves superb 4K (QFHD) and FHD picture quality. Using the latest Sony sensor technology combined with the best optical zoom lens, the FCB-ES8230 produces high-quality images in excellent detail and clarity.
Fast, bright lens with rapid 18x(4K), 24X(FHD) zoom rangeThe high-quality lens offers a bright F2.8 maximum aperture and 18x/24x zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups, ensuring critical detail is not missed.
Get a steadier picture with optical image stabilisationIn a first for FCB technology and inherited from our world-leading professional camcorder technology, the FCB-ES8230 comes with a built-in optical image stabilisation capability, countering the effects of blurred, shaky images caused by low-frequency vibration and movement.
Wide range of features for versatile operationVersatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Black & White, Mirror Image, Colour)
R9-418F Output Interface
NDI HX3
NDI 6 Ready
NDI Embedded Bridge
RTSP, RTMP, RTMPS, SRT
Dual 6G-SDI
HDMI 2.0
SFP Optical SDI
Genlock
True Dual Output
XLR Broadcast audio
FreeD
Serial/NDI Control
HDMI, SDI, NDI Full Format• 3840x2160P 30/29.97/25/24/23.98
• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard• SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• SMPTE 2081(6Gb/s)
• With SMPTE352 SDI Metadata Supported
NDI Streaming
Bolin PTZ Camera With NDI Embedded BridgeNDI Bridge revolutionises remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location.
With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups are required, and configurations can easily be done ahead of time for plug-and-play operation in the field.
Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.
It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe.
EXU248N Outdoor NDI PTZ Camera offers high-quality low latency NDI High Bandwidth (and NDI HX3) streaming with NDI Embedded Bridge and NDI 6 ready for live and remote production.
PTZ
FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.
PTZ Movement-Smooth, Accurate and Quiet• PAN: 340° (-170° to +170°); Fully proportional, speed 0.08° to 60°/s
• TILT: 205° (-35° to +170°); Fully proportional, speed 0.08° to 60°/s
• Preset: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
• Smooth and Accurate Movement
Control• IP Control
• Serial Control
• IR Remote Control
• Bolin API
• VISCA, VISCA Over IP
• ONVIF
• NDI Control
• PELCO
• FreeD Support
Other Features
Outdoor PTZ• On-screen character generator
• All firmware upgrades via IP
• Tally Light
• POE++ and 36VDC/24VAC
• Power Output: 12VDC
• Dark Grey/White
• NDAA Compliant
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defence Authorisation Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
Tally Light• 360 degrees viewable tally light
• Removable when tally light is not required
Rugged And Durable
Extreme Weather Survival• Wind Load Durability, steady operational and non-destructive at 30-60 m/s or less
• Heater and Defroster built-in
• –40 °C to 60 °C (-40°F to 140°F) operational
Hidden-Type Rain Wiper and Sun Shield
All Stainless Steel/brass/metal interior mechanical parts
Entire body IP67 rated dustproof and waterproof
