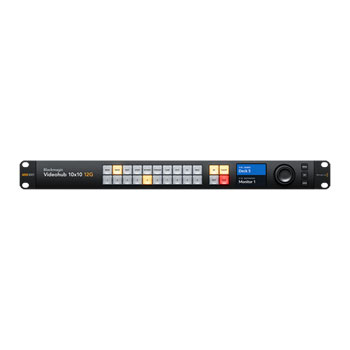

Blackmagic Design Videohub 10x10 12G
Blackmagic Design Videohub 10x10 12G, 10x10 12G-SDI, SDI Router and Control Panel, 4:2:2 and 4:4:4 12-bit, 1U Rackmount
Email me when the availability or price changes
Blackmagic - 'Videohub 10x10 12G'

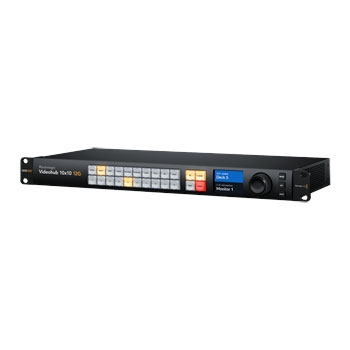

Perfect for Live Production and BroadcastIntroducing the Blackmagic Videohub 10x10 12G is an advanced video router that supports any combination of SD, HD and Ultra HD on the router at the same time all with zero latency. With 10 12G-SDI inputs and outputs, redundant power and reference connections in its 1RU form factor. The built-in full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large machined metal spin knob that has an electronic clutch. Also featuring SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Total Flexibility

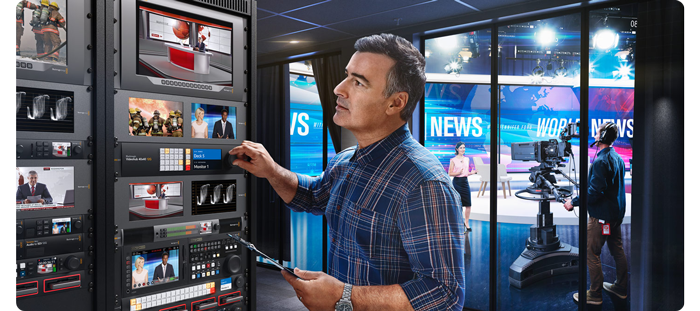

Eliminates Complex Cable MessBlackmagic Videohub 12G eliminates cable mess because you can plug all your SDI equipment into the router, then do connections electronically. You don't need complex system diagrams for your studio because you can connect any video input to any video output, or even a single video input to multiple video outputs. This means monitors can view any source in the studio. You get total flexibility to handle constant change or even emergencies. It lets you use multiple HyperDeck recorders for redundant mastering. Or you can route video to multiple streaming processors for all broadcast platforms. Blackmagic Videohub 12G is also great for adding extra inputs to an ATEM switcher.

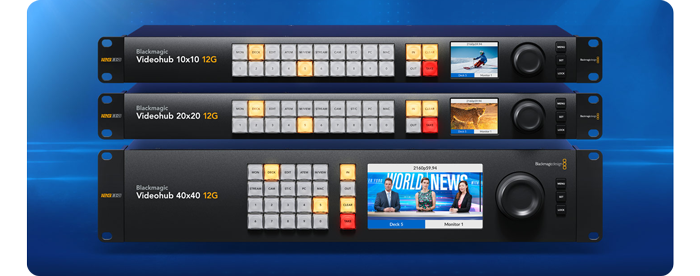

Three Great Models
Videohub 10x10 12GAdvanced 12G-SDI 10x10 zero latency video router which supports any combination of SD, HD and Ultra HD on the router at the same time. Features built in control panel with LCD and machined spin knob, SDI re-clocking and external software control.
Available here
Videohub 20x20 12GLarger 20x20 zero latency 12G-SDI video router which supports any combination of SD, HD and Ultra HD on the router at the same time. Features built in control panel with LCD and machined spin knob, SDI re-clocking and external software control.
Available here
Videohub 40x40 12GLargest 40x40 zero latency 12G-SDI video router which supports any combination of SD, HD and Ultra HD on the router at the same time. Features built in control panel with large LCD and machined spin knob, SDI re-clocking and external control.
Available here
Elegantly Designed Front Panel
built in front control panel The built-in front control panel lets you route video, so you get the perfect solution for live production racks that don't have the space for extra hardware panels. The front panel is similar to a Videohub Master Control Pro and it features a spin knob for browsing, direct entry buttons for speed and an LCD for displaying labels. However, because the panel is built into the router, you can also see live video on the LCD. The LCD also has menus so it lets you change router settings.

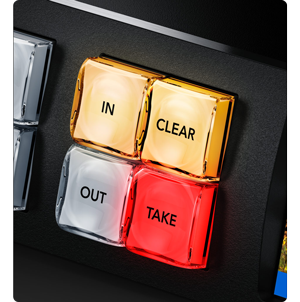

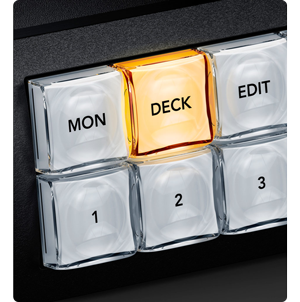

1. Shortcut ButtonsThe shortcut buttons allow direct entry of sources and destinations. They can also be used with the numeric keys. Plus if a button uses a dedicated input label, then they will act like a cut bus.
2. In ButtonThe in button switches the panel over so the spin knob and shortcut buttons will be selecting from the list of input video sources. By rolling the spin knob, you can see all your inputs.
3. Clear ButtonThe clear button is similar to undo and it lets you clear a new routing selection. It's the alternative to the take button, and it will clear the route to retain the current routing without change.
4. LCD for Labels and VideoThe LCD has large and easy to read labels that show the connection between inputs and outputs. Plus the LCD features live video so you can scroll sources based on viewing the content of the input.
5. Numeric KeypadThe numerical keypad has a range of numbers marked 0 through to 9. It allows multiple labels, such as Mon 1, Mon 2, Mon 3 etc. You would select one of the shortcut buttons first and then the number.
6. Out ButtonThe out button switches the panel to selecting the output. Normally you do this first, so you know what output you are going to change. You will then see the current input, before changing it.
7. Take ButtonThe take button is the final conformation that you want to accept the new input selection. This eliminates mistakes! You can also disable the take function for specific outputs for live routing.

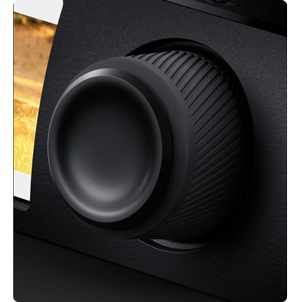

8. Spin KnobThe spin knob has a machined metal design, soft rubber coating and an electronic clutch. You can scroll labels in alphabetical order and then the clutch will stop the knob at the end of the list.
2.2 inch LCD Display

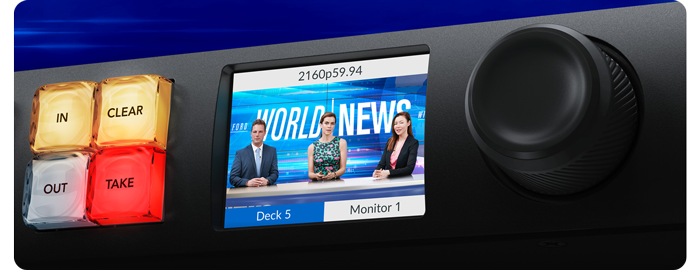

Change Router Crosspoints VisuallyWith a built in LCD, Blackmagic Videohub 12G can show you live video of all your router inputs. This means you can see all router inputs as live video before you change a route. There are also labels displayed below the live video to make it easy to identify the input you are viewing. What this means is you can scroll up and down the router sources in alphabetical order and see each input as live video, even if the inputs are different video standards. Imagine scrolling through your connections while viewing them as live video on the LCD. Plus in portable equipment racks where space is limited, the visual routing means you can see video inputs without adding an external SDI monitor.
12G-SDI UltraHD Video Connectivity
Advanced 12G-SDI for SD, HD

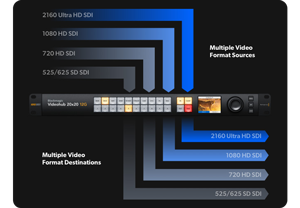

and Ultra HD RoutingAll models of Blackmagic Videohub 12G feature advanced 12G-SDI connections which are multi rate so they support any SD, HD and Ultra HD video format up to 2160p60 and will connect to any SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI equipment. Plus Blackmagic Videohub 12G also supports routing any video standard on the same router at the same time. That means on the 40x40 model you could route up to 40 different video standards at the same time. 12G-SDI gives you high frame rate Ultra HD via a single BNC connection that also plugs into all of your regular HD equipment! With 12G-SDI you get a future proof technology that connects to the equipment you have now and in the future.

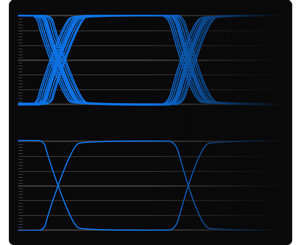

SDI Re-Clocking Built-in
Features Full SDI Re‑ClockingVideohub includes built in SDI re-clocking on every 12G-SDI input. SDI re-clocking regenerates the video signal for maximum video quality. This is extremely important because longer video cables degrade the signal. Expensive premium "digital" cables can help a little, but still cannot eliminate signal integrity loss due to cable lengths getting longer. With SDI re-clocking all of the SDI devices in your studio receive a regenerated signal with improved jitter performance. That means longer cable lengths, and no drop outs in your video.
External Hardware Control

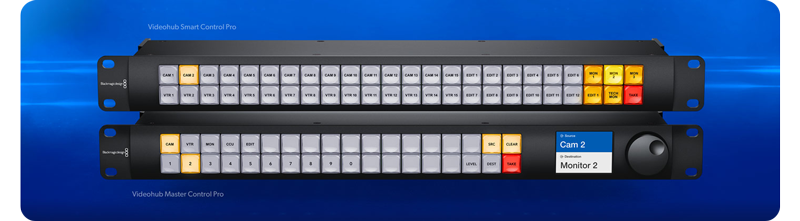

Add External Hardware Control PanelsAll Blackmagic Videohub routers can be remotely controlled, which is vital in large broadcast studios where the equipment connected to the router is located in different areas of the building. There are 2 different types of hardware panel available. The Videohub Master Control Pro is similar to the front panel and has a spin knob, LCD and shortcut buttons. While the Videohub Smart Control Pro model features all buttons and is generally programmed so the panel controls a single router output with each button programmed to a router input. Then you can just cut along the panel buttons to change the router output instantly. It works best when you install a smart panel below each video monitor.
Videohub Software Control

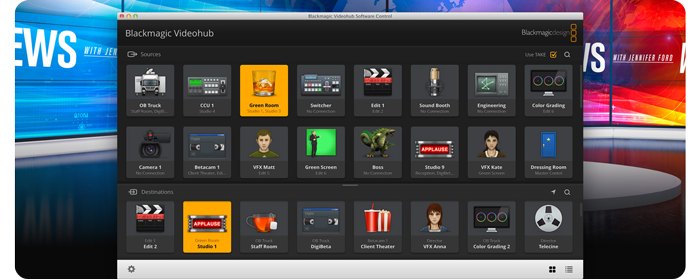

Get Router Control on Mac, Windows and iPadIf you need external router control that's affordable, then Videohub Software Control is perfect because it can be downloaded free. Videohub Software Control is available for both Mac and Windows, so you can run it on the computers you're already using for creative work. The software features large buttons that are easy to press. Each button can be customized to a router input, a router output, and has an icon assigned to help you identify it visually. The big buttons are great for use on a touchscreen PC, where the software becomes a large screen XY control panel. You can even download a version of the software for the Apple iPad.
Setup Utility

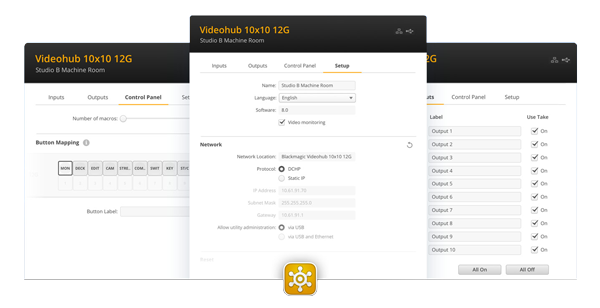

Includes Videohub Setup UtilityWhen you first purchase Blackmagic Videohub 12G, all the video inputs and outputs will have simple default labels, however you can customize them to match the equipment you have connected! That’s why the Blackmagic Videohub 12G installer includes Videohub Setup software, which lets you customize the router input and output labels. You can even enable the take button to be used when changing sources, plus the take button can be enabled for each specific video output. The Videohub Setup also lets you program the buttons on the front panel, update the router software, or configure external hardware panels. The software supports Mac and Windows and can be connected via Ethernet or USB.
Free Software Development Kit
Customize Router Control
with the Developer SDKVideohub includes a free software development kit so developers and system integrators can easily add protocol support for integration into broadcast automation systems. Plus all Videohub routers use a simple text based protocol thats easy to learn. This makes it very simple to create custom control solutions from all computer platforms and even embedded hardware such as Raspberry Pi and Arduino. The protocol can even be used with a Telnet app so you can experiment with controlling the router before you start coding! Plus the protocol is the same one used for the Videohub Software Control so it's well tested and includes all the features needed for complex control apps.
Videohub Features Better Image Quality

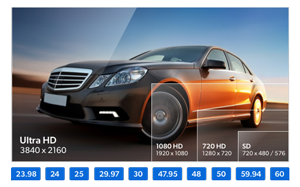

Supports Multiple FormatsWhen you need to work on global events then you need to stay updated with the latest technology and television standards. Videohub gives you support for all 525SD and 625SD, 720HD and 1080HD, and the Ultra HD video standards. Plus you can connect multiple video standards simultaneously.
Embedded Audio for Audio and VideoThe SDI standard includes up to 32 channels of embedded audio included with the SDI video signal. The advantage to embedded audio is that it all connects with a single BNC cable and all audio remains perfectly synchronized to the video. Plus all modern SDI equipment supports embedded SDI audio.

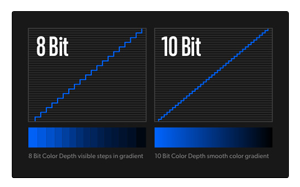

Deeper Bit Depth and Colour PrecisionVideohub is designed to support the highest quality video. 10-bit is the most commonly used standard as colours can be represented more accurately than 8-bit video. You can route 4:2:2 8-bit or 10-bit video in any standard, and it even works with 4:4:4 12-bit SDI up to 2160p30 for feature film.
