Blackmagic Design SmartView Duo 2

Blackmagic Design SmartView Duo 2

Thumbnail 1 : Blackmagic Design SmartView Duo 2 Thumbnail 2 : Blackmagic Design SmartView Duo 2 Thumbnail 3 : Blackmagic Design SmartView Duo 2
Scan code: LN52192 Manufacturer code: HDL-SMTVDUO2
£528.49Item currently awaiting an ETA
Pre order
From £18.51 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £47.88
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £528.49
Total inc. interest: £574.56
Monthly Payment: £25.81
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £528.49
Total inc. interest: £619.30
Monthly Payment: £18.51
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £528.49
Total inc. interest: £666.19
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £14.04 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Blackmagic Design - 'SmartView Duo'

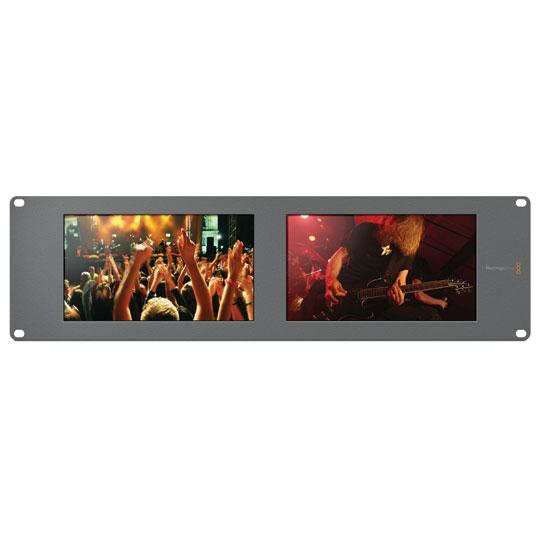

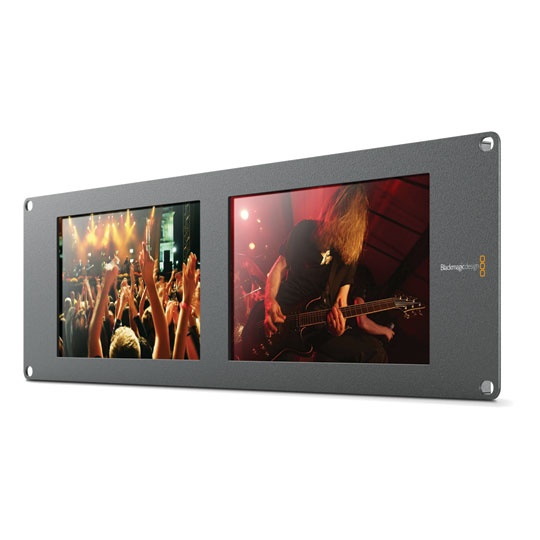

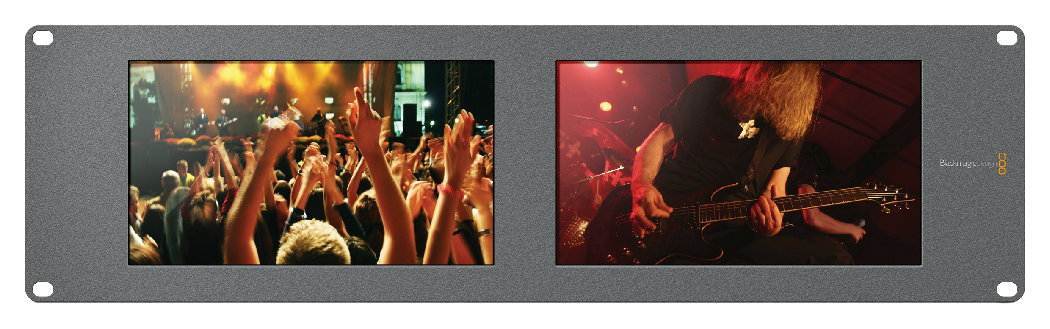

Blackmagic Design SmartView Duo

two high-quality, matte finish 8" screensIntroducing the Blackmagic SmartView Duo, forged from robust steel to stand tall as a testament to durability and functionality. Housing a pair of 8" matte-finish screens designed for pristine SDI monitoring, this rack-mountable wonder redefines versatility. Tailored to elevate broadcast, post-production, on-set monitoring, and portable applications, the SmartView Duo effortlessly switches between SD, HD, and 3G-SDI video formats, ensuring compatibility at every turn. Seamlessly fusing modern connectivity, it presents USB 2.0 and Ethernet inputs, underscoring its adaptability to contemporary workflows. The integrated tally feature further solidifies its position as a perfect companion.

Perfect SDI Monitoring

Rack mounted SmartView Duo and SmartView 4K, Blackmagic Design SmartView Duo

SDI monitoring anywhere you need itSmartView monitors are the perfect choice to add SDI monitoring anywhere you need it. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more! When you're working with live production switchers you can build a video wall of camera monitors in your control room and see all your sources. You can mix and match different SmartView models in a rack for a customized monitoring solution where you can view your images and choice of scope displays side by side!

Choose Your Monitor

SmartView Duo and SmartScope 4K, Blackmagic Design SmartView Duo

Monitoring anywhere you need itThere are 2 exciting SmartView models to choose from! SmartView Duo features two independent 8" displays in a 3 RU design that’s less than one inch deep. SmartScope Duo 4K adds independent waveform monitoring and you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase with audio level displays. Each SmartScope Duo 4K display is independent so you can monitor any combination of scope or picture view!

Perfect Monitoring

Broadcast euipment with SmartView Duo and SmartScope 4K rackmounted, Blackmagic Design SmartView Duo

high end broadcast monitoringSmartView monitors are ideal for high end broadcast monitoring because they feature high quality filtering and scaling, so you retain fine detail in the image. The fully digital design with high quality SDI inputs ensures precise color that’s easy to manage across multiple displays. SmartView includes ethernet so you can connect them to your network and centrally control all your monitors from a single computer using the SmartView software utility. SmartView also includes integrated tally that is fully compatible with many switchers or automation systems.

Accurate Waveform Monitoring

waveform display, Blackmagic Design SmartView Duo

broadcast accurate waveform monitoringWhen you need to analyze image quality more accurately than simply looking at the picture then use SmartScope Duo 4K’s built in waveform monitoring! You can view two independent sources simultaneously and conveniently switch between monitoring or scope views whenever you need! Choose from waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. SmartScope Duo 4K removes the need for separate expensive scopes!

Ultra Thin Design

front and rear view showing overall design, Blackmagic Design SmartView Duo

Lightweight and ultra thinSmartView monitors feature an elegant front panel that is designed to allow multiple SmartView Duo and SmartScope Duo 4K models to be mounted next to each other to create a beautiful wall of monitors that share the same appearance and width! Lightweight and ultra thin, SmartView is perfect for broadcast trucks and fly away kits! When you need to mount SmartView in the extreme top or bottom of an equipment rack, the units can be rotated upside down and the images will automatically flip to provide the optimum viewing angle!

Greater SDI Compatibility

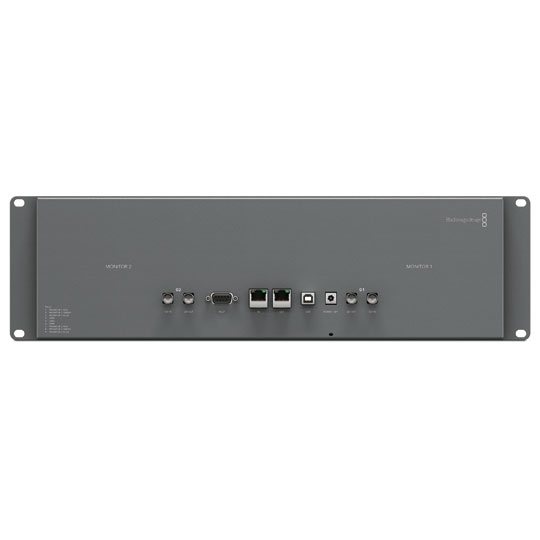

rear view showing available connections, Blackmagic Design SmartView Duo

SmartView supports SD, HD and 3G-SDI formatsSmartView has been designed for broadcast as well as post production and includes support for multiple SDI video standards, including SD, HD and 3G-SDI formats. They support new advanced video standards used in post production including 1080 progressive HD rates and even 2K over 3G-SDI. All video formats can be connected and changed at any time, because SmartView will automatically switch in less than a second to the new format!

Easy Adjustments

open laptop showing software, Blackmagic Design SmartView Duo

Remote AdjustmentsSmartView connects via ethernet and all monitors can be adjusted remotely from one location, making it easy to match monitors. The SmartView software utility for Mac OS and Windows lets you make changes even with a laptop and copy settings from one monitor to another. The software includes an identify function so you can find the monitor you’re adjusting even when you're working with lots of monitors! Because the adjustments are electronic, monitor color is stable over time. You can easily add new software updates for new video formats and waveform displays via USB.

Specifications
Screen Size 8"
Edition
Panel Type
Panel Coating
Panel Finish
Touchscreen
Backlight
Pitch Size
Curvature
Adaptive Frame-rate Technology N/A
NVIDIA Reflex No
HDCP No
Connectors
  • 2 x 10/100/1000
  • 2 x BNC In
  • 2 x BNC Out
  • 1 x D-Sub Mini
  • 1 x USB 2.0
Position Adjustment
Resolution 800x480
Aspect Ratio
Max. Refresh Rate
Response Time 15 ms
Brightness
Viewing Angle
Contrast Ratio/Dynamic Contrast Ratio 500:1
Color Gamut
Color Bit Depth
HDR Support No
Supported HDR Standards
Speakers No
Speaker Configuration
Web Camera No
Power Usage (Switched on) 20 W
VESA
3D Support No
Anti-Theft Features
Included Accessories
Monitor Colour Grey
Dimensions (with stand)
Dimensions (without stand) 482.6 x 133 x 35 mm (WxHxD)
Weight (with Stand)
Note
Additional Information
Scan Code LN52192
Model Number HDL-SMTVDUO2
GTIN 9338716004465
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details

Additional Notes:
12 months warranty- If the customer or business is UK based this warranty is extended to 24 months.
